Single Crank Pneumatic Power Press C-Frame
Price: |
US $ 6000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Press C-Frame |
Nominal Force: |
125kn |
Nominal Force Stroke: |
6mm |
Slide Stroke: |
160mm |
Max. Shut Height: |
350mm |
Slide Adjustment: |
80mm |
Bed Dimension: |
680X1150 |
Bottom Side Of Slide: |
540X680 |
Type: |
High-Speed Punching Machine |
Controlling Mode: |
Artificial |
Automatic Grade: |
Automatic |
Power Source: |
Mechanical Drive |
Precision: |
High Precision |
Product Description

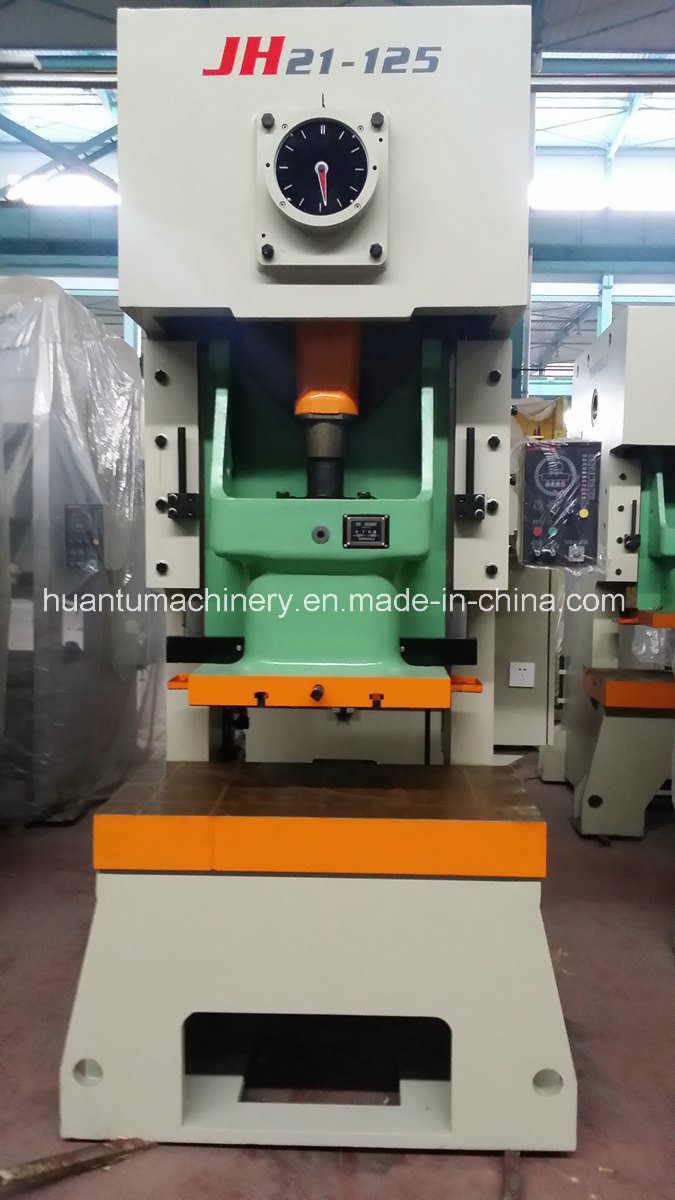

Single Crank Pneumatic Power Press C-Frame
Model JH21-125
Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing. II. Main Technical Specification
Technical specification Model Description | JH21-125 |
STANDARD |
Nominal force | KN | 125 |
Nominal force stroke | mm | 6 |
Slide stroke | mm | 160 |
SPM | Min-1 | 50 |
Max. shut height | mm | 350 |
Slide adjustment | mm | 80 |
Bed dimension(FB×LR) | mm | 680×1150 |
Bottom side of Slide (FB×LR) | mm | 540×680 |
Bolster thickness | mm | 140 |
Main motor power | kW | 11 |
IIIBrief introduction of basic configuration
| Description | Model | Note | Manufacture |
Mechanical part | Frame | Basic part | Welding with whole steel plate; ageing treatment when vibration; whole anneal treatment | HUANTU |
Bolster | Basic part | Cast HT200, anneal treatment | HUANTU |
Crank | Basic part | 45 forged steelwork,surface quenching treatment | HUANTU |
Flywheel | Basic part | Cast HT200, anneal treatment | HUANTU |
Dry clutch | Part | OMPI, Italy brand | HUANTU |
Slide | Basic part | Cast HT200, anneal treatment | HUANTU |
Worm wheel | Part | Copper castingZQSn5-5-5 | HUANTU |
Worm | Part | 45 steel,surface nitrogen treatment | HUANTU |
Tie-rod | Basic part | Cast QT500-7,normalizing treatment | HUANTU |
Ball screw | Basic part | Forged steelwork 45,surface nitrogen treatment | HUANTU |
ACB | Part | The inner round of cylinder adopts lapping tech. | Yangzhou, Jiangsu |
Electric part | Main motor | Y series | Wannan motor factory | Anhui |
Disc motor | YPE series | Beijing Fute disc motor co., ltd | Beijing |
PLC | CPM2AE-60CDR | OMRON products | Shanghai |
AC contactor | | Schneider is sole proprietorship of TE company of France,which products get CE certification | Shanghai |
| | | |
Button; Indicating lamp | | Schneider is sole proprietorship of TE company of France,which products get CE certification | Shanghai |
Cam controller | YLK1-08J | 8 proximity switches are installed in controller, which have reliable performance. | Yangzhou, Jiangsu |
Seal part | ACB oil seal | Escort, Taiwan | seal part from Escort, Taiwan | Taiwan |
Hydraulic overload | High pressure oil seal | Dichtomatik, Germany | Germany |
Other seal parts | | High quality made in China | |
Pneumatic component | Dual valve | MVS series | TACO, Japan, which has CE certification | Japan |
Pneumatic control 2-unit | Rc1/2 | AirTac, Taiwan | Ningbo |
Oil pipeline component | Electric grease lubrication system | Standard configuration | Sino-Japanese joint venture Yongjia Lube products, which pieces oil distributor is combined with many pieces. Installed test switch, which has block alarm. | Zhejiang |
