Silent Bracket Hydraulic Breaker Hammer for 20 Tons Excavator

Silent Bracket Hydraulic Breaker Hammer for 20 Tons Excavator
Price: US $ 4500-5500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: YLB1400
Product Name: Hydraulic Breaker Hammer
Chisel Diameter: 140mm
Oil Hose Diameter: 1inch
Warranty: 14months
Color: Yellow or as Per Customers' Request
Suitable Excavator: 20-26ton
Impact Rate: 350-500bpm
Chisel Type: Moil Point Type, Blunt, Wedge Type......
Required Oil Flow: 130-170L/Min
Impact Energy: 4200joule
Certification: TUV
Condition: New
Type: Silent Type
Application: Mountains, Mining, Crushing, Secondary Crushing

Product Description

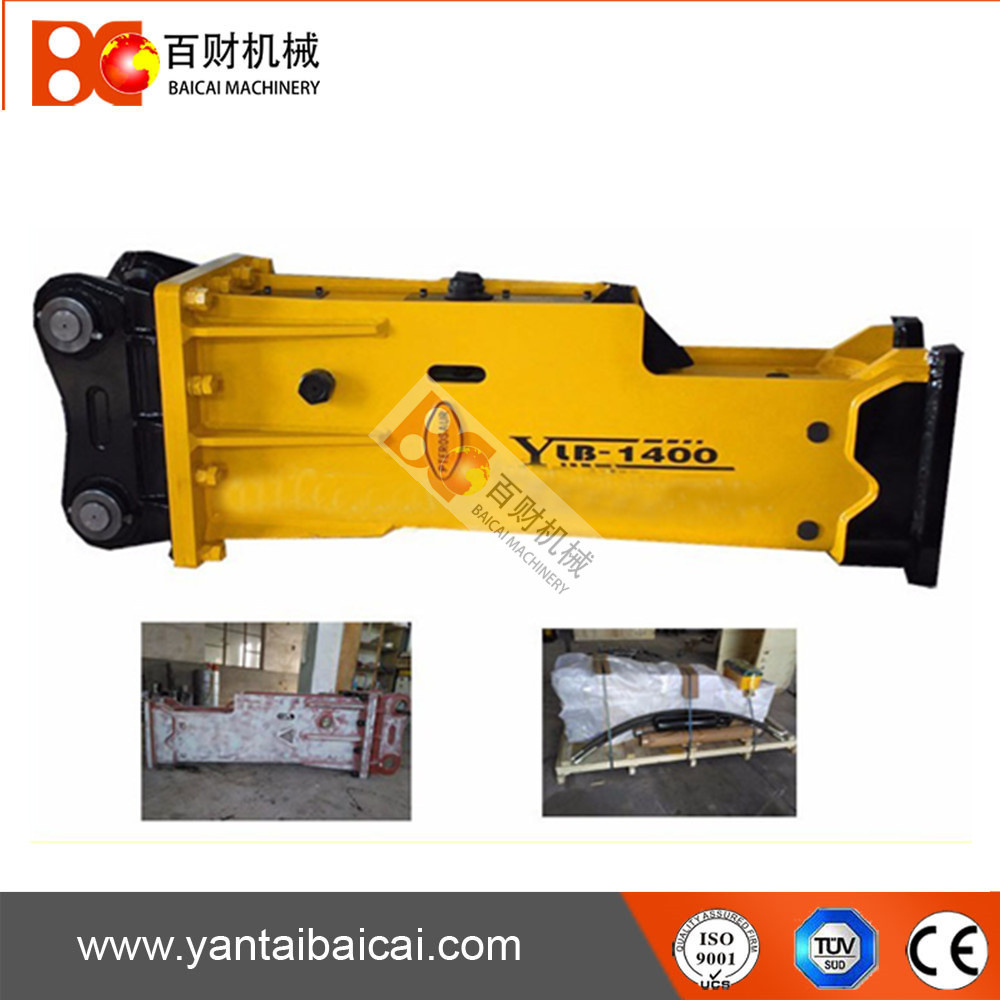

Silent Bracket Hydraulic Breaker Hammer for 20 Tons Excavator

Main Features

1. Use the highest strength material to get better wearing resistance.

2. Easy maintenance, prolonged life.

3. We have accumulated sales of 20,000 units, rich maintenance experience.

Advantages

1. Selected raw material - high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from South Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life

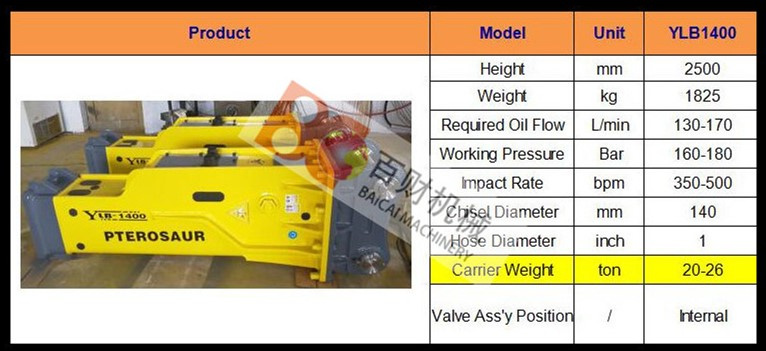

Specification





DescriptionModelSB30SB40SB43SB50SB70SB81SB121SB131
  YLB530YLB680YLB750YLB1000YLB1350YLB1400YLB1550YLB1650
Operating WeightKG1503004308601650182528503350
Optimum Oil FlowL/min25-5040-7050-9080-120100-150130-170170-220200-260
Impact Ratebpm550-1000500-800450-800350-700350-600350-500300-450250-400
Hose Diameterinch1/21/21/23/4115/45/4
Rod Diametermm536875100135 140155165
Applicable Carrierton2.5-4.54-76--911-1618-2120-2628-3530-40
Valve Ass'y Position/internalinternalinternalinternalinternalinternalinternalinternal

Standard Configurations:

* Chisels x 2 pcs

* Hydraulic Oil Hoses x 2 pcs

* Nitrogen Charging Kit with Pressure Gauge x 1 set

* Nitrogen Bottle x 1 pcs

* Tool Box with necessary maintenance tools x 1 set

* User's Manual x 1 pcs.

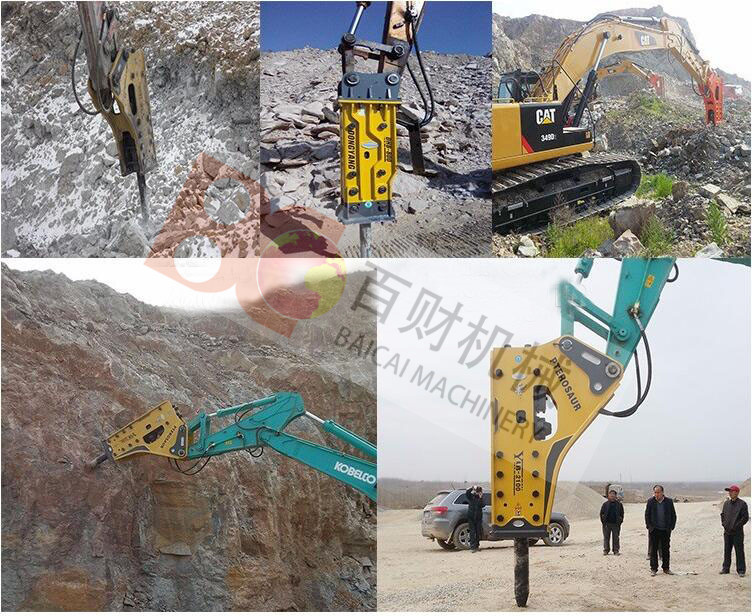

Application

1.Mining: Mountains, mining, crushing, secondary crushing

2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied

3.Railway, tunnel bridge, mountain down.

4.Highway: highway repair, cement pavement broken, foundation excavation.

5.Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.

6.Building: the old building demolition, reinforced concrete broken.

7.The ship hull in mussels , derusting

8.Other: ice breaking, breaking the permafrost and vibrating sand.




Our company

YANTAI
 BAICAI Hydraulic breakers, we have three types for your choice:  Side Type,Top Open type, and Box Silenced Type.
YANTAI BAICAI Hydraulic breakers Advantages:
1. High Strength and wear resistance steel plate adopted.
2. Suitable with all brands of excavators.
3. Strong compatibility.
4. Unique valve system. SOOSAN series Hydraulic Breakers adopt simple hydraulic circuit system, which use oil less and improve efficiency more.
5. First-class quality: Korean technology used to guarantee the quality.
6.Powerful stroke. Compared with other brand's products, SOOSAN series Hydraulic Breakers has more powerful stroke and reliable performances.


Exhibition





Package

1. Inner is stretch film
2. Outside is export wooden case
3. As per customer's request


FAQ

1. Are you a manufacturer?
Yes, our factory was established in 2004

2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 10 years.

3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.

4. How about delivery time?
3-7 working days from the date of receiving full payment.

5. After-sale Service
14 months warranty for hydraulic breakers. 24 hour prompt after-sales service to meet your demands.

6. OEM accept
Yes, we will provide high quality products with competitive price.

7. Impact Test
Every hydraulic breaker will do impact test before sale .

Contact Information

Please tell us your excavator or bachoe loader model,or the hydraulic breaker which you want then I will send you our quotation.

Contact: Nina

Mobile:+86 185 6112 8706

Website: www.yantaibaicai.com


Yantai Baicai Machinery Co., Ltd. Was established in 2004, We are a professional manufacturer for producing hydraulic breakers. Now our factory Mainly produces Soosan System hydraulic breakers, Furukawa system hydraulic breakers and spare parts in China. We supply kinds of Cylinder Assy' to home and abroad.

We sincerely hope that you can join us, we will be glad to support you on quality and technology.
