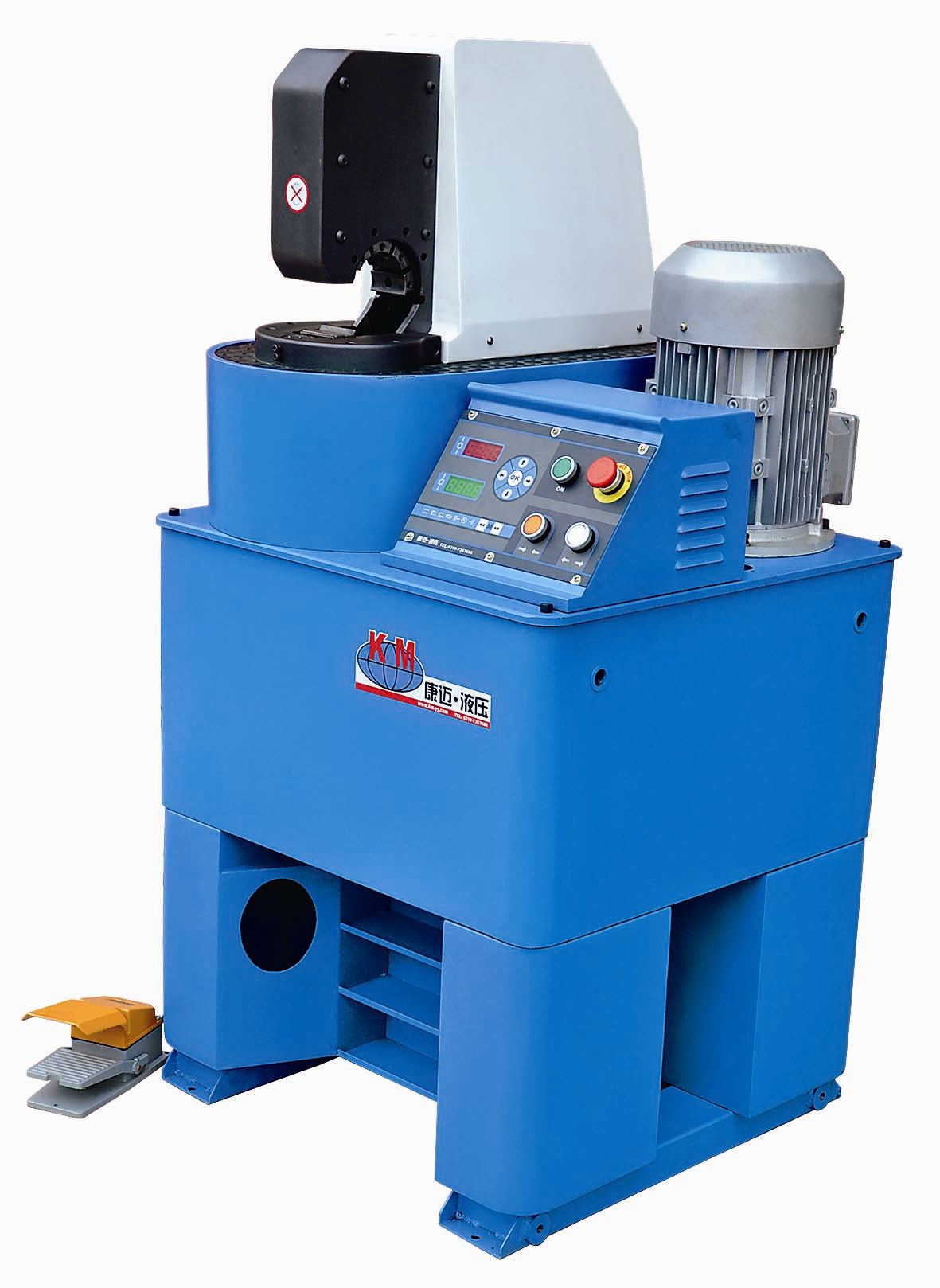

Technical Datas About Side Opening Hydraulic Hose Crimping Machine KM-85A-32
Model NO.
KM-85A-32
Crimper Rage
1/8 inch -1 1/4 inch IV
Standard voltage&motor
380V/4kW
Crimping Force
420 T
Side Open
52mm
Opening
above 15mm
Open Time
within 2S
Close Time
within 5S
Hydraulic Oil
Winter: YB-N32; Summer: YB-N46
No.of standard die sets
4 sets
Systematic Pressure
20Mpa
Machine size
660*630*970 (mm)
Weight without oil
460KG
Advantages Of KM-85A-32 Hydraulic Hose Crimping Machine 1. Side feeding hose, suitable for non-standard pipeline; 2. Numerical control, pricise and efficient; 3. Suitable for serial production.
Applications Of KM-85A-32 Hydraulic HoseCrimping Machine

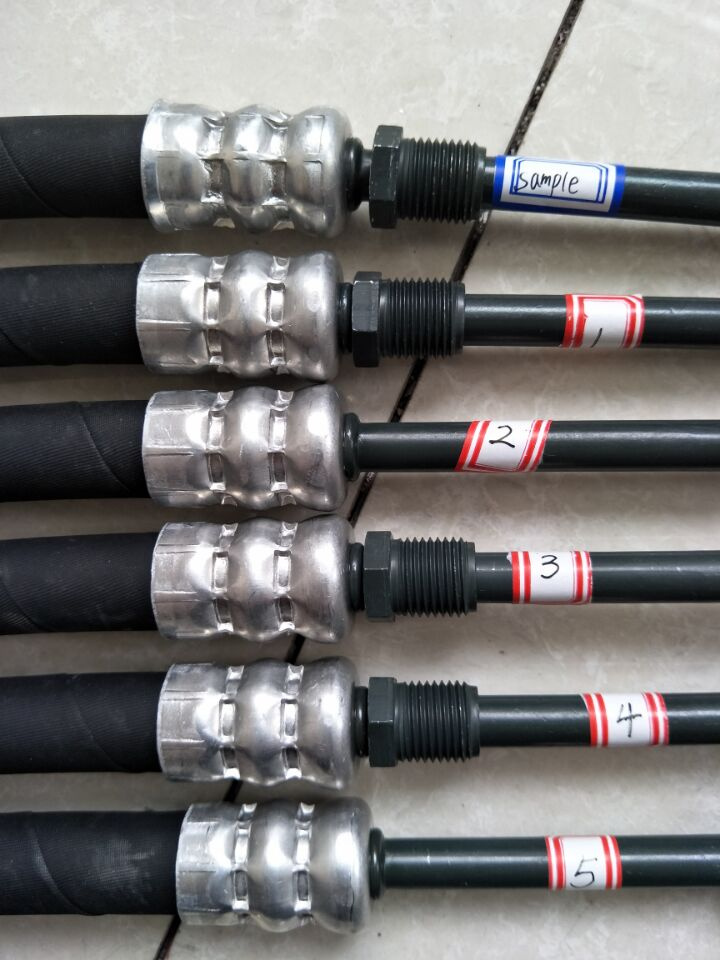

1.Best choice for crimping hydraulic hose with double flange fitting. 2. Suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 1 1/4" internal hose pipe. 3.Used rubber hose to transmit hydraulic pressure as there working power. 4.Used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.

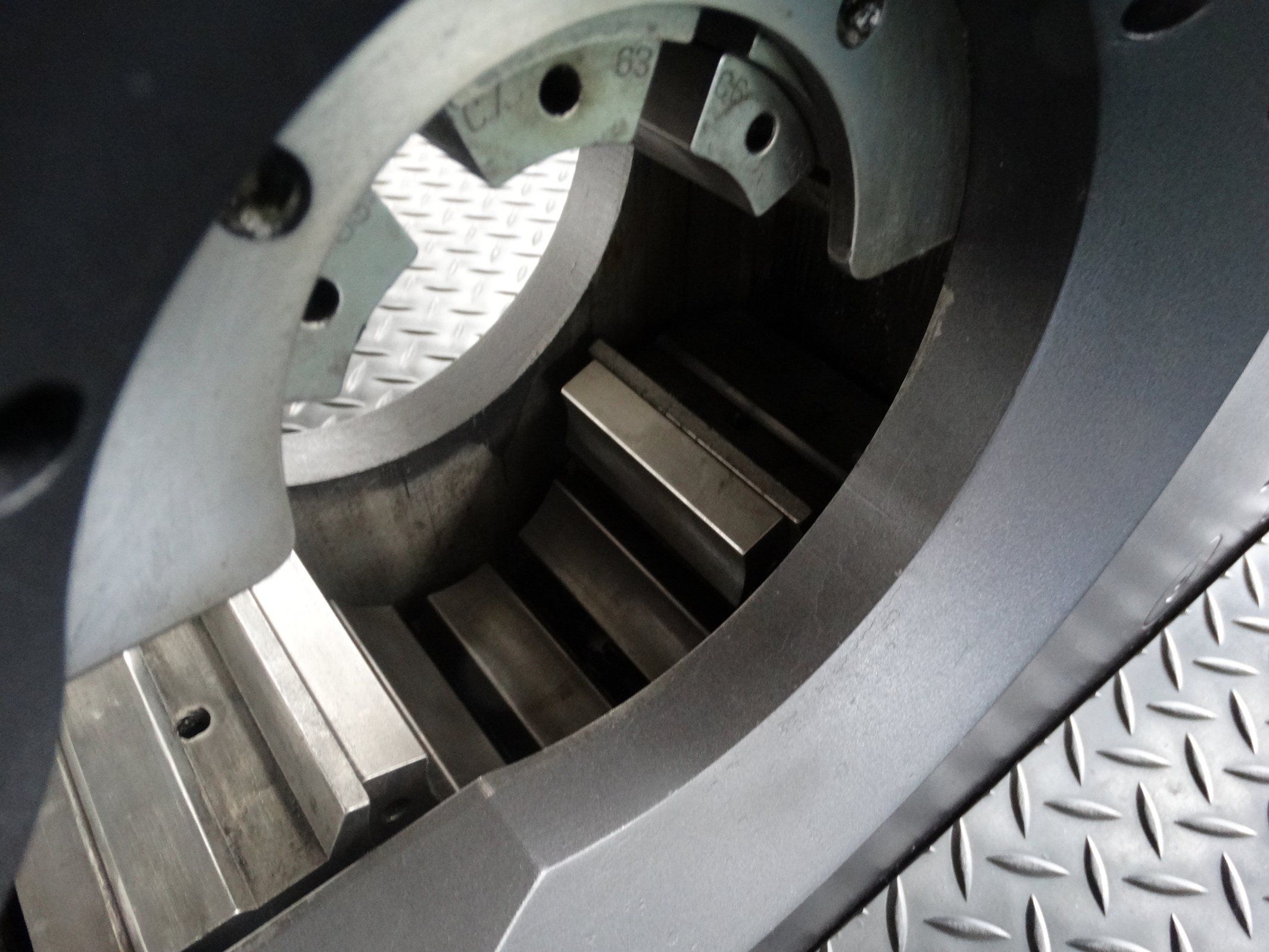

Hydraulic Hose Crimping Machine why not choose Kangmai? 1). Kangmai hose crimper has approved CE & ISO and audited by SGS. 2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below: (a)The machine head process by CNC machine, roundness and taper is within 0.1mm. (b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimp high pressure hydraulic hose, such as 4SP even 6SP. (c)The technical of machine head is forging not cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
Handan Kangmai Hydraulic Equipment Co., Ltd...Located in East of Wang Zhuang, Han (Dan) - Lin (Zhang) Expressway with covered an area of 50 acres. We invest RMB30 million and built mechanical processing workshop, finished debugging workshop, mold workshop, new product development center, warehouse, and spare parts warehouse. We can product 2000 sets machines in one year.
Our employees reach to 60 people now. Professional and technical personnel account more than 50%. With a number of technology patents, we passed the ISO9001 quality system certification, obtained the self import and export rights and the European Union CE certification. And now we are one of largest factory in hydraulic area.
The main products are hose crimping machine, hose cutting machine, hose skiving machine, hose coupling machine, marking machine, nut crimping machine, hose testing machine, and cleaning machine, nine series more than 50 models. We successively provided equipment for XAC, Jizhong energy, South car group, the Beijing Shanghai High-speed Rail, and Yiwan railway company. Meanwhile, our products are exported to the United Kingdom, Spain, Portugal, Ukraine, Russia, Mexico, Brazil, Argentina, USA, Saudi Arabia, Iran, Thailand, Indonesia and other more than 30 countries and regions, and get good response by domestic and foreign customers.
In the future, we will insist on innovation and development, make the product more and more precisely. Make Chinese Kangmai become the world's Kangmai.
