Ship Building Marine Mooring Stud Link Anchor Chain

Name: Ship Building Marine Mooring Stud Link Anchor Chain
Brand: tool-buy.com
SKU: 777778875
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	US $ 1000-1200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Zhenjiang Matchau Marine Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	Stud Link Anchor Chain
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Heat Resistant
Structure:	Welded Chain
Quality:	High
Usage:	Ship Docking
Color:	Solid Color
Surface:	Black Painted or Original
Item:	Stud Link Anchor Chain
Type:	Anchor Chain

Product Description

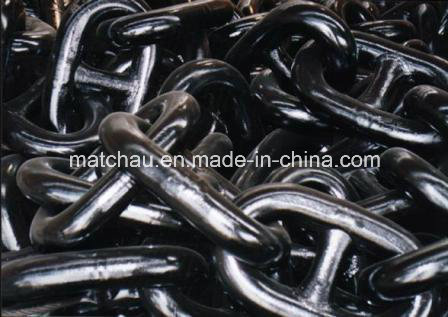

Stud Link Anchor Chain

Matchau is a leading supplier of marine anchors,anchor chains and accessories. As well as dealing in anchors and chains,we also have the capability to make fully certified,custom-built towing chains.Our advanced manufacturing facilities and highly-qualified workforce enable us to carry our repairs and modifications efficiently and responsibly.

Stud Anchor Chain

1. Standard length is 27.5m per piece,we also can produce and cut anchor chains or stud link chains.
2. Material: alloy steel, generally including CM390, CM490, CM690, or according to your requirement
3. Grade :U2&U3 stud link anchor chains, stud link chains and open link chain
4. Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement.
5. The tension breaking load conforms to National Standard.
6. Specification: 12.5-70mm, mainly adapt to vessels, fish net tenesmus, mine, municipal engineer, new established garden decoration
7. Production process: (1) material cutting (2) heating (3) curving (4) welding (5) thorn cutting (6) pressing (7) heating treatment (8) Blind bolts (9) polishing (10) painting or galvanized
8. We also make U3 and U2 studless link chain and open link chain from 12.5mm to 70mm.

Specification:

Link Diameter (mm)	Outside Length (mm)	Outside width (mm)	Proof Load (KN)			Break Load (KN)			Weight(kg/m)
Link Diameter (mm)	Outside Length (mm)	Outside width (mm)	AM1	AM2	AM3	AM1	AM2	AM3	Weight(kg/m)
11	66	40	36	52	72	52	72	102	2.65
12.5	75	45	46	66	92	66	92	132	3.42
14	84	50	58	82	116	82	116	165	4.29
16	96	58	76	107	150	107	150	216	5.61
17.5	105	63	89	127	179	127	179	256	6.71
19	114	68	105	150	211	150	211	301	7.91
20.5	123	74	123	175	244	175	244	349	9.20
22	132	78	140	200	280	200	280	401	10.60
24	144	86	167	237	332	237	332	478	12.61
26	156	94	194	278	389	278	389	556	14.80
28	168	101	225	321	449	321	449	642	17.17
30	180	108	257	368	514	368	514	735	19.71
32	192	115	291	417	583	417	583	833	22.43
34	204	122	328	468	655	468	655	937	25.32
36	216	130	366	523	732	523	732	1050	28.38
38	228	137	405	581	812	581	812	1190	31.62
40	240	144	448	640	896	640	896	1280	35.04
42	252	151	492	703	981	703	981	1400	38.63
44	264	158	538	769	1080	769	1080	1540	42.40
46	276	166	585	837	1170	837	1170	1680	46.34
48	288	173	635	908	1270	908	1270	1810	50.46
50	300	180	685	981	1370	981	1370	1960	54.75
52	312	187	739	1060	1480	1060	1480	2110	59.22
54	324	194	794	1140	1590	1140	1590	2270	63.86
56	336	202	851	1220	1710	1220	1710	2430	68.68
58	348	209	909	1290	1810	1290	1810	2600	73.67
60	360	216	969	1380	1940	1380	1940	2770	78.84
62	372	223	1030	1470	2060	1470	2060	2940	84.18
64	384	230	1100	1560	2190	1560	2190	3130	89.70
66	396	238	1160	1660	2312	1660	2312	3300	95.40
68	408	245	1230	1750	2450	1750	2450	3500	101.30
70	420	252	1290	1740	2580	1840	2580	3690	107.30
73	438	263	1390	1990	2790	1990	2790	3990	116.71
76	456	274	1500	2150	3010	2150	3010	4300	126.50
78	468	281	1580	2260	3160	2260	3160	4500	133.20
81	486	292	1690	2410	3380	2410	3380	4820	143.69
84	504	302	1800	2580	3610	2580	3610	5160	154.53
87	522	313	1920	2750	3850	2750	3850	5500	165.76
90	540	324	2050	2920	4090	2920	4090	5840	177.39
92	552	331	2130	3040	4260	3040	4260	6080	185.36
95	570	342	2260	3230	4510	3230	4510	6440	197.56
97	582	349	2340	3340	4680	3310	4680	6690	206.06
100	600	360	2470	3530	4940	3530	4940	7060	219.00
102	612	367	2560	3660	5120	3660	5120	7320	227.85
105	630	378	2700	3850	5390	3850	5390	7700	241.45
107	642	385	2790	3980	5570	3980	5570	7960	250.73
111	666	400	2970	4250	5940	4250	5940	8480	269.83
114	684	410	3110	4440	6230	4440	6230	8890	284.61
117	702	421	3260	4650	6510	4650	6510	9300	299.79
120	720	432	3400	4850	6810	4850	6810	9720	315.36
122	732	439	3500	5000	7000	5000	7000	9990	325.96
124	744	446	3600	5140	7200	5140	7200	10280	336.73
127	762	457	3750	5350	7490	5350	7490	10710	353.23
130	780	468	3900	5570	7800	5570	7800	11140	370.11
132	792	475	4000	5720	8000	5720	8000	11420	381.59
137	822	493	4260	6080	8510	6080	8510	12160	411.04
142	852	511	4520	6450	9030	6450	9030	12910	441.59
147	882	529	4790	6840	9560	6840	9560	13660	473.24
152	912	547	5050	7220	10100	7220	10100	14430	505.98
157	942	565	5320	7660	10640	7660	10640	15200	539.81
162	972	583	5590	7990	11180	7990	11180	15980	574.74

If you have any demands and questions,please contact with me ,we have good quality and competitive price.

Zhenjiang Matchau Marine Equipment Co., Ltd is a both manufacturer and export company. We are specialized in producing proof load testing water filled weight bags and marine foam life jackets and inflatable life jacket. Besides, we've also obtained excellent sales performance and rich sales experience of foreign trade business in marine life saving products, fire-fighting equipment, dock rubber products, mooring products, deck machinery with accessories, navigation, communication and other related marine products.

MATCHAU water weight bags have various kinds for choose:

Lifting equipment testing:

Our range of MATCHAU water-filled proof load bags - with capacities from 0.25 ton to 50 tonnes - provides an easy, safe and highly cost effective means of load-testing all kinds of lifting equipment.

Water-filled bags offer a significant advantage over alternative methods in that fluid can be applied gradually and precisely. This means that potential problems can be identified long before maximum load is reached.

Proof Load testing

There have been several serious accidents during proof load testing involving Sub Standard Equipment which was simply not designed for the physical demands of proof load testing.

The use of MATCHAU water filled proof load bags for proof load testing is recognised world wide as the most effective and safest solution.

Lifesaving equipment testing:

At MATCHAU we've developed systems specifically to apply a test load to life saving appliances. MATCHAU Lifeboat test bags and proof load bags provide controlled loading and unloading with minimal handling, resulting in minimum downtime.

Lifeboat testing

Our lifeboat system provides a safe, fast, simple and accurate way of proof load testing, with no need for personnel to be in the craft. Loading is achieved with a control manifold and pumping system, and measured by calibrated flowmeter.

Davit testing

For static and dynamic davit testing, MATCHAU water filled proof load bags allow gradual filling so you can spot potential problems before you get into trouble. Water provides 98% of the weight at full load - so empty bags are light and easy to handle, transport and store.

Also we have load measurement for testing, and it is different capacity making accoring to customer's requirements.

With extensive expertise and experience in load and strain measurement, we offer a comprehensive range of products for sale.

(1)Load Cell Shackles and Load Links up to 500 tonne

(2)Calibrated Flowmeters - alternative mechanical load measurement

(3)Running line tensionmeters - constant load reading on running lines

Our products have been approved by classification societies and government administration, also have got certifications from CCS, GL, BV, DNV, LR, USCG, KR, RINA, NK, EC, etc...

With the concept of customer first, we are committed to providing our customers with urgent response, advanced technology, reasonable price with reliable quality products and perfect after-sales services.

As a professional marine products supplier, Matchau Marine is your reliable partner and you' Ll obtain one-stop solution here!
