Shear Machine QC11k Series Hydraulic Brake Type CNC Shearing

Name: Shear Machine QC11k Series Hydraulic Brake Type CNC Shearing
Brand: tool-buy.com
SKU: 722951102
Availability: InStock
Rating: 4.3 (31 reviews)

Price:	US $ 1-100000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Tengzhou Luzhong Machine Tool Co., Ltd.

Showroom Product Company Profile

Prod Model:	QC11K
Machine:	Shearing
Control:	CNC Control
Model:	QC11k
Color:	Optional
Voltage:	Optional
CNC Controller:	Customrised
Precision:	High Preciosion
Warranty:	12 Months
Product Name:	Shear Machine QC11k Series Hydraulic Brake Type CN
Payment:	Negotiable

Product Description

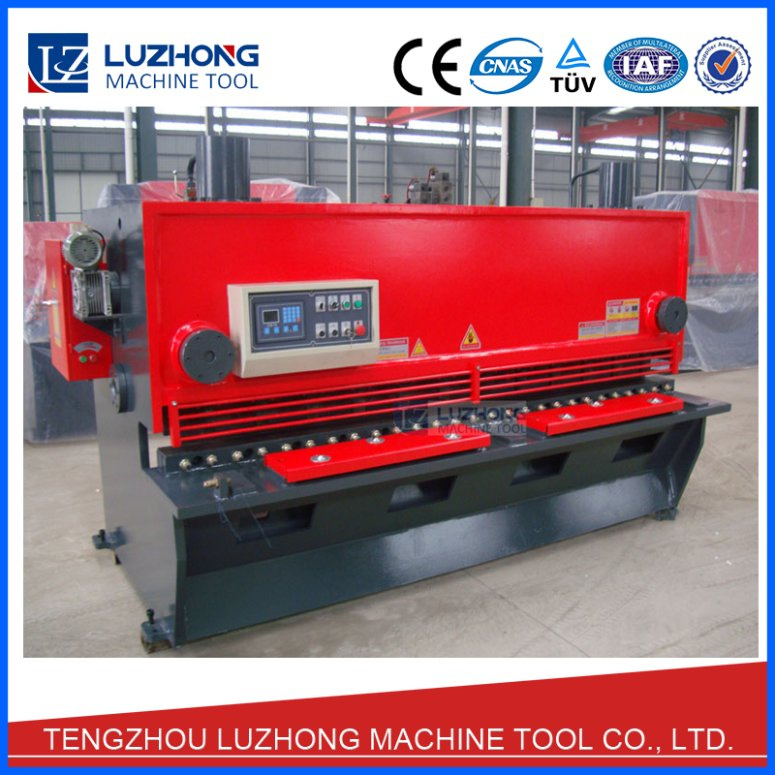

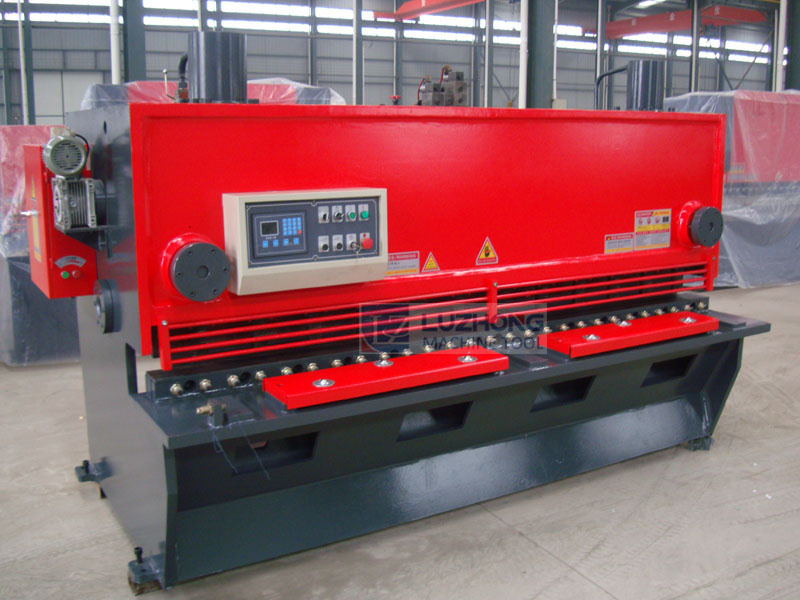

Shear Machine QC11k Series Hydraulic Brake Type CNC Shearing

The main performance characteristics:
1. The main machine adopts the structure of series QC12Y machine, and assembles simple numerical control system (optional);
2.The CNC display devices of the back gauge and single-track positioning clearance and
automatical shearing times are on the front of the machine.
3.The back gauge equipped with encoder and simple CNC system, makes the back gauge display more accurate and the shearing further precision. (optional) .
Product main technical parameters:

Specifications	Maximum shear plate thickness (mm)	Maximum cutting width (mm)	shear angle (°)	Shear plate strength KN/cm	Number of travel (/min)	Range of rear gear (mm)	Motor (kw)
QC12K-4×2500	4	2500	1°30´	≤450	14	20 ~ 500	5.5
QC12K-4×3200	4	3200	1°30´	≤450	12	20 ~ 500	5.5
QC12K-4×4000	4	4000	1°30´	≤450	10	20 ~ 600	5.5
QC12K-4×6000	4	6000	1°30´	≤450	5	20 ~ 800	7.5
QC12K-6×2500	6	2500	1°30´	≤450	14	20 ~ 500	7.5
QC12K-6×3200	6	3200	1°30´	≤450	12	20 ~ 500	7.5
QC12K-6×4000	6	4000	1°30´	≤450	9	20 ~ 600	7.5
QC12K-6×5000	6	5000	1°30´	≤450	8	20 ~ 600	7.5
QC12K-6×6000	6	6000	1°30´	≤450	5	20 ~ 800	11
QC12K-8×2500	8	2500	1°30´	≤450	11	20 ~ 500	7.5
QC12K-8×3200	8	3200	1°30´	≤450	8	20 ~ 500	7.5
QC12K-8×4000	8	4000	1°30´	≤450	8	20 ~ 600	7.5
QC12K-8×5000	8	5000	1°30´	≤450	8	20 ~ 600	11
QC12K-8×6000	8	6000	1°30´	≤450	8	20 ~ 800	11
QC12K-10×2500	10	2500	1°30´	≤450	10	20 ~ 500	11
QC12K-10×3200	10	3200	1°30´	≤450	10	20 ~ 500	11
QC12K-10×4000	10	4000	1°30´	≤450	10	20 ~ 600	11
QC12K-10×6000	10	6000	1°30´	≤450	10	20 ~ 800	15
QC12K-12×2500	12	2500	2°	≤450	12	20 ~ 600	15
QC12K-12×3200	12	3200	2°	≤450	10	20 ~ 600	15
QC12K-12×4000	12	4000	2°	≤450	10	20 ~ 600	15
QC12K-12×5000	12	5000	2°	≤450	6	20 ~ 600	18.5
QC12K-12×6000	12	8000	2°	≤450	5	20~ 1000	18.5
QC12K-16×2500	16	2500	2°30´	≤450	10	20 ~ 600	18.5
QC12K-16×3200	16	3200	2°30´	≤450	10	20 ~ 600	18.5
QC12K-16×4000	16	4000	2°30´	≤450	10	20 ~ 800	18.5
QC12K-16×5000	16	5000	2°	≤450	6	20 ~ 800	18.5
QC12K-16×6000	16	6000	2°	≤450	5	20~ 1000	22
QC12K-20×2500	20	2500	3°	≤450	8	20 ~ 800	22
QC12K-20×3200	20	3200	3°	≤450	8	20 ~ 800	22
QC12K-20×4000	20	4000	3°	≤450	5	20~ 1000	22
QC12K-20×6000	20	6000	3°	≤450	4	20~ 1000	22
QC12K-25×2500	25	2500	3°	≤450	8	20 ~ 800	37
QC12K-25×3200	25	3200	3°	≤450	5	20 ~ 800	37
QC12K-30×2500	30	2500	3°	≤450	4	20~ 1000	37
QC12K-30×3200	30	3200	3°30	≤450	4	20~ 1000	45
QC12K-40×2500	40	2500	4°	≤450	3	20~ 1000	75
QC12K-40×3200	40	3200	4°	≤450	3	20~ 1000	90

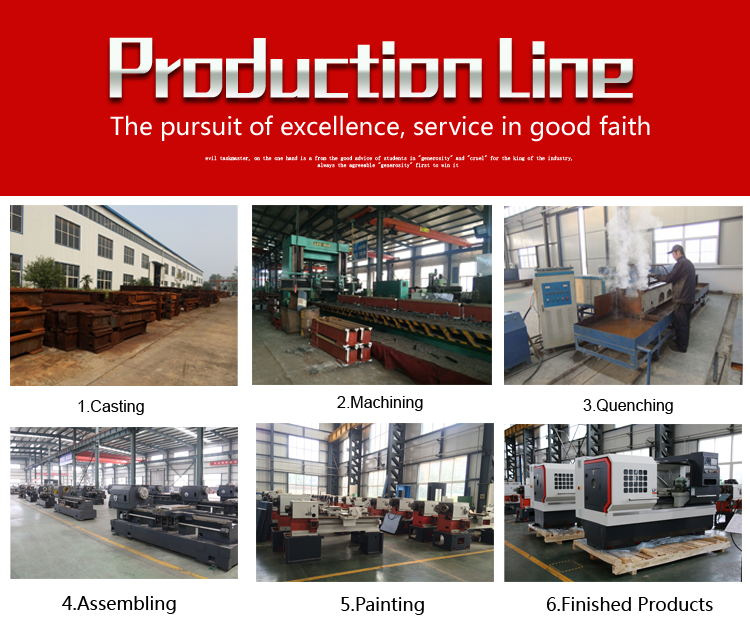

Product Line:

Shear Machine QC11k Series Hydraulic Brake Type CNC Shearing
All of our machines are subject to strict quality control.Especially in the production process.

The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:

1.High strength Casting making .

2.Processing production.

3.High precision quenching process.

4.Assembling process.

5.Spray paint process.

6.And also the finished product come out .

Company Information:

Certifications:

FAQ :

FAQ:

1.Why choose us ?

We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.

We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)

We go the full 24-hour performance and accuracy test before shipment.

2.What machines can be available in your factory?

We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .

3.What certifications you have ?

We have certifications like:CE certifications

CO certifications

ISO certifications and also CIQ certifications and so on .

4.What payment terms you can accept?

Mostly using TT.

But LC also available

5.What services you can offer ?

Warranty for one year .

English manual and video for machine using and maintenance.

OEM,ODM is available in our factory.

24 hours online technical service

Engineers available to service machinery overseas

Free customers training in our plant.

Contact us :

Founded in 1992, We, Tengzhou Luzhong Machine Tool Co., Ltd., is a large enterprises with glorious chievement and long history, covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.

We have been providing all kind of CNC milling machine, vertical machining center, lathe machines, drilling machines and others CNC mechanical equipment, products, to all sectors of the national economy for more than 20 years. And our machines are very popular overseas, and they are exported to more than 50 countries and zones, and our machines are loved and welcomed by customers.

In the deepening of economic reform, in accordance with the requirements of the overall planning, we enhance our traditional manufacturing industry, so we build the Shandong CNC Machine Tool Production Base in Jiyang city, Shandong Province. In this production base, we produce vertical machining center, CNC lathe, CNC milling, assembly production line, machine tools and so on, it will be the world's first-class modern manufacturing enterprises.

In order to strengthen our own technology, research and development advantages, we, Tengzhou Luzhong Machine Tool Co., Ltd, founded our design company -Luzhong Design Co., Ltd in 2004, which specialize in the design of CNC machine tools.

Our company formed a good win-win relationship with mechanical and electrical companies in provinces, complete sets of companies and foreign agents. Not only in the country Company formed a mature sales network not only in the country, but also our products are exported to South America, Africa, the Middle East, Southeast Asia and other countries, and are trusted and praised by vast number of users. Our company focuses on strict and effective management, product quality and service is our eternal pursuit of the theme. Our company will always be the spirit of "the pursuit of excellence, sincere service" purposes, and strive to provide users with high-quality products and fast, thoughtful after-sales service.

"Regard the quality as life, undertake the heavy responsibility ", with your support, we will get big progress. Let us join hands to create a better future!

'The pursuit of excellence in service'
