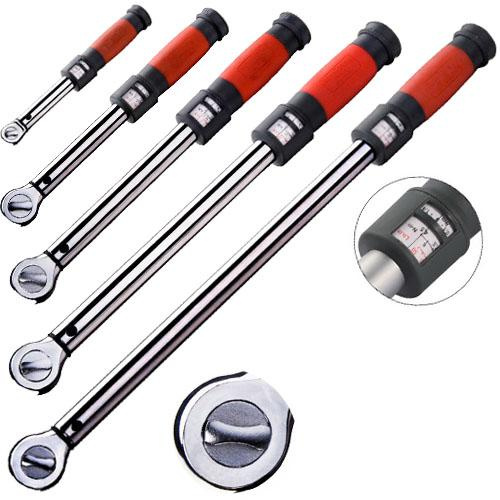

Setting Torque Wrench, Window Scale *There are no dials to watch:wrench clicks and momentarily release when set torque is reached,resulting in fast and efficient operation. *The 45-tooth reversible ratchet head results in both clockwise and counter clockwise,fine increment operation. *+/-4% accuracy in clockwise direction exceeds specifications. *Ergonomic soft TPR grips are comfortable to use. *Lock Knob secures selected torque from accidental change. *Precision,easy-to-read dual Metric and English scales are easy to read and set. *The trigger mechanism is mounted on ball bearings resulting in more accurate and consistent release. Standards: DIN / ISO 6789,ASME B107.14M Metric Unit
Model No.
Drive
Torque Range
Length
Width
Weight
N.m
Lb.ft
mm
mm
kg
CM12
1/4"
2.5-12
20-105 *
275
38
0.54
CM20
1/4"
4.0-20
30-180 *
275
38
0.54
CM30
3/8"
4.5-30
50-250 *
310
38
0.68
CM60
3/8"
10-60
9-45
360
38
0.82
CM61
1/2"
10-60
9-45
360
38
0.82
CM125
3/8"
25-125
20-90
420
38
0.90
CM126
1/2"
25-125
20-90
420
38
0.90
CM200
1/2"
40-200
30-150
460
40
1.02
CM335
1/2"
65-335
50-250
520
40
1.16
CM336
3/4"
65-335
50-250
520
40
1.20
CM337
1/2"
65-335
50-250
700
40
1.95
CM338
3/4"
65-335
50-250
700
40
2.00
CM500
3/4"
100-500
80-400
840
60
4.04
CM800
3/4"
160-800
120-600
1040
60
4.93
CM801
1"
160-800
120-600
1040
60
4.93
CM1000
3/4"
200-1000
150-750
1040
60
4.93
CM1001
1"
200-1000
150-750
1040
60
4.93
CM1500
1"
300-1500
200-1000
1250
72
8.00
CM2000
1"
400-2000
300-1500
1250
72
8.00
CM3000
1"
600-3000
400-2000
1250
72
9.50
*Unit is Lb.in
English Unit
Model No.
Drive
Torque Range
Length
Width
Weight
Lb.ft
N.m
mm
mm
kg
CE020
1/4"
40-200 *
4.0-22
275
38
0.54
CE025
3/8"
50-250 *
60-280 *
310
38
0.68
CE100
3/8"
20-100
25-135
420
38
0.90
CE101
1/2"
20-100
25-135
420
38
0.90
CE150
1/2"
30-150
40-200
460
40
1.02
CE250
1/2"
50-250
70-340
520
40
1.16
CE251
3/4"
50-250
70-340
520
40
1.20
CE252
1/2"
50-250
70-340
700
40
1.95
CE253
3/4"
50-250
70-340
700
40
2.00
CE600
3/4"
100-600
150-800
1040
60
4.93
CE601
1"
100-600
150-800
1040
60
4.93
* English unit is Lb.in,Metric unit is dN.m
