Separate type Metal Pneumatic Air Power Forging Hammer C41-16KG/20KG/25KG/40KG

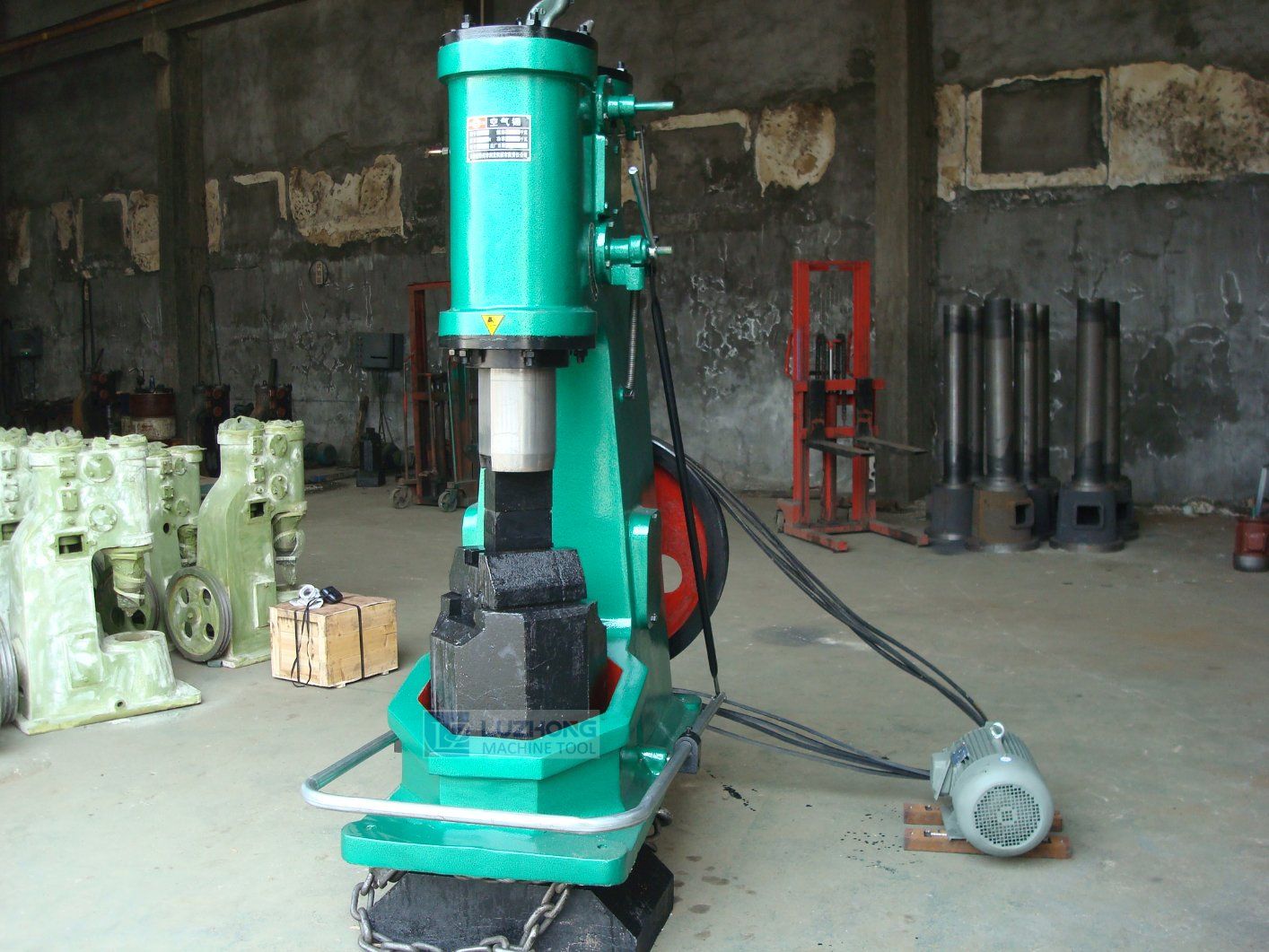

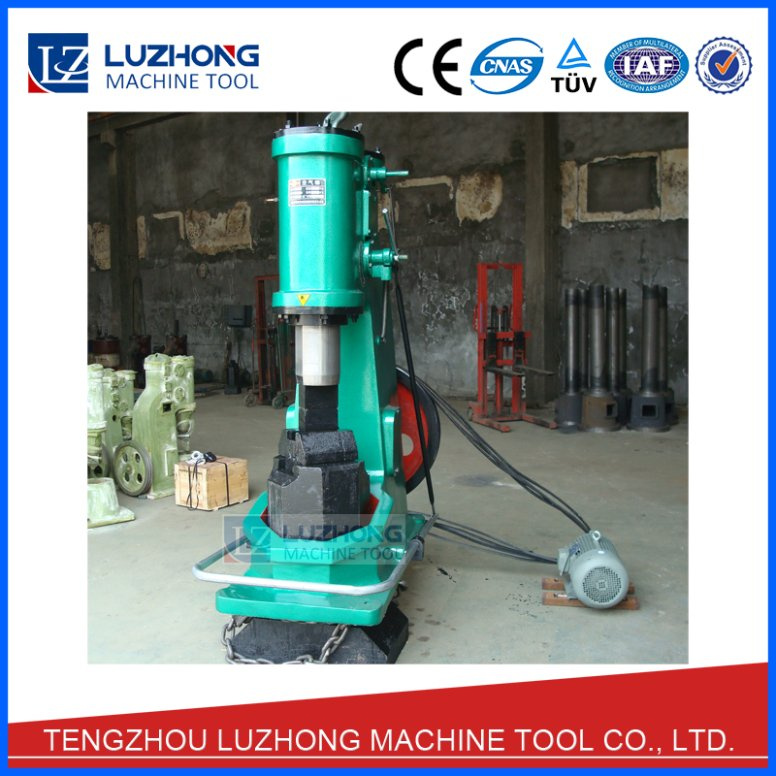

Product picture:
The main performance characteristics: 1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
2.The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3.Simple mechanism ,Is not easy to damage
Application: Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging. Product main technical specification:
Parameter / project / model
Units
C41-40kg
C41-25kg
C41-20kg
C41-16kg
Blow energy
K j
0.53
0.27
0.22
0.18
Height of working area
mm
245
240
200
180
Number of blows
min-1
245
250
255
258
Anvil block size
mm
120x50
100x50
90x50
70x40
Malleable square steel length
mm
52x52
40x40
30x30
20x20
Malleable circular steel length
mm
¢68
¢45
¢35
¢22
Match use of power
K w
4
Single-phase 3/220V, Three-phase 2.2/380V
Single-phase 2.2/220, Three-phase 2.2/380
Single-phase1.5/220, Three-phase 1.5/380
Motor speed
r. p. m
1440
1440
1440
1440
Anvil sitting of weight
kg
400
200
190
180
Gross weight
kg
1350
850
500
240
Appearance size
mm
1080x600x1430
950x550x1260
820x460x1110
585x390x950
