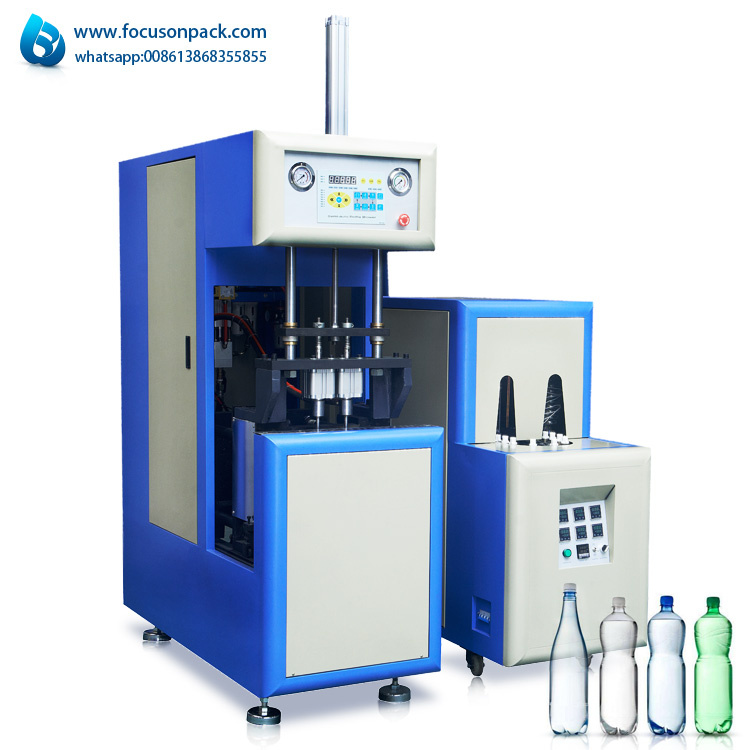

Semi Pet Blowing Machine Pet Bottle Mould

Semi Pet Blowing Machine Pet Bottle Mould
Price: US $ 10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: SMB-2-880S
Output: 1800b/Hr
Cavity: 4
Max Length: 360mm
Max Diameter: 100mm
Name: Bottle Rinser Water Bottle Blowing Machine
Raw Material: PET
Making Method Of Parison: Stretch Blow
Automation: Non-Automatic
Computerized: Non-Computerized
Certification: ISO9001:2008

Product Description

Bottle Rinser Water Bottle Blowing Machine

Bottle Rinser Water Bottle Blowing Machine Application
This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples.

How Bottle Rinser Water Bottle Blowing Machine Works

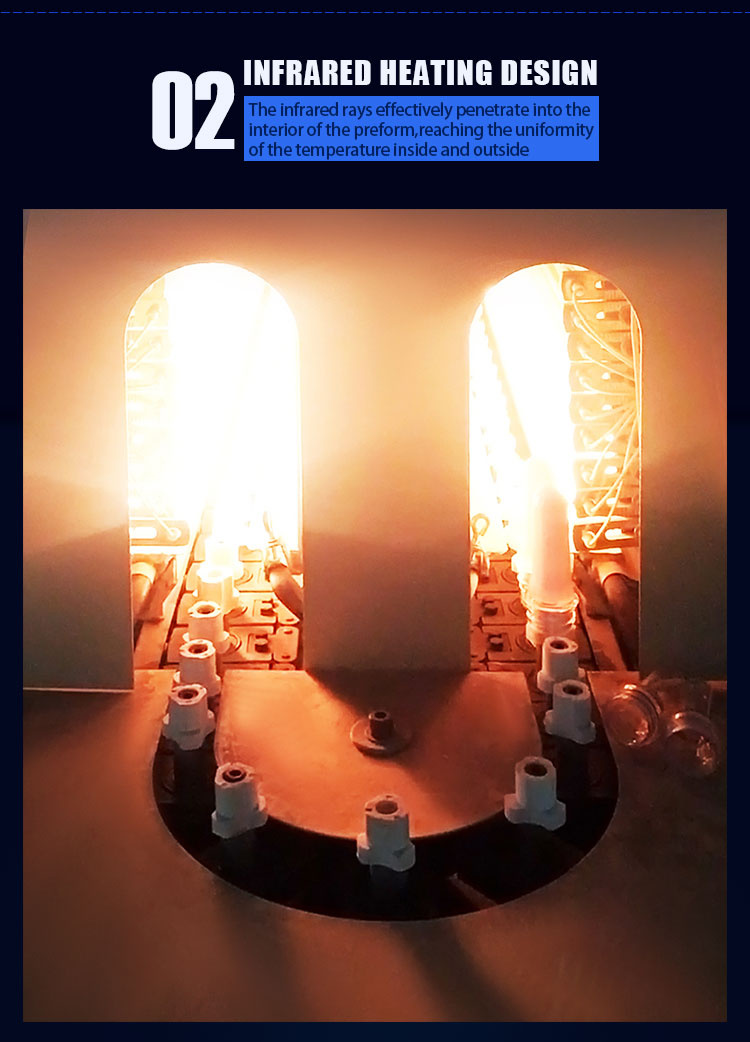

The Blow Molding system does not require highly trained operators to produce consistent quality bottles. The bottle making process starts by loading preforms into the preheater. The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.
When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.

Bottle Rinser Water Bottle Blowing Machine Features

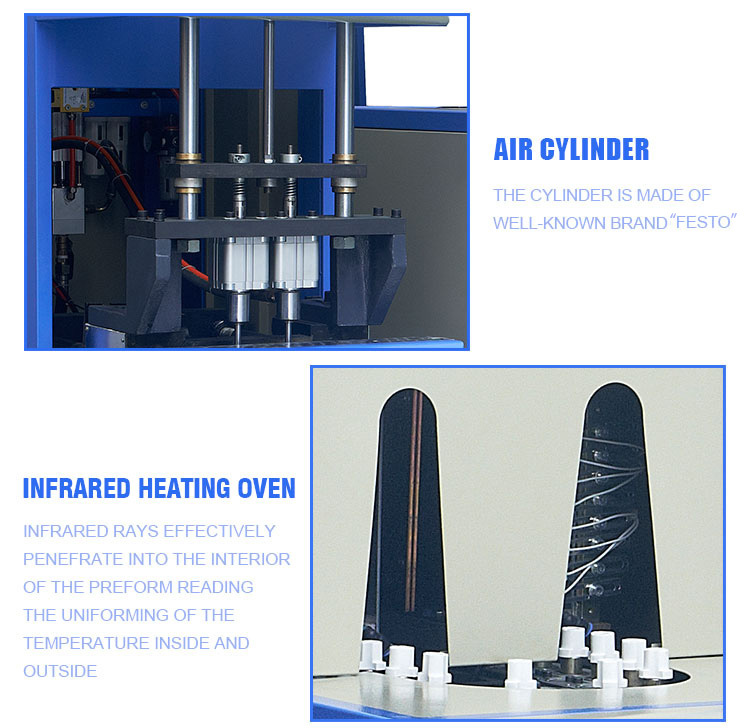

1.Original FESTO air cylinder.
2.Minimize your initial investment by starting small.
3.Add additional systems economically as your business grows.
4.Bottles of different sizes can be produced simultaneously to meet your exact requirements.
5.Change over from one size to another can be completed simply and quickly.
6.The tooling costs (molds) are low since the design of the system is simple.
7.Systems can be dedicated to produce particular bottle sizes.
8.A short operator-training period due to the simplicity of the design.
9.Maintenance costs are kept to a minimum and highly-trained personnel are not required.

Bottle Rinser Water Bottle Blowing Machine Specifications:
Model No900BPH1800BPH
MaterialPET/PP/PE/PCPET/PP/PE/PC
Volume0.2-2.5L(2-cavity)/3-6L(1-cavity)0.05-2.5L(4-cavity)3-6L(1-cavity)
Output900/500Bottles/Hr1800/1000Bottles/Hr
Bottle Height(Max)360mm360mm
Bottle Diameter(Max)180mm180mm
Max Mold Plate Dimension420x500mm(LxH)420×500mm
Max Mold Thickness160-240mm160-240mm
Clamping Force180KN180KN

Mold Opening Stroke200mm(Adjustable)200mm(Adjustable)
Power Consumption12kw24kw
Electric Supply220/380V/50-60HZ220/380V/50-60HZ
Blow Molder Dimension1.66x0.74x2.2Mtr(LxWxH)1.66×0.74×2.2Mtr(LxWxH)
Blow Molder weight700kgs700kgs
Preheater Dimension1.46x0.71x1.58Mtr(LxWxH)1.77×0.72×1.58Mtr(LxWxH)
Preheater Weight300kgs500kgs
Bottle Rinser Water Bottle Blowing Machine Show





We are one of leading packaging machinery company in China to help our customers reach their production goals.

Designing and building purified water & mineral water treatment, Liquid filling machines, paste filling machine, linear filling machine, rotary filling machine, e liquid filling machine, corrosion resistant filling machine, rotary capping machines, linear capping machine, adhesive labeling machines, shrink labeling machine, inkjet coder, sleeve shrink wrapping machine, stretch blow molding machine.

Packaging machines to deliver complete turn-key packaging lines which are widely used for cosmetic creams such as shampoo, lotion, liquid soap, hair conditioner, essential oil, food such as edible oil, water, syrup, sauce, chemical such as alcohol, solvent, corrosive liquid and drink water bottling plant, juice plant and yoghurt plant. Our equipments are engineered for durability and ease to use.

Welcoming distributors and endusers around the world to cooperate with us, we look forward to receiving your detailed inquiries and get mutual benefit cooperation in the near future.
