Self Locking Form Snap Hooks

Self Locking Form Snap Hooks
Price: US $ 1.98-2.22/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Fall Protection Scaffold hook G9120
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Finish: Zinc Plated, Chrome Plated, Dacrometing
Gate Open: 52mm
Length: 216mm
Width: 113mm
Technology: Forged
Material: Metal
Type: Hook
Usage: Personal Protective Equipment
Brand: Fosun
Color: White/Yellow Zinc Plating

Product Description

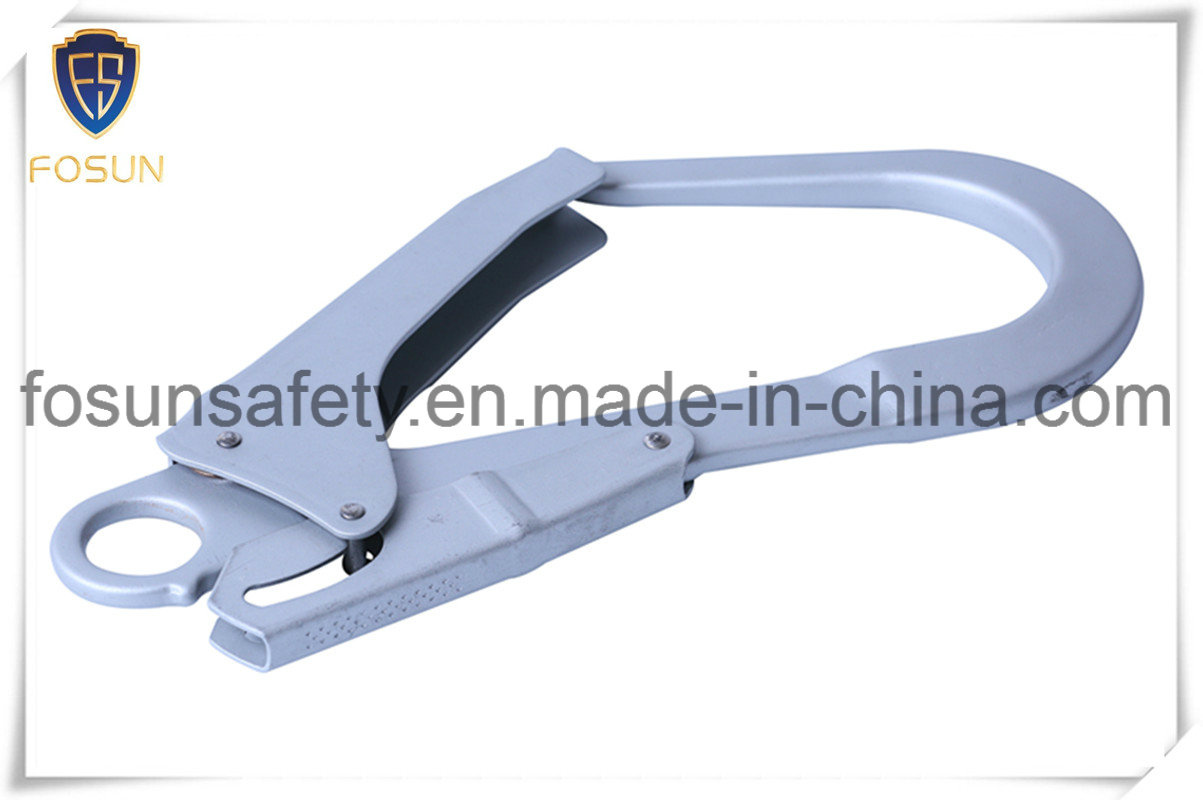

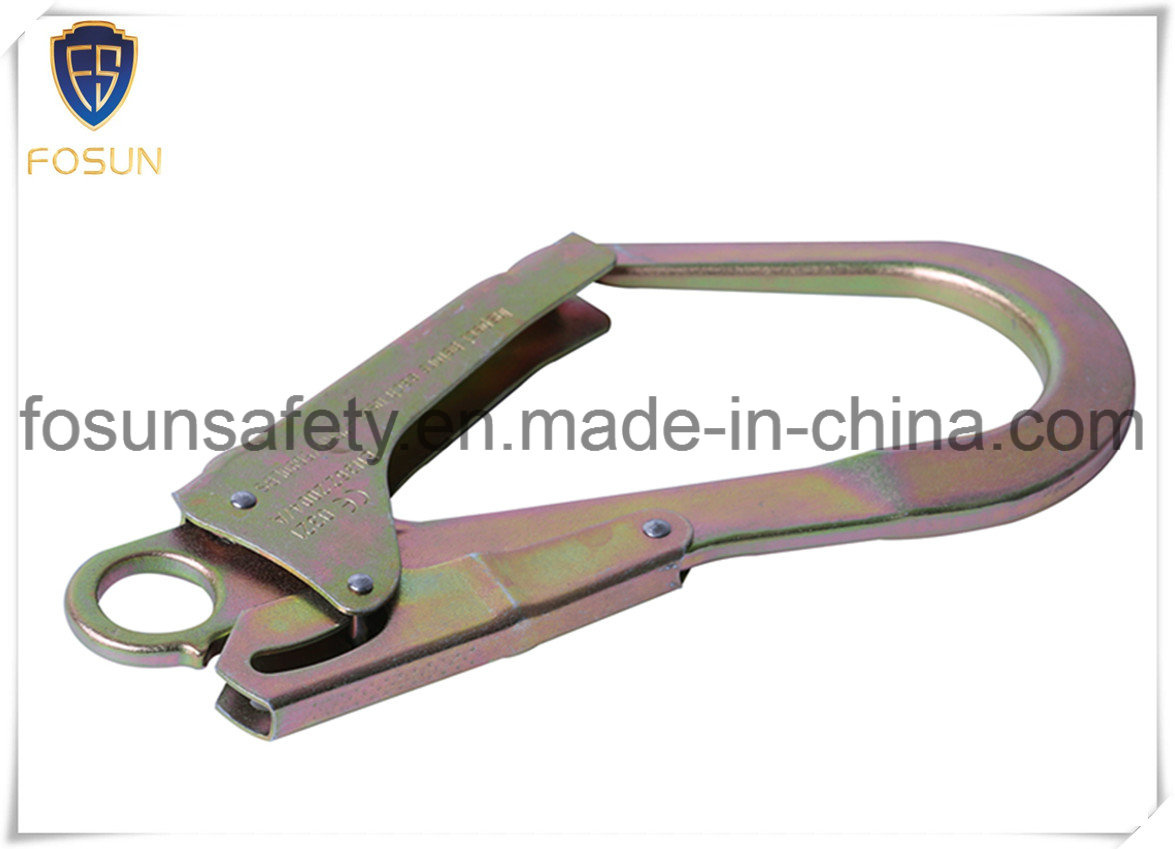

Hot Sale! Yellow Zinc Plating Snap Hooks

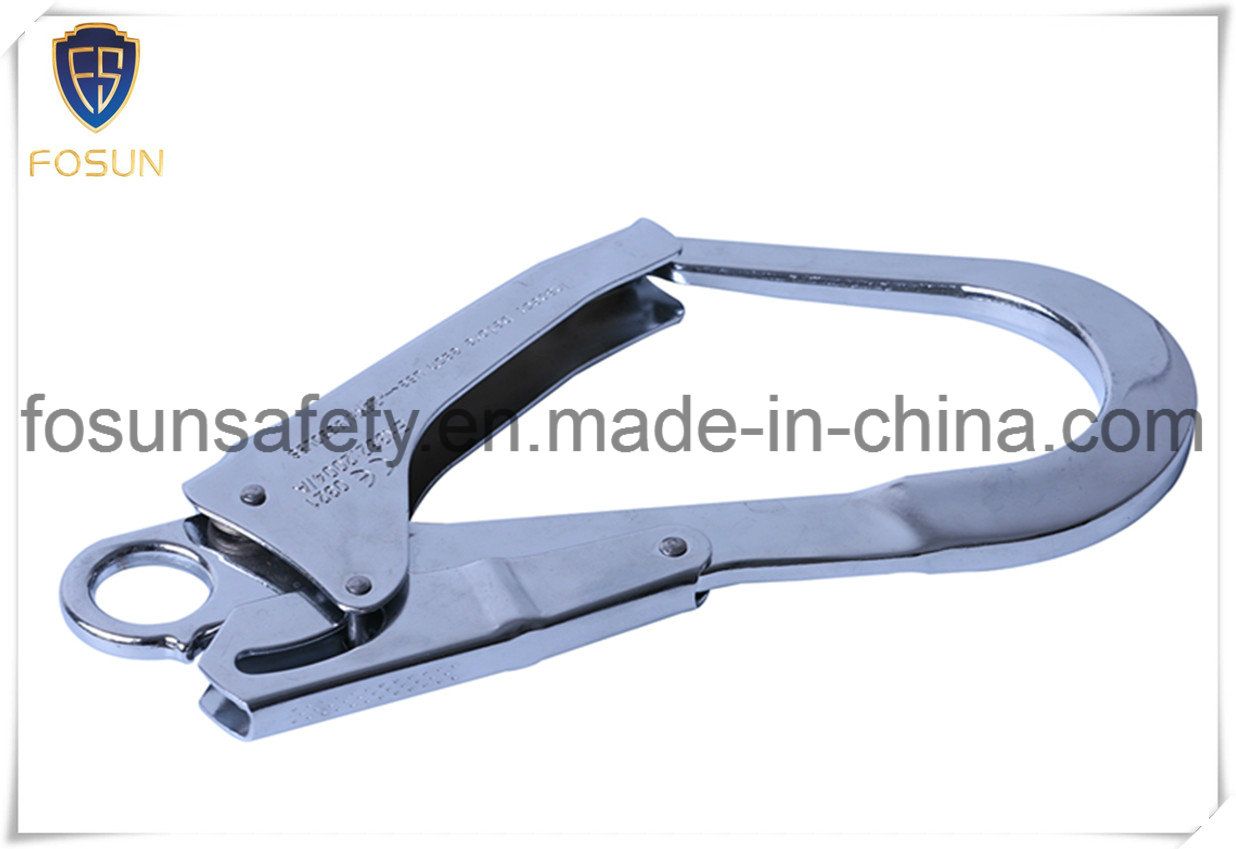

Hot Sale!  Chrome Plating Snap Hooks

Hot Sale!  Dacromet Plating Snap Hooks


CE Alloy Safety Double Latch Forged Snap Hook
Specifications:
G9120 1 4/25" Form Snap Hook
Drop Forged Steel
100% proof loaded to 3600 lbs(16kN)
Min tensile strength 5000 lbs(22.2kN)
Certified to:
EN362-2004
Finished: White/Yellow Zinc Plating
Weight: 480gm


ItemNew designed snap hook G9120
MaterialZinc alloy
SizeGate open 52mm
ColorWhite, Yellow
LogoForged marking or laser logo on hook
AccessoriesIt could be used for climbing, traveling, fishing, hiking, outing, exploring, walking or other outdoor activities, it is safe, convenient and practical.
MOQ1000PCS
Sample time2-5 days
Production lead time15-30 days after the sample confirmed
Payment terms30%deposit and 70%balance before shipment
ShippingDHL, FedEx, UPS, FS, by air &by sea

Strict manufacturing, Quality control and Testing
1, Tensile testing
100% proof loaded to 3600 lbs(16kN) tensile strength testing.
2, 3D measure
With high quality, high clear camera system and the 3D professional measure system, exceeding which other measurement tools cannot measure the field.
3, Load testing
All connected parts of safety hooks are with 100% through 3600lbs (16kN) load testing.
4, Breaking tensile testing
To ensure that each product can meet the breaking force of international standard.
5, Salt spray testing
Better for product selection, structure design, process selection, product transportation storage and using to provide effective information to provide or materials to resist salt spray corrosion.

Our Advantage
1, 10 years of rich experience in forging and production.
2, Using high quality materials, first-class equipment,
3, Stable products supply, good quality control and advanced technology.
4, Mark as customer's request, like customer's Company LOGO
5, Competitive factory price.
6, Free samples, you only pay the shipment charge.
7, Strict inspection before shipping.
8, Welcome customer's designs, OEM and ODM items.
9, On time delivery.
10, Good warranty and after-sales service.

MINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARD
StandardCSA Z259.12-01CSA Z259.12-11ANSI Z359.12-1999ANSI/ASSE Z359.1-2009EN 362: 2004NFPA 1983-2006
Major Axis5000 lbs(22.2kN)5000 lbs(22.2kN)5000 lbs(22.2kN)5000 lbs(22.2kN)4500 lbs(20kN)***
Gate Face220 lbs(1kN)3600 lbs(16kN)220 lbs(1kN)3600 lbs(16kN)220 lbs(1kN)N/A
Side Load350 lbs(1.55kN)3600 lbs(16kN)350 lbs(1.55kN)3600 lbs(16kN)350 lbs(1.55kN)N/A
Minor AxisN/A3600 lbs(16kN)*N/A3600 lbs(16kN)******
* New Standard required Minor Axis Loading for connectors with non-integral eyes.
** EN: Basic Connector 1575 lbs(7kN); Multi Use Connector 3378 lbs(15kN).
*** NFPA: Light Use...Major Axis gate closed 6069 lbs(23kN); Major Axis gate open 1574 lbs(7kN)
General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN); Minor Axis 2473 lbs(11kN)

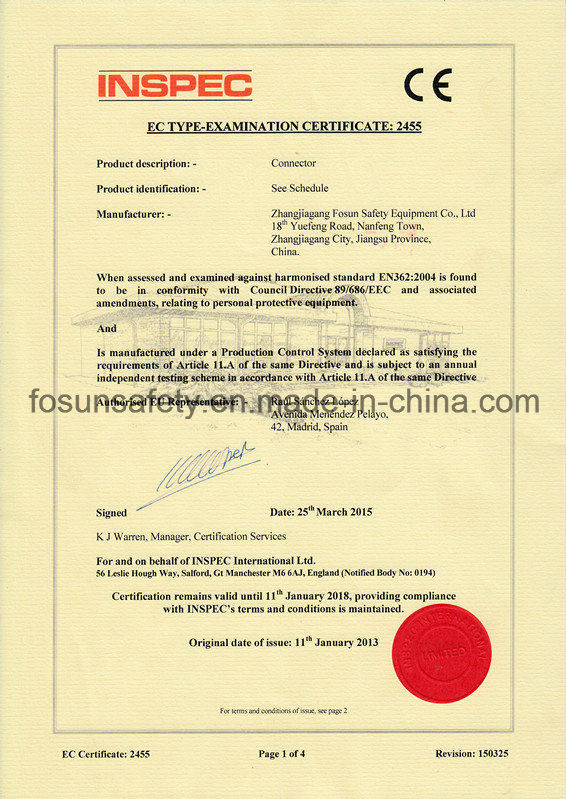

There is a strict QC procedure for each of our products, most popular items have been certified by CE and got CE certificates like self locking form snap hooks and of course, you can customize the color or engrave your company logo on it so as to make it easier to promote your brand.

Do you offer samples?
Yes, all products are available provided as samples for you to confirm the quality and color.

Do you accept sample order or small order?
Yes, we supply sample order for customer as well.

Can we have our logo on the product?
Absolutely! As long as ordered quantity meets our m. O. Q and provide us with your drawing, we are able to place your logo on the product.

Can you help customer to design their own products?
Yes, Not only customize works, we also help you create special design products according to your needs. However you need to provide us the details. We will offer you samples before order confirmed.

What is the process of ordering and cooperating with your company?
1, Search for the products you prefer.
2, Solve problems and confirm the products.
3, Quote the selected products.
4, Types of payment.
5, Delivery method.
6, After-sale service.

How long will we receive the goods?
Basically, we do not have any stock in our warehouse, the products we offer to you are all-new. As you know, Products stored in the warehouse for a long time will not only lose the luster of the product itself, but also affect the use of the term. Therefore, according to our company policy, we usually start to arrange the production after order confirmed. The delivery time is normally 20-45 days after receiving down payment and also depend on the quantity.
Zhangjiagang FoSun Safety Equipment Co., Ltd. is located in the beautiful and rich, economically developed city along the Yangtze river - Zhangjiagang. With Shanghai to the east and Nanjing to the west, North pillow Yangtze River, we enjoy convenient water and land transportation. Our factory was founded in 2005, with over 10 years' experience, we have established a complete and scientific quality management system. Meanwhile, we are committed to manufacturing and developing, safety hooks, carabiners, d-rings, buckles and rope-grabs. In the last years, we have been working hard and getting outstanding achievements, most popular items have been certified by CE and got CE certificates like self locking form snap hooks.

We have a strong supply capacity. Like G9120, we can offer 1000000 pieces /year. The whole producing process, including the design, research, development and testing, is done in our company. We also have a provision to make products according to your special require and have many facilities in-house to ensure quality and on-time delivery.

For first-class products quality, efficient and attentive services, and great added value, we have earned great reputation and support from customers worldwide. Besides, we do not only manufacture products designed by us but also welcome customers' designs, OEM and ODM items. We are looking forward to having chance to cooperate and build business relationships with you.
