Prod Model: |
ROS44~ROS120 |
Name: |
DTH Hammer and Bits |
Use: |
Ore Mining |
Item: |
High Manganese Steel |
Applications: |
Water Well Drilling |
Model: |
Down The Hole Button Bits |
Name No: |
Mission DTH Bits, Cop DTH Bits |
Drilling: |
Down The Hole Drilling |
Materials: |
Carbon Steel and Tungsten Carbide Buttons |
Uses: |
Atlas Copco DTH Button Bits |
Item No: |
DTH Hammer Button Bits |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product specifications:
SD shank Bits | Bit Dia. | No. | Gauge | Front | Weight | Part No. |
mm | inch | Air Holes | Buttons | Buttons | (Kgs) |
SD4 | 105 | 4 1/8" | 2 | 6×φ14 | 5×φ13 | 9 | SD4-105 |
110 | 4 1/4" | 2 | 7×φ13 | 6×φ13 | 9.5 | SD4-110 |
115 | 4 1/2" | 2 | 7×φ14 | 6×φ13 | 9.8 | SD4-115 |
120 | 4 3/4" | 2 | 8×φ14 | 6×φ14 | 11.5 | SD4-120 |
127 | 5 | 2 | 8×φ14 | 7×φ14 | 12.3 | SD4-127 |
SD5 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 15.5 | SD5-130 |
140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 16 | SD5-140 |
146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 16.5 | SD5-146 |
152 | 6" | 2 | 8×φ18 | 8×φ14 | 17 | SD5-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 19 | SD5-165 |
SD6 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26 | SD6-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28 | SD6-165 |
178 | 7" | 2 | 8×φ18 | 8×φ18 | 31 | SD6-178 |
190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34 | SD6-190 |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 36 | SD6-203 |
SD8 | 195 | 7 11/16 | 3 | 9×φ18 | 9×φ16 | 32 | SD8-195 |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 41 | SD8-203 |
216 | 8 1/2" | 2 | 10×φ18 | 12×φ16 | 49 | SD8-216 |
254 | 10" | 3 | 11×φ18 | 17×φ16 | 71 | SD8-254 |
305 | 12" | 4 | 12×φ18 | 29×φ16 | 95 | SD8-305 |
SD10 | 254 | 10" | 3 | 12×φ18 | 20×φ16 | 108 | SD10-254 |
305 | 12" | 4 | 12×φ18 | 36×φ18 | 125 | SD10-305 |
311 | 12 1/4" | 4 | 12×φ18 | 36×φ16 | 130 | SD10-311 |
318 | 12 1/2" | 4 | 12×φ18 | 38×φ16 | 142 | SD10-318 |
330 | 13" | 4 | 16×φ18 | 42×φ16 | 155 | SD10-330 |
SD12 | 305 | 12" | 4 | 12×φ18 | 36×φ16 | 156 | SD12-305 |
311 | 12 1/4" | 4 | 12×φ18 | 36×φ16 | 168 | SD12-311 |
330 | 13" | 4 | 16×φ18 | 42×φ16 | 180 | SD12-330 |
356 | 14" | 4 | 16×φ19 | 48×φ16 | 191 | SD12-356 |
381 | 15" | 4 | 16×φ19 | 48×φ18 | 200 | SD12-381 |
ROSCHEN RC hammer technical data:
ROSCHEN DTH Bits Specifications |
Hammer Size | Bits diameter | Shank | ROSCHEN CODE |
Metric | Inch |
1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 | ROS 11 |
2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 | ROS 22 |
3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 | ROS 32 |
M30/DHD3.5/BR3 | ROS 34 |
4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 | ROS 42 |
SD4/M40/QL40 | ROS 44 |
5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 | ROS 52 |
SD5/M50/QL50/BR5 | ROS 54 |
6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 | ROS 62 |
M60/QL60/Bulroc BR6 | ROS 64 |
8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 | ROS 82 |
QL80/M80/M85 | ROS 84 |
10" | 254mm-380mm | 10"-15" | SD10 | ROS 100 |
NUMA100 |
12" | 305mm-508mm | 12"-20" | DHD1120/SD12 | ROS 120 |
NUMA120/NUMA125 |
Notes: |
Metzke, Remet thread is available! |
Any special size of DTH bits will be available by requests. |
Shank can be available:
1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

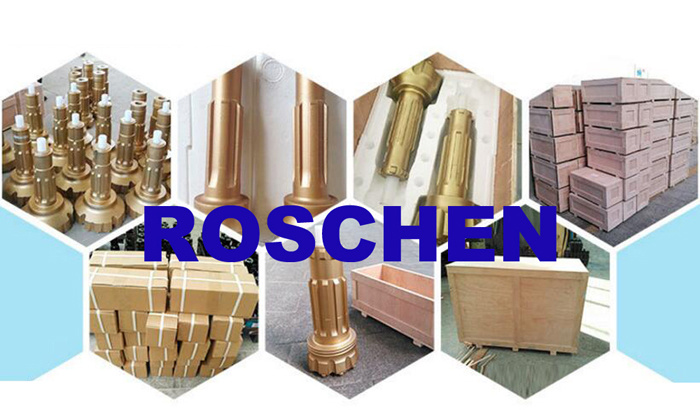

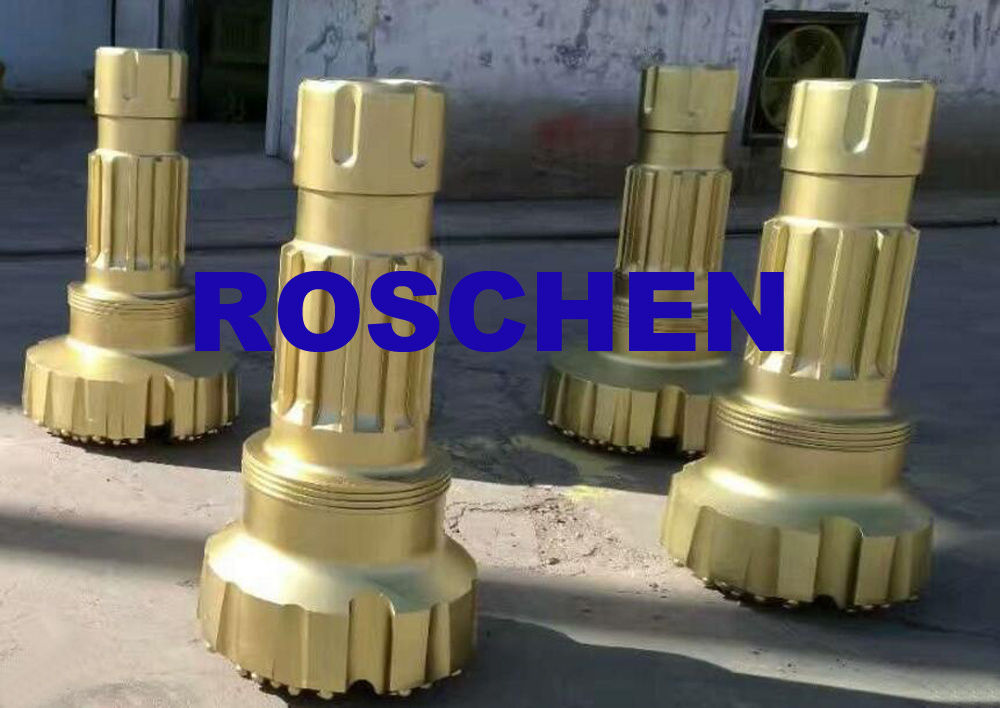

Product photos
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
