Rubber Expansion Joint (DN80)

Rubber Expansion Joint (DN80)
Price: Negotiable/Piece
Trade Terms: CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: DN80
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Diameter(Mm): Dn15-Dn1600
Nominal Bore(Inch): Nps1/2-Nps64
Material: Plastic
Standard: ANSI
Connection: Flange

Product Description

Rubber Expansion Joint (DN80)

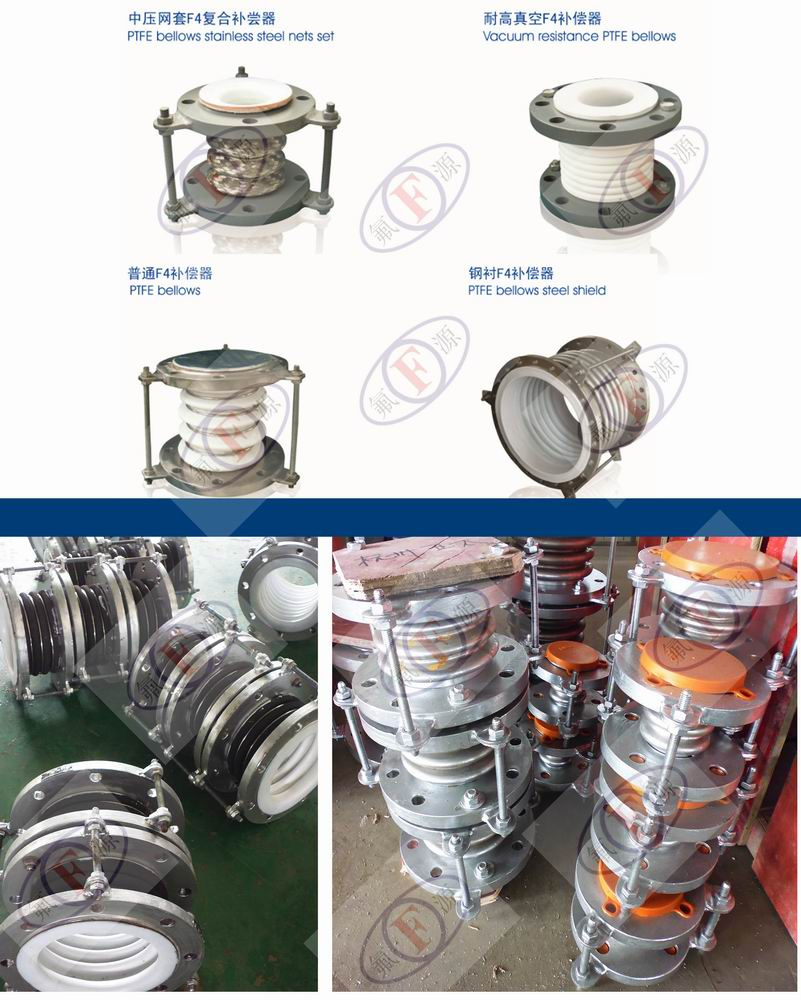

PTFE Bellows/Expansion Joint

To compensate for length changes in pipelines expansion bends, stuffing box compensators or expansion bellows are used. Bellows have proved particulaly suitable for lined pipe which may be subjected to shock and vibration. They also accomodate axial misalignment. Further advantages include simple space-saving design and speedy installation.

Typical Applications:
Chemical Engineering-PTFE is employed in all cases where corrosive substances are used and where conventional materials create sealing problems. Glass apparatus is an example. In this type of equipment, PTFE is used for expansion bellows, which are designed to compensate for mechanical and thermal changes, flexible tubing, seals, glandless valves, turbine stirrers, etc.

 PTFE Bellows (Normal type):
l  Nominal Diameter (mm/in.): DN 15~DN1600 (NPS1/2~NPS64)
l  Fatigue frequency:≥5000 times
l  Operating temperature:≤200°C

PTFE Bellows with steel shield: TYPE A
l  Nominal Diameter (mm/in.): DN 15~DN1600 (NPS1/2~NPS64)
l  Fatigue frequency:≥10000 times
l  Operating temperature:≤200°C

PTFE Bellows with stainless steel nets: TYPE B
l  Nominal Diameter (mm/in.): DN 15~DN1600 (NPS1/2~NPS64)
l  Fatigue frequency:≥10000 times
l  Operating temperature:≤200°C

PTFE Bellows for Vacuum resistance (Negative pressure):
l  Operation Pressure: -0.1MPa(-1bar)
l  Nominal Diameter (mm/in.): DN 15~DN1000 (NPS1/2~NPS39)
l  Fatigue frequency:≥10000 times
l  Operating temperature:≤200°C



As an expert manufacturer and supplier of chemical equipment and machinery since 2003,

Nanjing Fuyuan Chemical pipeline Equipment Co., Ltd continually develops and provides quality-stable chemical equipment to solve the problem of considering the need of both corrosion resistant and cost saving facing in process engineers, which have been widespread used in chemical, petrochemical, agrochemical, pharmaceutical, fine chemical, metallurgy etc. It has the fixed assets of over 50 million Yuan and the land area of 57000sqm.

The company has 308 staffs and 56 technical management personnel, including one mechanical equipment expert of Canada, one chemical technical expert of Japan.

Its high quality product are presently serving all parts of China and has been exported to America, Brazil, Japan, Korea, Mexico, Malaysia, Israel, Iran, Russia and other countries and regions.

The staff of high-trained technical personnel is willing to provide practical, low cost solution for most process problems.

The line of process equipments that is following:

1. Fluorocarbon Lined Equipment: PTFE lined Pipe and Fittings, Elbow, Tee, Cross, Reducer

2. PTFE/FEP lined Sight Glass, Bellows, Armored Expansion Joint and FEP lined Valves

3. Glass lined Equipment: Condenser, Film evaporator, Heat Exchangers

Other Plastic lined Equipment: Pipe and fittings, Columns, Reactors, Vessels, Tanks etc

4. Lining Materials: PTFE, FEP, PFA, PO, PE, PP and ECTFE (HALAR)

We pride ourselves in offering high levels of customer service and high integrity products. Our dedicated team will make us a world leader in sub-contract fluorocarbon PTFE lining to the OEM market.

Adhering to the operation principle of "Scientific management, all devotion, customer satisfaction and perfection pursuit" and the permanent commitment of "Be honest to every customer", we expect your precious opinions and welcome your guidance.

In the future, Nanjing Fuyuan Chemical Pipeline Equipment Co. Ltd will continue to constantly supply the best product and service, teaming with business partners to create a World-Class chemical equipment supplier.

Fuyuan is looking for global agent now!
