Description

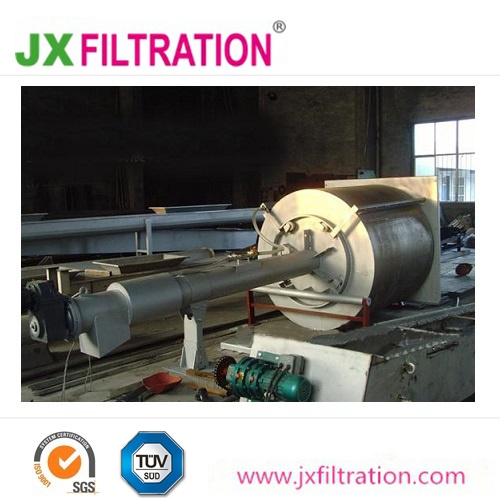

Spiral Rotary Drum Screens

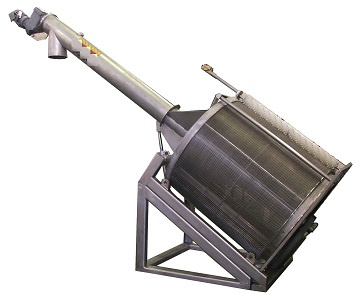

Spiral Rotary Drum Screens are integrated machines consisting of a drum screen, screw conveyor and compactor. Effluent enters the screen drum and solids are captured. When the drum rotates the solids fall into the spiral conveyor. The spiral feeds the screenings into a compactor where they are compressed and disposed. Screen water continues downstream. The rotating screen drum ensures screen does not blind. Filtration rates of between 1 - 7 mm are available, alongside flow rates of up to 7600 m3/h.
Construction

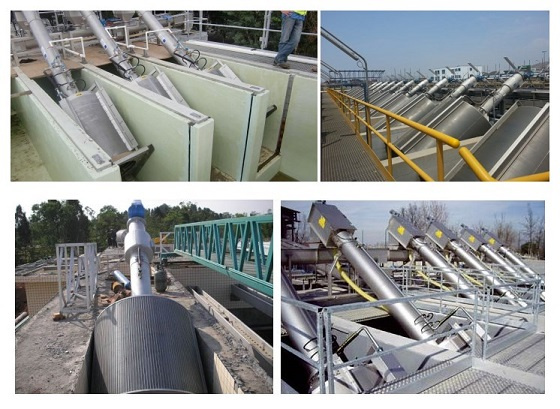

Housing constructed out of high quality 304 stainless steel to ensure years of trouble free operation. Spiral manufactured out of carbon steel with optional 304 stainless steel construction. Nylon cleaning brushes bolted to spiral. Spiral Rotary Drum Screens can be supplied for direct installation into a channel or as a complete package inside a stainless steel tank with or without the option of a bypass rake screen. Continuous bagging systems are available to receive screenings and abate odour, the screenings can then be sealed without any personal contact. Options for 316 Stainless steel area available.
Operation

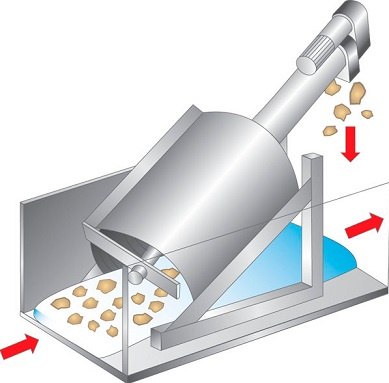

Solids within the incoming flow will enter into the drum screen and progressively collect onto the screen mesh and cause it to gradually blind. The upstream water level will rise and at a predetermined level, the drum screen and screw conveyor will activate and rotate, immersing a clean section of the screen into the effluent. During rotation the solids or screenings will become inverted and then fall into the screw conveyor. Spray nozzles and a roller brush fixed to the periphery of the drum screen will clean away any residual solids from the mesh surface. The screenings are conveyed, compacted and dewatered and depending upon the solid properties, a volume reduction of around 40% DS or greater can be achieved prior to disposing the screenings into a skip or holding vessel.
A jet wash facility in the compaction zone will breakdown and remove faecal and other semi-solid or soluble mater and return it to the inlet flow. Additional jets can be installed in the transport zone to meet higher specifications of organic solids removal. Faecal matter washing efficiencies greater than 90% and screenings weight reduction of 50% can be achieved. The compactor and wash system can be omitted to suit requirements such as CSO applications where the screenings are returned to the downstream sewer.
Technical parameter
Model
OA-600
OA-800
OA-1000
OA-1200
OA-1400
OA-1600
OA-1800
OA-2000
Drum diameter
600
800
1000
1200
1400
1600
1800
2000
Standard mesh length
650
850
1000
1200
1400
1500
1650
1850
Outerdiameter of conveying pipe
159
219
219
273
273
325
325
325
Highest water level H3
400
520
670
820
950
1100
1250
1350
Standard installation angle
35°
Average channel depth H2
600 -800
700 -1000
900 -1200
1100 -1400
1200 -1600
1400 -1800
1600 -2000
1800 -2100
Standard slag discharging height H1
1000mm
Min.installation length A
3000
3300
3600
4000
4300
4700
5000
5300
Max. flow capacity m3/h
slot
0.5
80
135
235
315
450
585
745
920
1
125
215
370
505
720
950
1205
1495
2
190
330
555
765
1095
1440
1830
2260
3
230
400
680
935
1340
1760
2235
2755
4
235
430
720
1010
1440
2050
2700
3340
5
250
465
795
1105
1575
2200
2935
3600
Advantages
High quality and reliability at low cost
Protection of downstream plant and drains
Easily installed onto an existing or new treatment works
Improved Health & Safety with optional continuous bagging
Non-clogging even with fibrous materials
Reduced disposal costs because of the screenings press
High solids capture
Enclosed drum screen
Applications
Process liquor or fluid screening
Municipal waste water treatment works
Industrial effluent discharges
MBR Membrane pre-screening
Commercial outlet discharges
Storm flows
Sea outfall discharges
