Rg-T570mcvh-01 5.7 Inch TFT LCD High Brightness 640*480 Industrial Display

Rg-T570mcvh-01 5.7 Inch TFT LCD High Brightness 640*480 Industrial Display
Price: US $ 35/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: RG-T570MCVH-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 5.7"
LCD Type: TFT
Resolution: 640*480
Brightness: 700 CD/M2
Backlight: 3X7-LEDs (White)
Display Color: 262k
Power Supply Voltage: 3.3V
Operating Temperature: -20~ 70
Viewing Direction: 6 O' Clock
Interface: 18 Bits RGB
Usage: Small-sized LCM
Type: LCM
Viewing Angle: TN+FILM
Display Technology: TFT
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
LCD Drive Mode: Multiplex Drive LCD Module
Customized: Customized
Digital LCD Module Type: TFT LCD
Touch Screen Type: No Touch Screen
Response Time: 45ms

Product Description

Product Description:
Structure: TFT PANNEL+IC+FPC+BL;
Transmissive Type LCD
640 dot-source and 480 dot-gate outputs;
White LED back light;
18 BIT RGB interface;

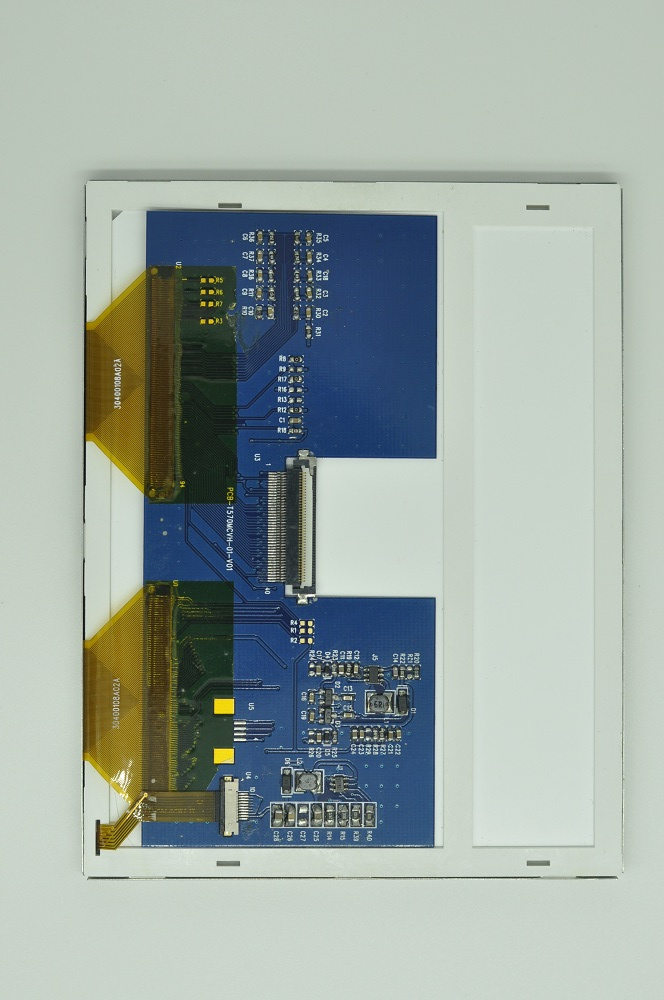

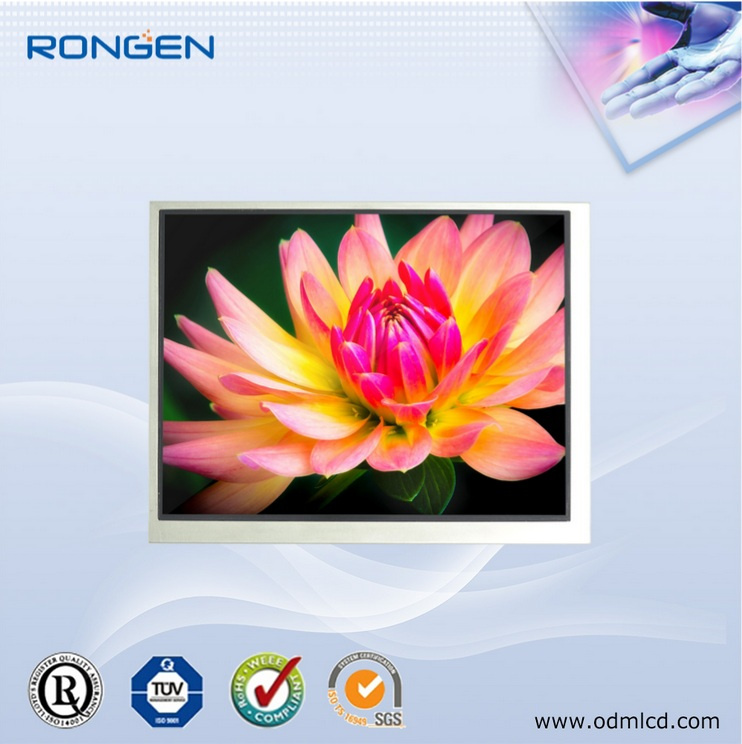

Product Picture:




General  Description:

LCD Type: TFT Transmissive ---
Driver element :a-Si TFT Active matrix
Number of Dots: 640*(RGB)*480 Dots
Pixel Arrangement: RGB Vertical Stripe
Active Area: 115.20 *86.40 mm
Viewing Direction: 6 O'clock(without image inversion)
Driver IC :HX8250A(*2)+HX8678B(*1)
Module Size(W*H*T) :127x98.43x7.0(Max) mm
Back Light :White LED
Surface treatment :Anti-glare
System interface: 18 Bit RGB interface

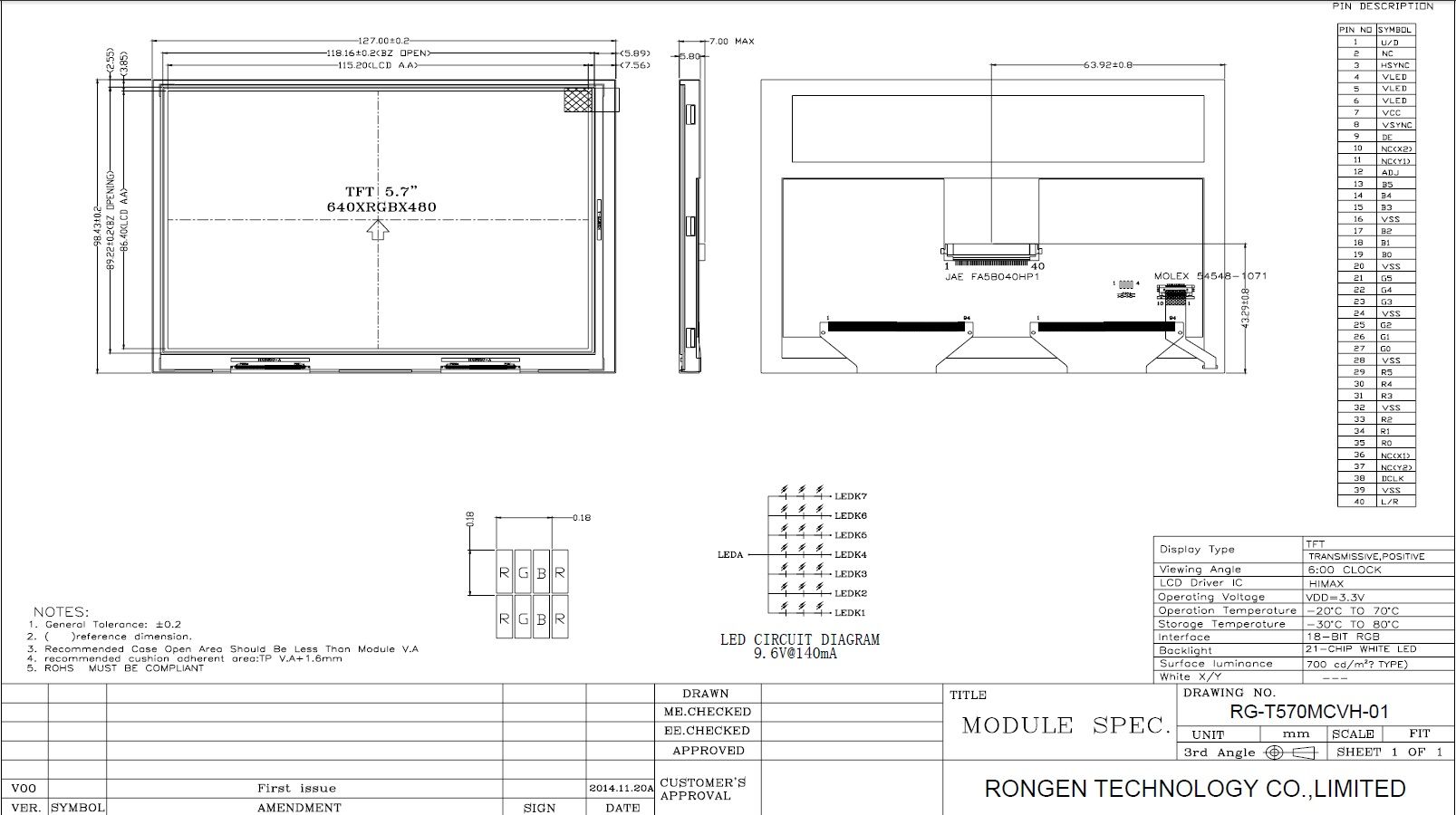

Merchanical Drawing:





Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

ProductApplication
Small-size TFT LCD displaymobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD displaymobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD displayeducational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mouldindustrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.





RONGEN Display Co., Limited is located in Shenzhen City, China with offices in HongKong offering logistic and financial services.

Over the last 13 years we have been industry leaders in the design and manufacturing of display products. RONGEN offers monochrome TN/STN, TFT and OLED displays including all other ancillary components related to displays. Our transflective TFT displays enable viewing under direct sunlight, which provides tremendous value and is appealing to customers worldwide. IPS and LTPS panels provide a wide viewing angle, another favorable aspect in the electronic display market.

Our product portfolio contains more than 200 different models of TN, STN, DSTN monochrome and TFT color displays, as well as many monochrome OLED displays, all available in sizes ranging from 0.49 to 15 inch, and working temperatures between -40º C and 90º C. Our products are widely used in automotive, medical and military applications.

The RONGEN factory area and offices combine for over 2000m2, and is run by our dedicated and hardworking employees of over 370 people. Our main production equipment includes: Two Toray CL2000 automatic COG bonding machines, which support a maximum size of 12-inch LCD panel bonding with capacity of 600-800 pieces per hour per machine; Two semi-automatic COG bonding machines; And several ACF and FPC bonding machines. We also have three end assembly lines with capacity of 1kk units per month. In addition, we added a new touch panel production line last year, which focuses on the design and manufacturing of various types of resistive and capacitive touch panels to seamlessly meet the growing demands for customized solutions.

Our customers are mainly concentrated in Europe, the U. S., Korea and Japan. Our team of highly qualified electronic engineers provides expert technical support, while our Research and Development engineers are committed to provide innovative flat panel display designs and new products to meet the ever-growing requirements of the global market. We can therefore guarantee to meet your display specifications and provide customers with the most appropriate and the cost effective solutions for their individual project requirements.

Our solutions offer the most competitive and satisfying products available in the market place today and uphold a high reputation due to our advanced facilities, mature technology, comprehensive quality management and highly effective customer service.

RONGEN Display Co. Limited has become the qualified supplier of many well-known companies around the world.
