Roschen offers a full range of reverse circulation hammers with integrated bits designed to offer a cost effective, heavy-duty sampling system for obtaining a continuous, high quality geological sample. By maximizing the energy output and minimizing air consumption, Sandvik's products can assist in providing you with excellent production rates resulting in low cost per meter drilling.
Roschen can supply High quality grade Reverse Circulation Hammers, which can instead of sandvik Reverse Circulation Hammers basis on quality grade.
Roschen manufacture a complete line of Reverse Circulation hammers and spare parts, bits, the quality can instead of Mincon and Sandvik, atlas copco. Hammers are available in a wide range of sizes and styles, to provide maximum performance and longevity on all RC drilling jobs.
Reverse Circulation hammers are designed with an inner sample tube that extends through the center and into the top of the hammer bit. The RC hammer exhausts the air between the bit splines and over the face of the bit. This forces the sample into the recovery holes in the face of the bit, through the center of the hammer and upward through the drill rod inner tubes to the surface for collection. The use of a shroud or collar is required when a RC hammer is used, to help direct the return air and cuttings up through the face of the bit.
Conventional DTH hammers can also be used in RC drilling operations, but increase the potential for sample loss and contamination. A conventional DTH hammer is used in conjunction with a cross-over sub located between the hammer and drill rod. The sample travels from the face of the bit up the outside of the hammer and into the cross-over sub.
The sub directs the sample up the center of the dual wall rods and to the surface.

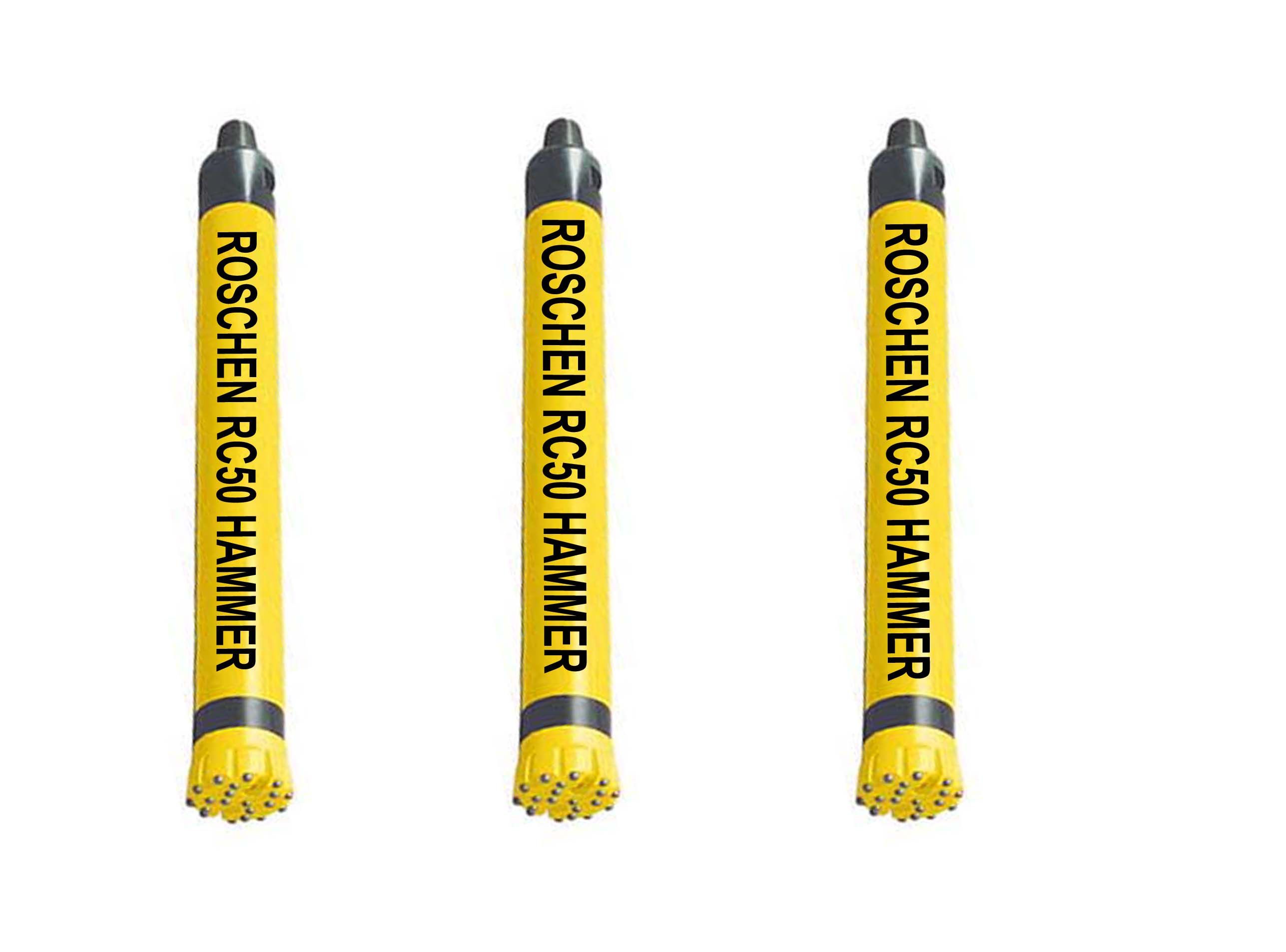

Roschen Reverse Circulation RC Hammers
Available
RE531
RE040
RE120
RE542
RE052
RE543
RE054
RE545
Obsolete
RE035
RE004
RE547
RE540
RE140
ROSCHEN RC Hammers Specifications
Hammer Size
Hammer
Bit Shank
ROSCHEN Code
Hole Range (mm)
External Diameter (mm)
Length (without bit) mm
Weight (N.W.) kgs
Connection Thread
Working Pressure
3"
RE531
RE531
ROS RC 30
84-100
81
1069
29
3" Remet
1.0-3.0Mpa
3"
RE035
RE035
ROS RC 35
84-105
85
1075
35
3" Remet
1.0-3.0Mpa
4 1/2"
RE004
RE004
ROS RC 40
111-127
107
1252
52
3.5"-4" Remet 4" Metzke
1.0-3.0Mpa
4 1/2"
RE540
RE540
ROS RC 45
111-127
107
1252
52
3.5"-4" Remet 4" Metzke
1.0-3.0Mpa
5"
RE040
RE040
ROS RC 50
113-130
109.5
1191
57
3.5"-4" Remet 4" Metzke
1.0-3.0Mpa
5"
RE542
RE542
ROS RC 50
113-130
109.5
1191
57
3.5"-4" Remet 4" Metzke
1.0-3.0Mpa
5"
RE543
RE543
ROS RC 50
120-135
116
1191
62
3.5"-4" Remet 4" Metzke
1.0-3.0Mpa
5"
RE545
RE545
ROS RC 50
122-135
117.5
1261
65
4"-4.5"Remet 4"-4.5" Metzke
1.5-3.5Mpa
5 1/2"
RE547
RE547
ROS RC 55
130-146
124.5
1270
71
4.5"Remet 4.5" Metzke
1.5-3.5Mpa
5 1/2"
RE052
RE052
ROS RC 55
130-146
124.5
1270
71
4.5"Remet 4.5" Metzke
1.5-3.5Mpa
5 3/4"
RE054
RE054
ROS RC 55
130-146
124.5
1270
85
4.5"Remet 4.5" Metzke
1.5-3.5Mpa
5 3/4"
RE140
RE140
ROS RC 55
130-146
124.5
1270
85
4.5"Remet 4.5" Metzke
1.5-3.5Mpa
5"
PR40
PR40
ROS RC 50
124-142
120.5
1362
80.5
3.5"-4.5" Remet 3.5"-4.5" Metzke
1.5-3.5Mpa
5 1/2"
PR52
PR52
ROS RC 55
126-142
121
1227
68.5
4"-4.5"Remet 4"-4.5" Metzke
1.5-3.5Mpa
5 1/2"
PR52R
PR52/PR52R
ROS RC 55
130-146
124
1225
65
4"-4.5"Remet 4"-4.5" Metzke
1.5-3.5Mpa
5 1/2"
PR54
PR54
ROS RC 55
135-150
130
1294
84.5
4.5"Remet 4.5" Metzke
1.5-3.5Mpa
6"
MX5456
MX5456
ROS RC 60
136-150
132
1362
90
4.5"Remet 4.5" Metzke
1.5-3.5Mpa
6"~6 1/2"
RC62/RC62R
RC62/RC62R
ROS RC 65
152-190
146
1320
110
As Request
1.5-3.5Mpa
8"
RC82/RC82R
RC82/RC82R
ROS RC 80
190-250
180
1395
185
As Request
1.5-3.5Mpa
10"
RC100/RC100R
RC100/RC100R
ROS RC 100
250-370
240
1528
328
As Request
1.5-3.5Mpa
Notes:
Metzke, Remet thread is available!
Any special type shank of RC Hammer will be available by requests.
