Reusable Polymer Made Stone Block Pushing Air Bag for Quarrying

Reusable Polymer Made Stone Block Pushing Air Bag for Quarrying
Price: US $ 180-900/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: AB2020, AB2010, AB1010
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness: Less Than 7mm
Pushing Power: 200tons
MOQ: 1PC
Usage: for Pushing Stone After Diamond Wire Cutting

Product Description

Reusable! ! ! Alternative of Hydro-bags!

Online Vedio: http://www.youtube.com/watch?v=CJzIB9BBMEc

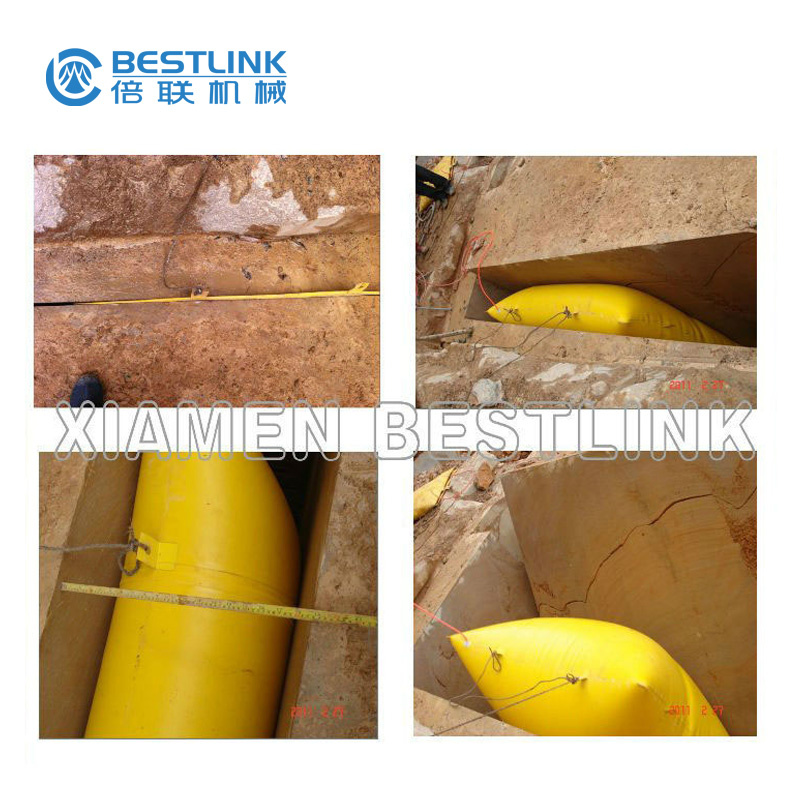

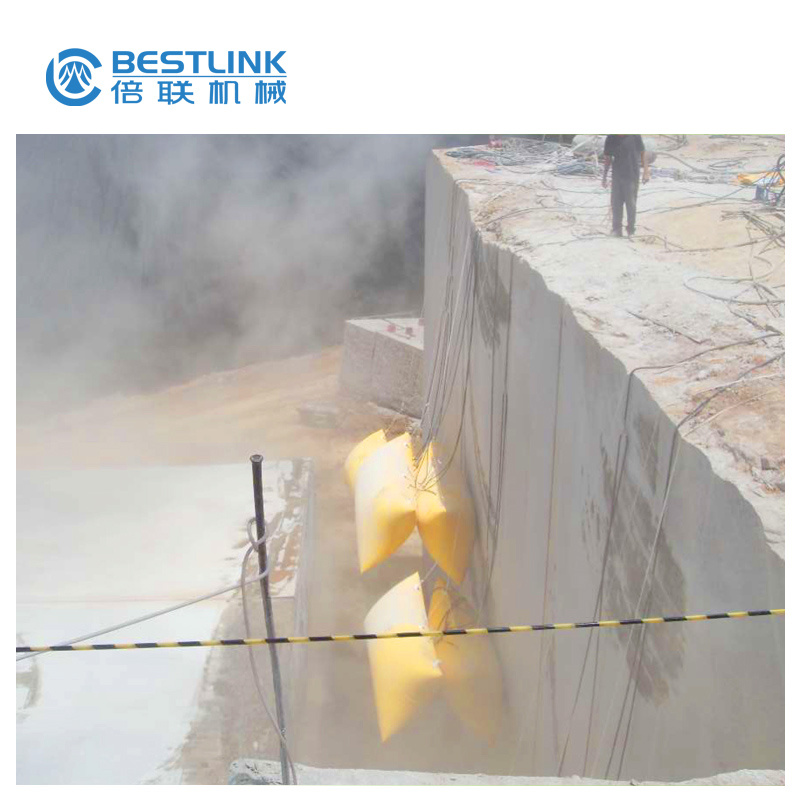

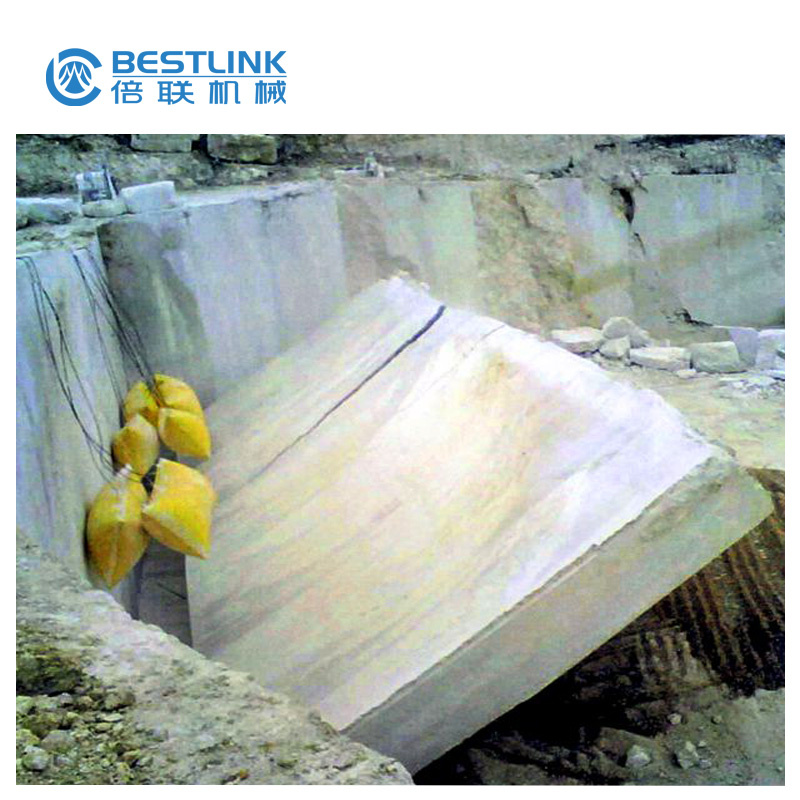

Air Pushing Bag is manufactured with High-tech materials and processed by special techniques, no frequent problem in split and damage. It performs primely and is suitable for blocks splitting after wire saw cutting in quarrying.
Advantages:

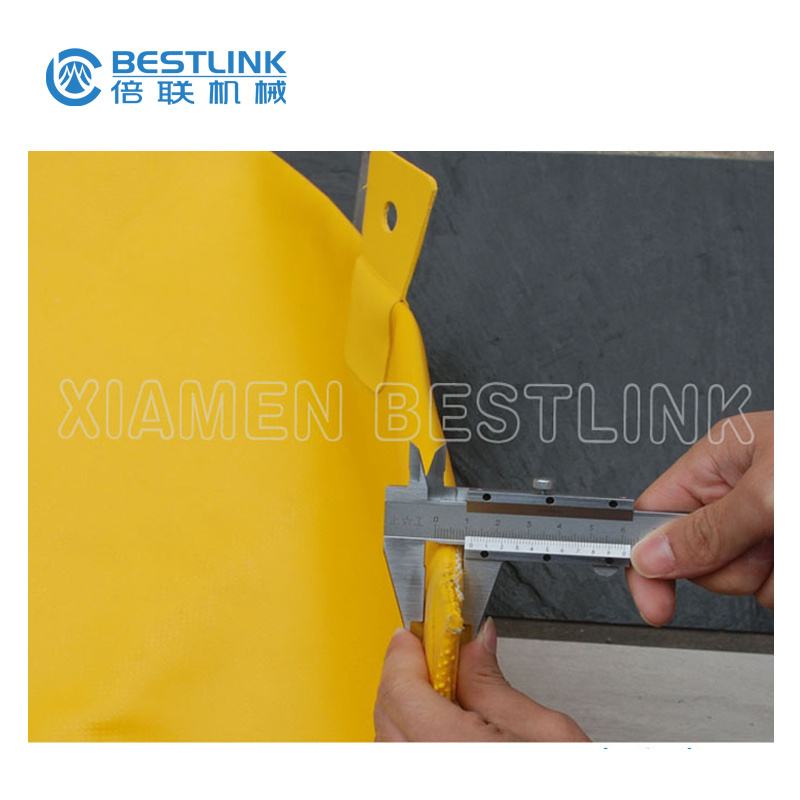

1, thickness less than 7mm
2, pushing power can be 20 to 200 tons
3, durable and repairable
4, cost is the lowest

The material of this air bag is advanced polymer and use special workmanship. It's hard to tear off or disrepair. So this air bags not only the high efficiency but also suit for the quarry operation after wire saw machine cutting.
Notice during the use:
1. The stone which will be pushed need to be clean; There should not be any stone dregs in the sawing gap, which will puncture the air bag.
2. The air bag should be settled inside of the stone gap, the side of air bag shouldn't appear from the stone.
3. The air bag should be fixed on the gap to make the enough push thrust.
4. The maximum of the pressure of air bag is 1.5KGS/cm2 (=1.47bar=21.5psi), so the pressure is forbidden pass this pressure.

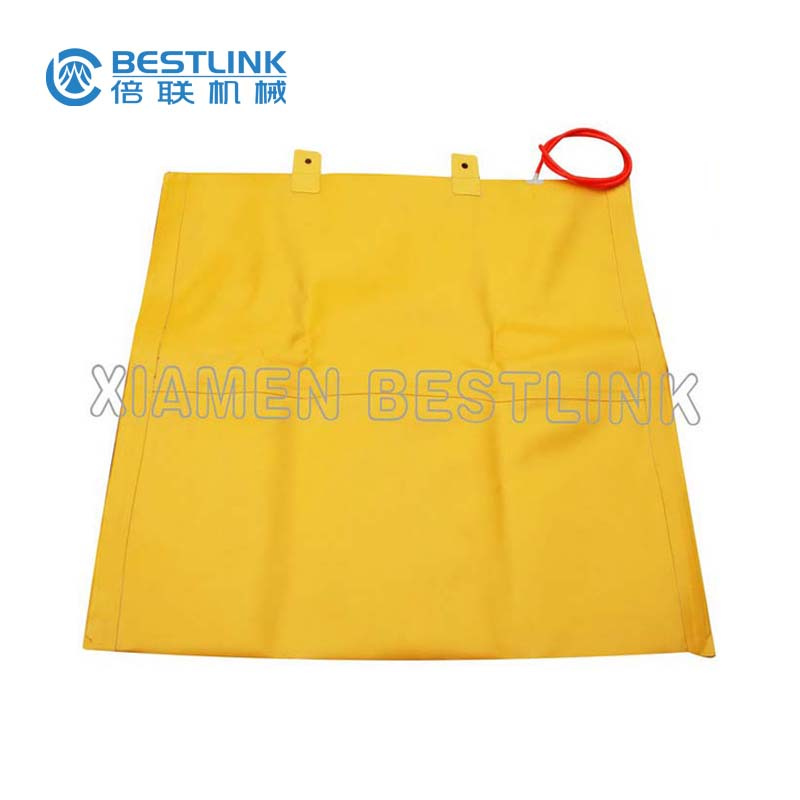

5. There are one inflating or deflating outlet on the air bag.

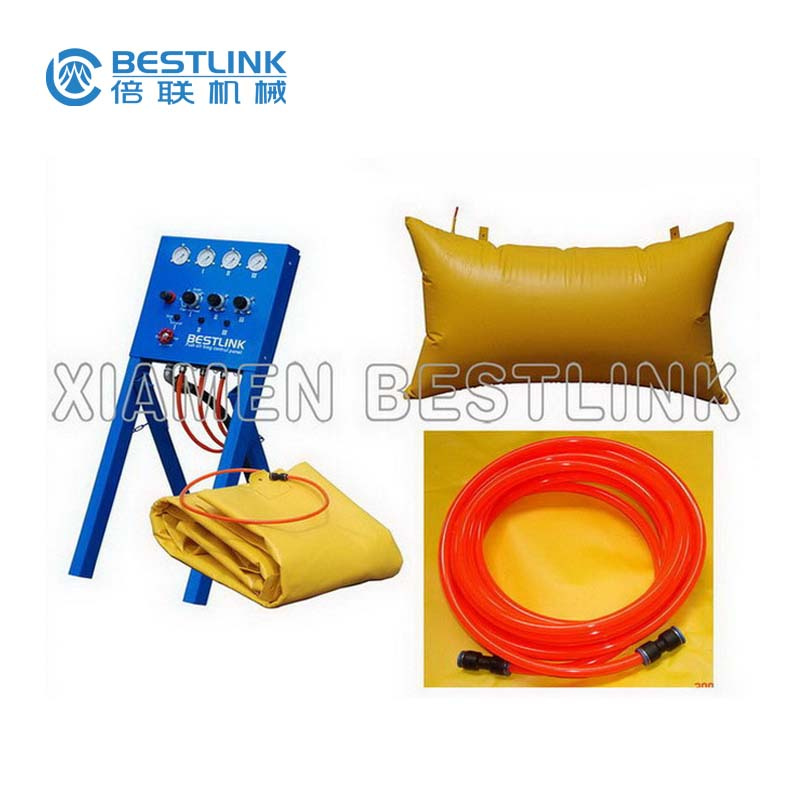

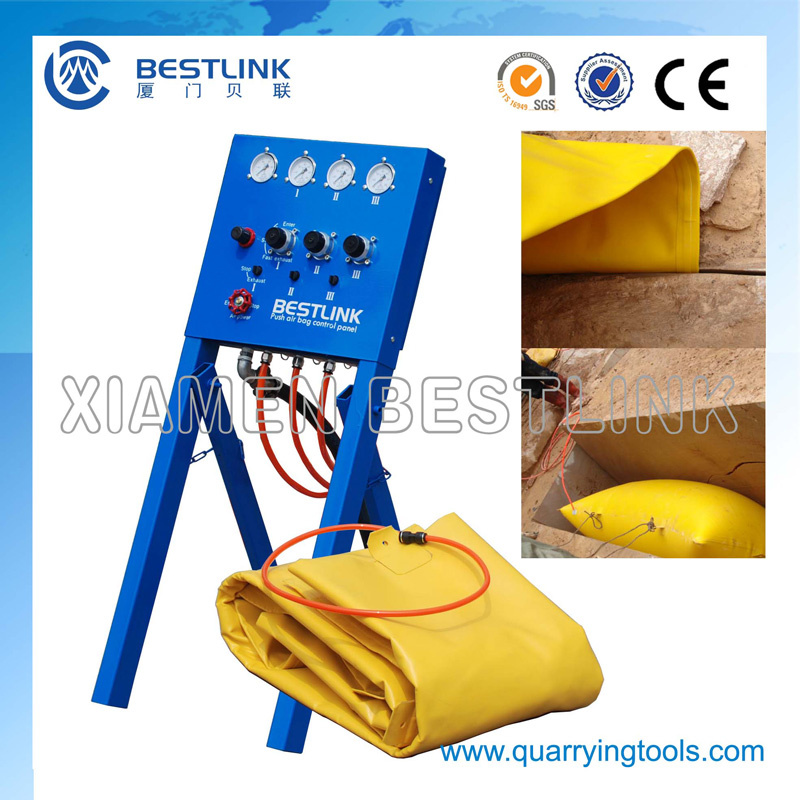

6. The operation platform can control four air bags at the same time (four outlet), each hose is controlled by individual copper ball valve.
7. Before using the air bag, should examine adjustable pressure valve, manometer, safety valve and so on. Should confirm all parameter in the field of the usable. (the pressure is forbidden pass 1.5KG/cm2).
8. When it's in inflating, the quick deflating valve must be closed, vice versa.
SpecificationPushing capacity
50×50 cm15tons
100×50 cm25tons
100×100 cm50tons
100×150 cm75tons
100×200 cm100tons
150×150 cm115tons
200×200cm200tons
