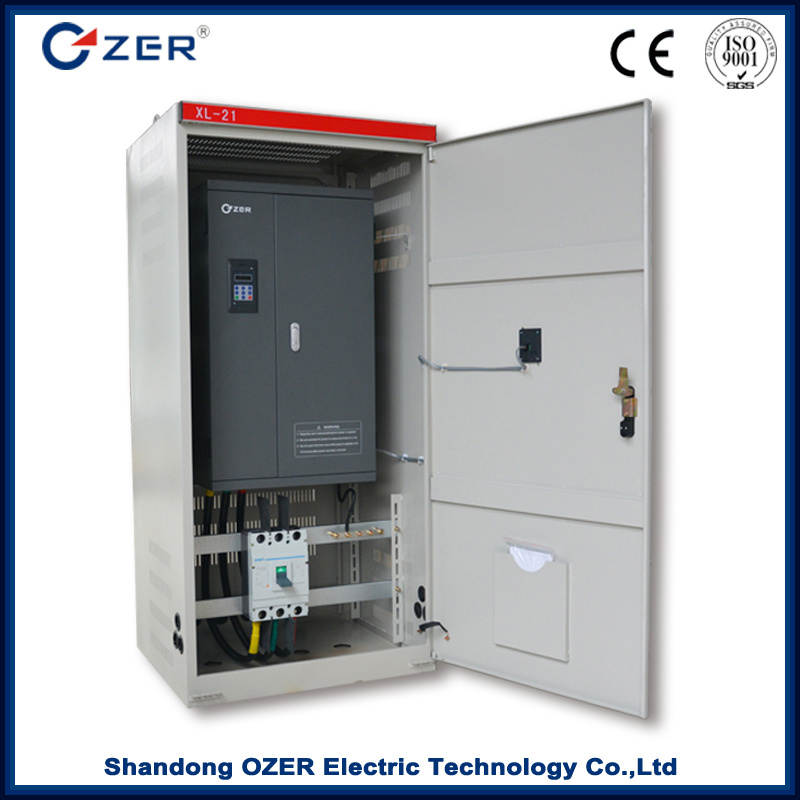

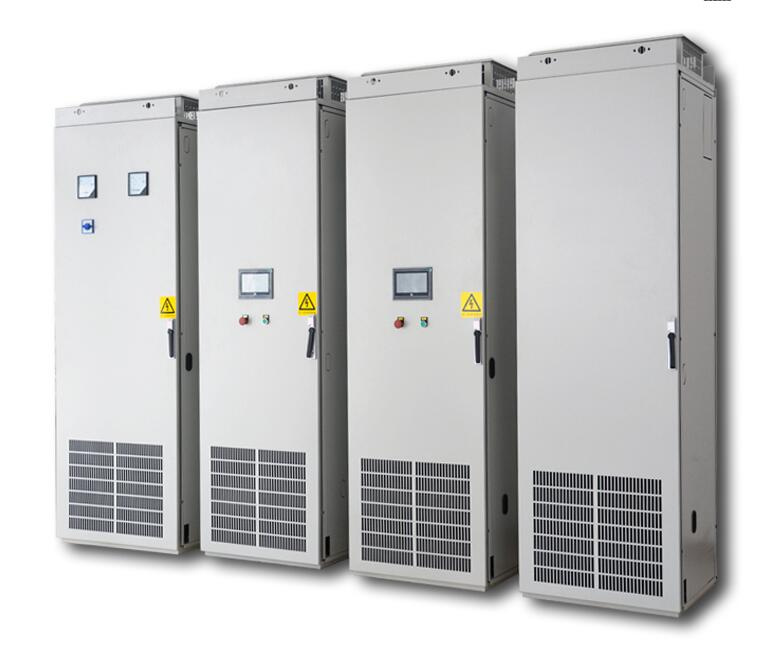

Qd805 Series AC Frequency Inverter Drives for Wire Drawing Machine

Qd805 Series AC Frequency Inverter Drives for Wire Drawing Machine
Price: US $ 102/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T
Prod Model: QD805
Output Power: 0.75kw-630kw
Delivery Detail: 3~7 Days After Payment
Application: General Transducer
Output Type: Triple
Principle Of Work: Vector Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Voltage
Brand: Ozer

Product Description

QD800 series inverter is a versatile high-performance current vector inverter, mainly used to control and regulate the speed of three-phase AC induction motor. QD800 high-performance vector control technology, low speed high torque output, good dynamic characteristics, superior overload capacity, increase the user-programmable function and background monitoring software, communication bus, support for multiple PG card, combinations feature-rich, powerful, stable performance.
QD800 series inverter is ozer QD series inverter main model. Based ozer Technology for accurate understanding of customer needs, adhering ozer science and technology for high-quality, high reliability, consistent pursuit, QD800 series ozer will be excellent performance and powerful features, to bring you a brand new user experience.

Product features:
Numerous voltage classes: It supports single-phase 220V, three-phase 220V, three-phase 380V, three-phase 480V and three-phase 690V.
High starting torque: It provides 150% of starting torque under 0.5Hz, and 180% of zero-speed torque under 0Hz.
High starting torque: It provides 150% of starting torque under 0.5Hz, and 180% of zero-speed torque under 0Hz.
Powerful protection functions: Input and output phase-loss protection, overcurrent protection, overvoltage protection, under-voltage protection, overheating protection, overload protection and short circuit protection.
Product parameter:

ProjectSpecification
The
basic
function
The max frequencyVector frequency scope:0-500Hz
V/F frequency scope:0-500Hz
Carrier frequency0.5kHz-16kHz(self-adjusting)
The frequency resolution
of import
The setting figure: 0.01Hz
The simulation setting:(The max frequency)*0.025%
The control methodSVC
FVC
V/F control
Pull-in torqueType G:0.5Hz/150% (SVC); 0Hz/180% (FVC)
Type P:0.5Hz/100%
Overload capacityType G:The duration of 150% rated current is 60s
The duration of 180% rated current is 3s
 Type P:The duration of 120% rated current is 60s
The duration of 150% rated current is 3s
Torque BoostAUTO-Torque Boost
HM-Torque Boost:0.1%-30%
DC brakingDC braking frequency:0.00Hz-The max frequency
Duration:0.0s-36.0s
  Current:0.0%-100.0%
Electronic controlThe range of frequency:0.00Hz-50.00Hz
The duration of acceleration and deceleration:0.0s-6500.0s
Simple PLC,
Multi-velocity control
In the control of built-in PlC or terminal,there are 16 velocities.
Built-in PIDBe easy to control the closed-loop control system
AVRKeeping the output voltage stability,when grid voltage instability.
The control of over
voltage and current
Auto-limited the voltage and current ,
preventing trip result from often brake-make.
Fast current limiting functionMinimizing flow failures, protect the normal operation of the inverter
Torque limit and control"Excavator" characteristics, the torque limit automatically during running, prevent frequent over-current trip; The torque control closed-loop vector model is achieved
Individualized
function
Outstanding featuresBased on current vector control technology of asynchronous motor control
Instantaneous stop constantlyInstantaneous power failure through load feedback energy compensation voltage is reduced, maintain frequency converter in a short period of time to continue running
Virtual IOFive groups of virtual DIDO, suggested that logic control can be realized
Timing controlTiming control function: set time range 0.0 Min to 6500.0 Min
Motor switchTwo groups click parameters, which can realize two motor switch control
Support multithreading busSupport: four kinds of fieldbus Modbus, profibus-dp, CANlink, CANopen
Motor overheating protectionOptional IO expansion card 1, click on the temperature sensor input analog input AI3 acceptable (PT100, PT1000)
Support more encoderSupport the difference, open collector, the sale, rotating transformer, such as is cosine encoder
A user programmableOptional user programmable card, can realize the secondary development, compatible with common PLC programming way
Strong background softwareSupport the inverter parameters and virtual oscilloscope function operation.
Virtual oscilloscope can be used for frequency converter internal state graphic monitoring
The environmentUse placeIndoor, is not subject to direct sunlight, no dust, corrosion gas I, combustible gas, oil mist, water vapor, water or salt, etc
Use placeLess than 1000 m
The environment temperatureMinus 10 degrees Celsius to above 40 degrees Celsius zero (ambient temperature in 40 ~ 50 degrees, use the lower it)
humidityLess than 95% RH, no water condenses
vibrationLess than 5.9 m per square (0.6 g)
Storage temperatureTo the above 60 degrees Celsius zero minus 20 degrees Celsius
The IP ratingIP20
Pollution levelsPD2
The power distribution systemTN,TT

Application :
It is used in wire drawing machine, film winding, coating machine, CNC machine tools, weaving machines, jacquard machines, fans, pumps, chemical fiber, textile, synchronous interaction, injection molding machines, lifting, elevator, machine tools, rolling mills, tube wire processing , lifting, lifting equipment, mill.


ontact us:
Shandong Ozer Electric Technology Co.,Ltd
Tel: 86-0536-2280828  8510239
Fax: 86-0536-8506819
Web: www.wfaozhuo.com  www.aozhuokeji.com


Shandong Ozer Electric Technology Co., Ltd. is a research and development of electrical equipment, design and manufacture of professional company, its inverter, soft starter, energy saving controller, PLC and DCS complete control system, dual PWM LCI electromagnetic power as the main product. The company has first-class talents, first-class technology, first-class equipment, with very strong new product development research institutions, high degree of automation, stable quality, product technology has been in a leading position. In the paper, steel, chemical, printing and dyeing, and other fields have a wide range of application performance, and has been unanimously comment, company user-centric, market-oriented; Based on technology and innovation, the spirit of "excellent quality from the higher demand. " the philosophy of "innovation, unity, integrity, " the entrepreneurial spirit, Aozhuo company is willing to cooperate sincerely with all the friends, to provide users with high-quality pre-sales, after-sales service, to provide the best solution for electrical control.

We have rich experience in design of various types of VFD for various applications viz. Spinning, papermaking, machinery, steel plant, petroleum, fan, water pump etc.

Company Technology has powerful capacity in design, development and manufacture of industrial control equipment. While completely satisfying domestic demand, it shall actively extend overseas business. Currently, the overseas market of ozer has covered lots of countries and regions over Southeast Asia, South Asia, the Middle East, Africa and Europe etc.
