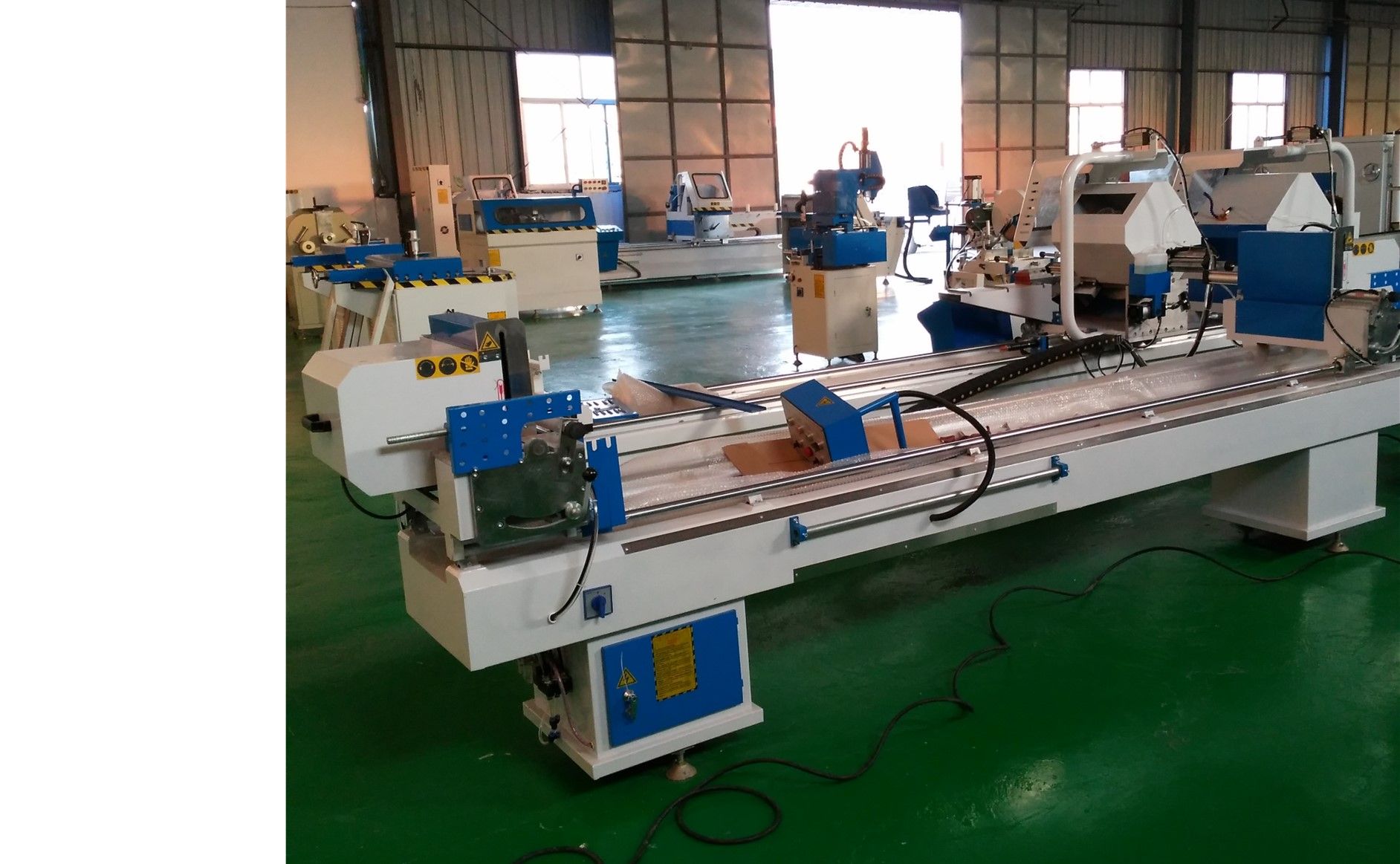

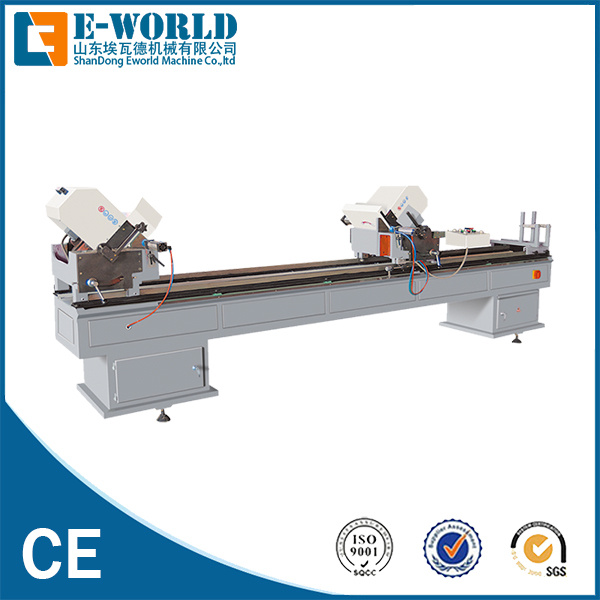

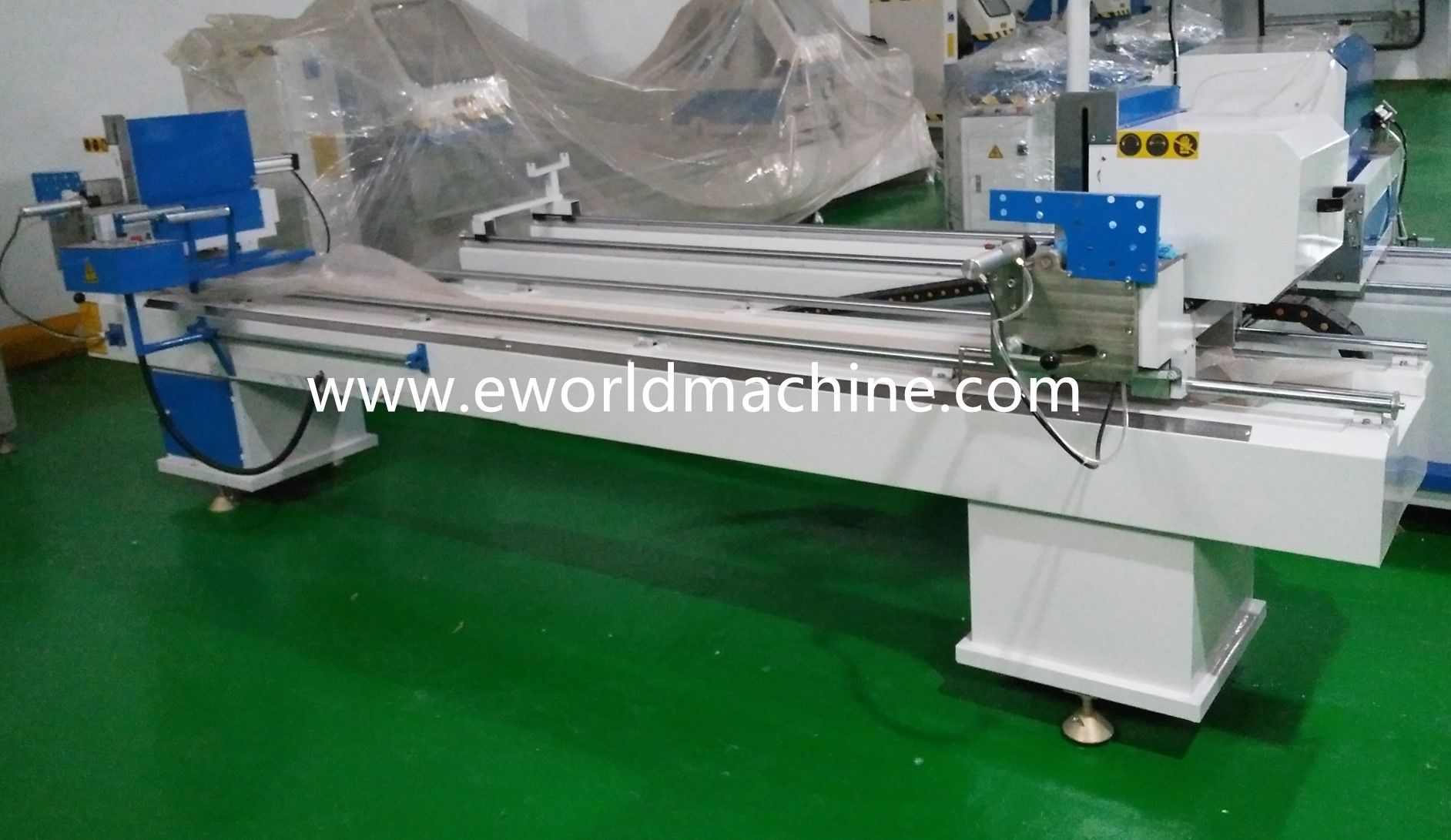

1).The machine is used for processing the aluminum and PVC/UPVC/plastic/Vinyl profile at angles of -45° ~90° ~45° The two heads can work individually, simultaneously and combinatively it has the features of simple operation ,stability and high efficiency. 2). It can process the aluminum profile, but only can cut very thin aluminum profile,so here this model usually mainly to cut the PVC/UPVC/Plastic /VInyl profile,if you want to cut both Aluminum and PVC profile, you can choose our other model SSJ06-3700 3).It has the features of easy operation and high accuracy. 4).Its cutting way is from the backward to the forward cutting, and safe cutting. 5).This cutting saw can make about 25-35 windows per day in 8 working hours. If you extend the working time, the production output will be more. 6).We can make the machine according to your true local power supply.
Technical parameters:
Model number
420-3500
Working Air pressure
0.4~0.6 Mpa
Air consumption
200L/min
Power supply
380V 50Hz
General input power
2.2 kw
Blade rotational speed
2840 r/min
Double cutting length
3500mm
Cutting thickness
125mm
Cutting width
110mm
Contour dimension
4000×900×1500mm
Machine weight(about)
600 kg
Shandong Eworld Machine Co., Ltd is one of the famous and big manufacturers of glass equipments, windows equipments, CNC equipments. Since its inception in 2002, and after more than 10 years of development and growth, the company is now playing a leading role in glass machine manufacture industry in China.
Advanced products, exquisite techniques, solid working and cordial services all give birth to the unique culture of "EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers with the best service.
Main products: Insulating Glass Production Line, Glass Washing machine, Glass Cutting machines, Glass Edge polishing machine, Glass laminating machine, Glass drilling machine, Glass printing machine, Glass sandblasting Machine, Water jet cutting machine CNC Router, Laser Machines, PVC window and door machine, Aluminum window and door Machines. Scrap metal arts.
We take credit as the base of business and mutual benefits as the soul of business.
`Besides perfecting each product with our utmost effort.
`We regard customers as our partners and provide service surpassing the expectation of customers.
