| Prod Model: |
5 x 5, 4 x 4, |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Dia.: |
1.6mm ------4.5mm |
| Hole Size: |
1.5'' --3'' |
| Width: |
2''-----9'' |
| Material: |
Galvanized Iron Wire |
| Application: |
Protecting Mesh |
| Hole Shape: |
Diamond |
| Surface Treatment: |
PVC Coated |
Product Description
Specifications
1.Material:Low Carbon Steel Wire,Galvanized Wire,Stainless Steel Wire
2.Wire Dia:1.2mm-5.0mm
3.Width:0.5m-5.0m
4.Length:1m-50m
5.Hole Size: 25mm,40mm,50mm,60mm,100mm,65mm,76mm,100mm
6.Edge of chain link fence:Twisted edge,Knuckle edge,Twisted knuckle edge
| Opening | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| | 25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm |
| Wire diameter | 18# - 13# | 16# - 8 | 18#-7# |
| | 1.2 - 2.4mm | 1.6mm - 4.2mm | 2.0mm-5.00mm |
| Length of the roll | 0.50m - 100m(or more) |
| Width of the roll | 0.5m - 5.0m |
Materials and specifications can be made according to customers'detailed requirements.
|

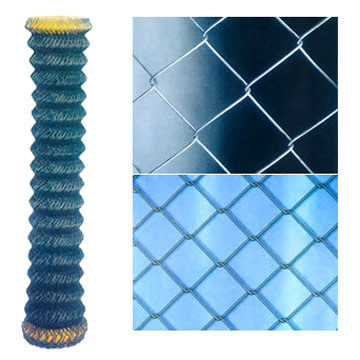

| PVC coated chain link fence |
| Opening | Wire Gauge | Width | Length |
| Inch | mm | BWG | mm | m | m |
| 1"x1" | 25mmx25mm | BWG13-BWG12 | 2.2mm-3.0mm | 0.5-5m | 1.0m-50m |
| 1-1/2"x1-1/2" | 40mmx40mm | BWG13-BWG12 | 2.2mm-3.0mm | 0.5-5m | 1.0m-50m |
| 2"x2" | 50mmx50mm | BWG12-BWG9 | 2.2mm-3.6mm | 0.5-5m | 1.0m-50m |
| 2-3/8"x2-3/8" | 60mmx60mm | BWG13-BWG9 | 2.2mm-3.6mm | 0.5-5m | 1.0m-50m |
| 2-1/2"x2-1/2" | 63mmx63mm | BWG12-BWG9 | 2.6mm-3.5mm | 0.5-5m | 1.0m-50m |
| 3"x3" | 75mmx75mm | BWG12-BWG9 | 3.0mm-3.6mm | 0.5-5m | 1.0m-50m |
Remarks: 1. Special sizes are available upon request.
2. Packing: by pvc with both end. Customer's packing is available upon request. |
| Galvanized chain link fence |
| OPENING | WIRE GAUGE | WIDTH | LENGTH |
| 1'' | BWG11.12.13.14.15.16.17.18 | 0.5M-5M | 1.0M-50M |
| 1.5'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.25'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.5 | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.375'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 3'' | BWG8,9,10,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 4'' | BWG8,9,10,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| Remarks:1.Special sizes are available upon request. 2.Packing:by PVC with both end or as customer's requirement. |
Features
Chain link fencings are one of the most well known perimeter fencings since they are easy to build, cost effective and long lasting, fulfilling the motive of keeping people in/out of a particular region.
Chain link fence application and installation
1.Commercial grounds (Corporation, hotel, supermarket);
2. Private grounds (Courtyard, Villadom);
3.Public grounds (Park, zoo, train or bus station, lawn);
4.Road and transit (Highway, railway or road city transit);
5.chain link fence is used as fencing, decoration or protection forvarious facilities in industry,agriculture, infrastructure, transport, etc.
Packaging And Delivery
Packaging Detail: Both ends is wrapped with plastic cloth and mesh bag,and then into the container .Special packaging requests are also accommodated.
Anping fuhua wire mesh making Co., Ltd was established in 1988, It is on northeast of jingsan road, east zone of industrial, anping county, the traffic hereis very convenient, from our establishing 20 years, wedeveloped to a groupe, one after the other, established hebei fuhua wan-shixing hardware and wire mesh products Co., Ltd, shijiazhuang fuhua shengda trade company Ltd, and running a office in foreign country, directly meet with customer, giving customer best help.
Our company owns 100 sets of weaving machines and razou barbed wire making machines, we produce various sizes of razor barbed wire, aluminum alloy wire netting, galvanized iron wire netting, stainless steel wire netting, fiberglass wire netting, welded wire netting etc. Our product mainly export to many countrirs and districts of Europe, America, aiddle east, southeast Asia, Africa and so on, these products enjoy the nice and trust from all of our customers wordwidely.
Anping fuhua wire mesh making Co., Ltd sincerely hope to make nice business cooperation with new and existing customers based on mutual benefits and develop our nice future together.
