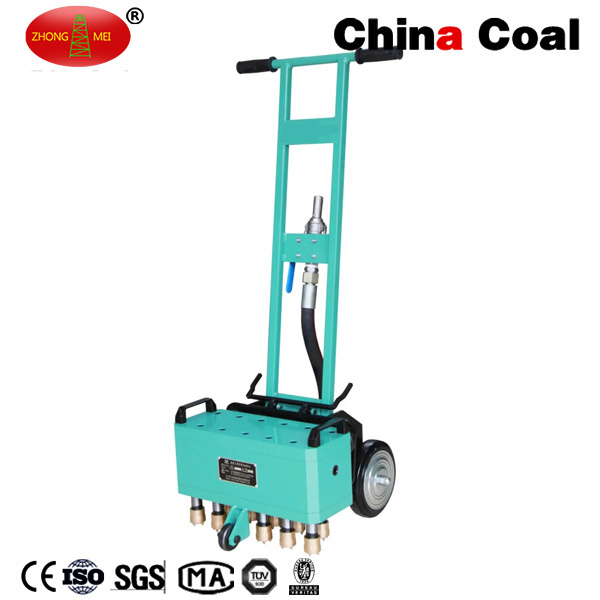

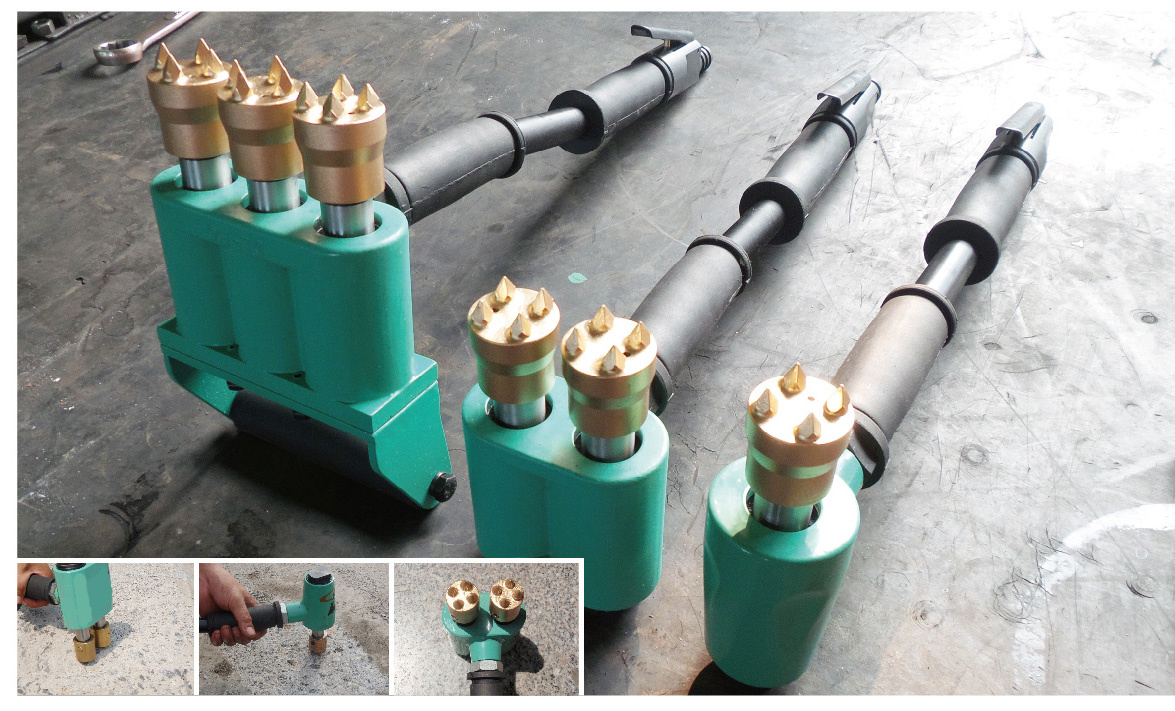

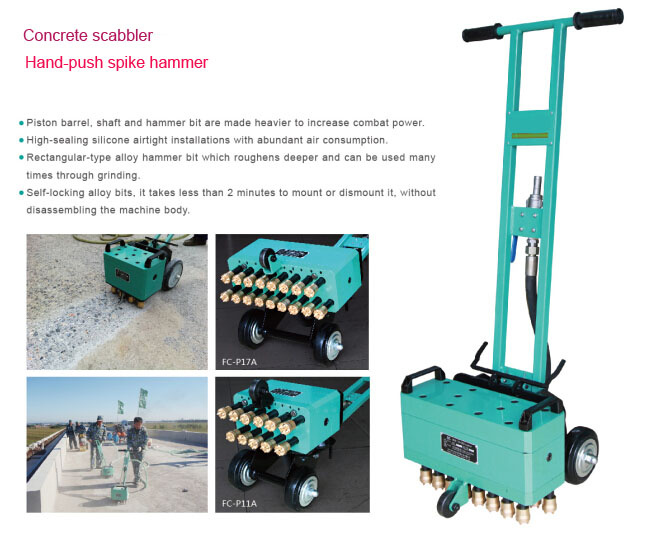

Push-type common ground spike hammer . It is designed mainly for removing of floating concrete slurry on ground surface of various concrete grounds of bridge decks of highway and high speed railway ,air port bridge,parking area and so on . Features: 1 Piston barrel ,shaft and hammer bit are made heavier to increase combat power 2 High-sealing silicone airtight installations with abundant air consumption 3 Rectangular -type alloy hammer bit which roughens deeper and can be used many times through grinding 4 Self-locking alloy bits ,it takes less than 2 minutes to mount or dismount it without disassembling the machine body
Model
Weight
Strike time/min
Displacement/Pressure
Bit diameter and numbers
ZM-P11A
76KG
11*2200
2.8m3/6kg
35mm*11
ZM-P17A
110KG
17*2200
3m3/6kg
35mm*17
Model
Scabbler width
Scabbler ability
Scabbler depth
ZM-P11A
283mm
10-40m3/h
3-8mm
ZM-P17A
410mm
15-50m3/h
3-8mm
