professional Xyd Series Crawler Core Drilling Rig Equipment

professional Xyd Series Crawler Core Drilling Rig Equipment
Price: US $ 11700-13300/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: XYD-130, XYD-180, XYD-200
Product Name: Xyd Crawler Core Drilling Rig
Model: Xyd-130,Xyd-180,Xyd-200
Drilling Hole Depth: 130m,180m,200m
Max Opening Diameter: 75-220mm,75-220mm,75-325mm
Final Hole Diameter: 75mm,75mm,75mm
Drill Pipe Diameter: 42-60mm,42-60mm,42-60mm
Borehole Inclination: 90°- 75°,90°- 75°,90°- 75°
Crawler Size/Piece: 350*90*48mm,350*90*48mm,350*90*48mm
Moving Speed: 10km/H,10km/H,10km/H
Rated Load: 18t,18t,18t

Product Description

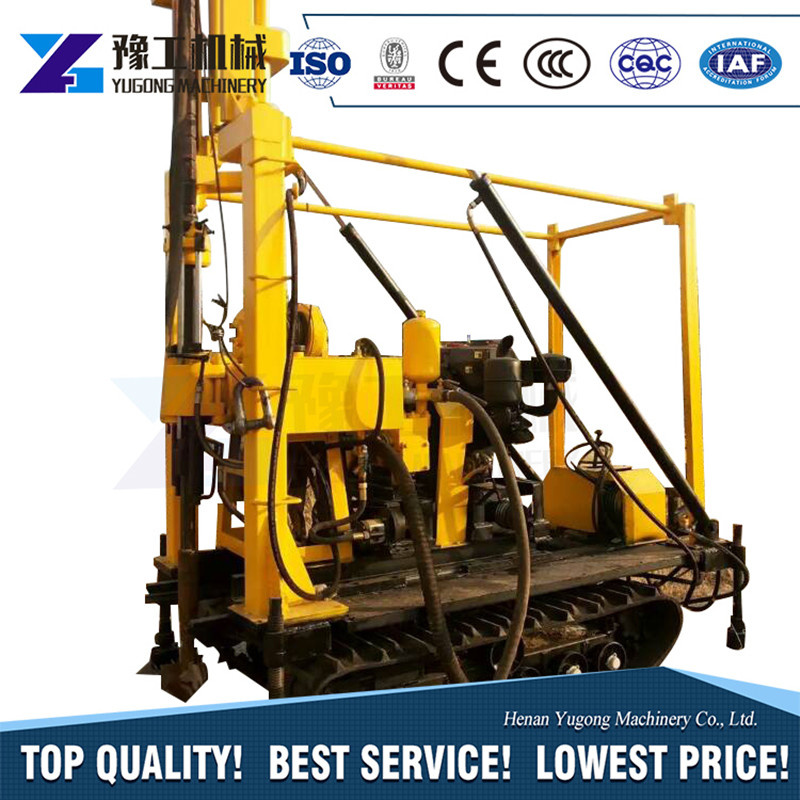

XYD Series Crawler Core Drilling Rig Equipment


Introduction

XYD series crawler drilling rig or track mounted drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.



Feature

•  Hydraulic control drill mast,save time and worker labor.

•  Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.

•  Rubber track is with lighter weight,and does not hurt urban road.

•  Electric-start diesel engine reduces the operator's labor intensity.

 Mud pump:BW160 mud pump,with bigger flow displacement and pressure,easy maintenance.

 Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

Parameters



The whole machine parameters
ModelXYD-130XYD-180XYD-200
Drill hole depth130m180m200m
Max opening diameterΦ75-Φ220mmΦ75-Φ220mmΦ75-Φ325mm
Final hole diameterΦ75mmΦ75mmΦ75mm
Drill pipe diameterΦ42-60mmΦ42-60mmΦ42-60mm
Borehole inclination90°- 75°90°- 75°90°- 75°
Power(diesel engine)13.2/2200kw/r/min13.2/2200kw/r/min15/2200kw/r/min
Size3.8*1.95*2.7m3.8*1.95*2.7m3.8*1.95*2.7m
Vertical shaft
Vertical spindle speed142,285,570r/min130,480,730,1045r/min64,28,287,557r/min
Vertical stroke450mm450mm450mm
Crawler chassis
Crawler size/piece350*90*48mm350*90*48mm350*90*48mm
Climbing angle20°20°20°
Moving speed10km/h10km/h10km/h

Hydraulic landing

leg valid height

1300mm1300mm1300mm
Rig
Rated load18t18t18t
Effective height6.5m6.5m6.5m
Mud pump
ModelBW160BW160BW160
Flow160L/min160L/min160L/min
Max pressure1.3Mpa1.3Mpa1.3Mpa
Reciprocating frequency165times/min165times/min165times/min
Inlet hose diameterΦ51mmΦ51mmΦ51mm
Outlet hose diameterΦ32mmΦ32mmΦ32mm

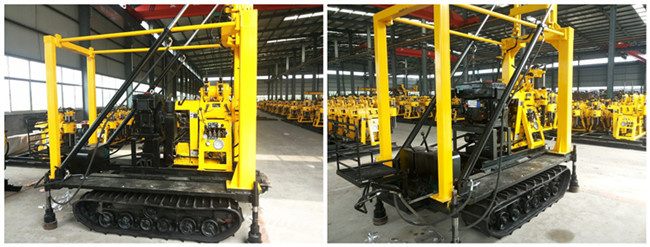

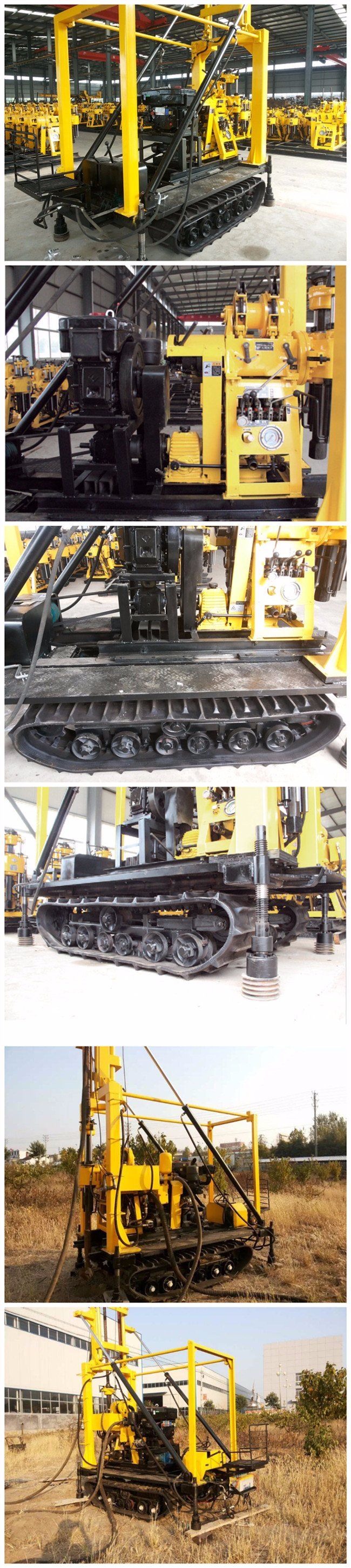

Product Display

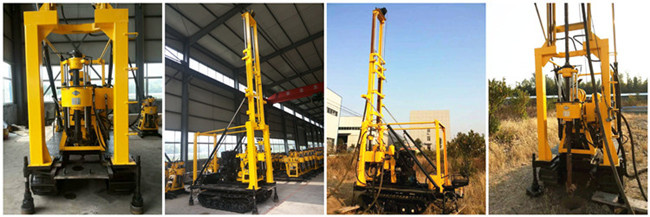

Working


Packing and Shipping



FAQ

Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.

Q2: How long is your delivery time?
A2: It is according to the model and quantity.
    Generally it is 3-5 days if the machines are in stock.
    It will be 15-30 days if you want to customize the machines.

Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
   But it's not free. You need to pay for the sample and the cost of freight.

Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
     Payment<=USD 5000, 100% in advance.
     Payment>=USD 5000, 30% T/T in advance, balance before shipment.

Company and Contact Information

Our company has more than 500 employees,including more than 30 senior technical staff and 30 international sales persons.We can supply high quality and professional services.

Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.

Henan Yugong Machinery Co., Ltd., located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on. Our products include equipments of different fields, highways, bridges, tunnels, culverts of metros, mining, coal mines and non-coal mines. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Our factory have 20 years of manufacturing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. There are more than 500 employees in our company, including more than 30 senior technical staff and 30 international sales persons. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.

We are warmly looking forward your long-term friendly cooperation, please kindly contact us any time you need these machines.
