North America,South America,Eastern Europe,Oceania,Mid East,Western Europe
Customized:
Customized
Usage:
Stone Cutting, Drilling, Engineering Material
Manufacturing Arts:
Welding
Kind:
Diamond Drill
Specification:
14mm to 500mm
Saw Blade External Diameter:
16mm to 500mm
Application:
Reinforced Concrete
Length Of Barrel:
400mm, 450mm, 500mm
Product Description

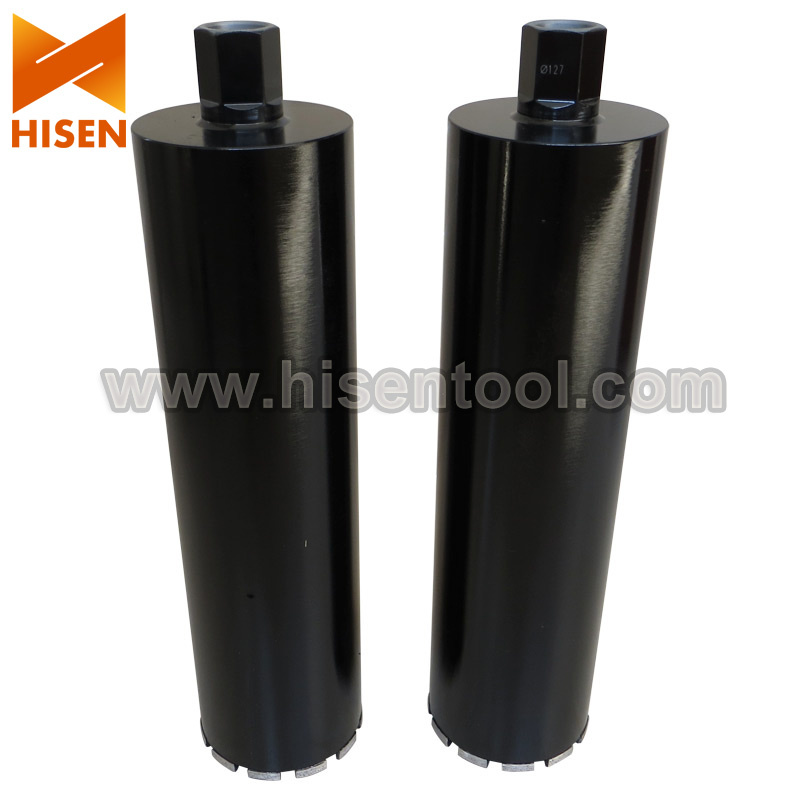

Our company specialized in producing laser welded diamond core drill bits, which are mainly used for wet cutting reinforced concrete, concrete, masonry walls. Laser welding not only gives the bit the ability to cut through reinforced concrete, but it also prevents segment loss. Crown segments are used on bits less than 2" diameter. Bits 2" diameter and above are segmented and laser welded.

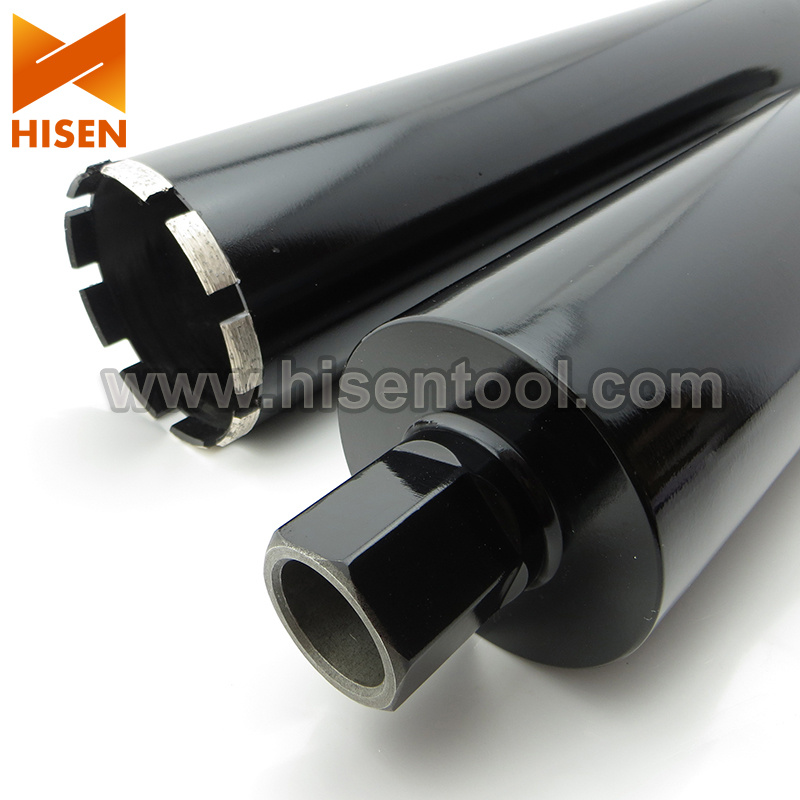

Features: Fast cutting, long life Thread: 1 1/4-7 UNC female thread Welded: Leaser welding Type: Wet Drilling Segment type: flat segments, roof segments, turbo segments Other length and thread can be produced as required.
Item No.
Diameter mm
Segment Height mm
Segment width mm
Valid Length mm
CBC16
16
10
2.5
400/450/500
CBC18
18
10
2.5
400/450/500
CBC20
20
10
2.5
400/450/500
CBC22
22
10
2.5
400/450/500
CBC24
24
10
2.5
400/450/500
CBC26
26
10
2.5
400/450/500
CBC28
28
10
3.0
400/450/500
CBC32
32
10
3.0
400/450/500
CBC35
35
10
3.0
400/450/500
CBC38
38
10
3.0
400/450/500
CBC40
40
10
3.0
400/450/500
CBC44
44
10
3.0
400/450/500
CBC52
52
10
3.5
400/450/500
CBC62
62
10
3.5
400/450/500
CBC77
77
10
3.5
400/450/500
CBC83
83
10
3.5
400/450/500
CBC102
102
10
3.5
400/450/500
CBC108
108
10
3.5
400/450/500
CBC112
112
10
3.5
400/450/500
CBC122
122
10
3.5
400/450/500
CBC127
127
10
3.5
400/450/500
CBC132
132
10
3.5
400/450/500
CBC152
152
10
4.0
400/450/500
CBC162
162
10
4.0
400/450/500
CBC177
177
10
4.0
400/450/500
CBC182
182
10
4.0
400/450/500
CBC200
200
10
4.0
400/450/500
CBC225
225
10
4.5
400/450/500
CBC253
253
10
4.5
400/450/500
CBC300
250
10
5.0
400/450/500
CBC350
350
10
5.0
400/450/500
CBC400
400
10
5.0
400/450/500
CBC500
500
10
5.5
400/450/500
Founded in 1991, HISEN DIAMOND TOOL Co., Ltd is located in Quanzhou City, Fujian province, endowed with a convenient transportation. We are a famous privately operated enterprise specialized in researching and manufacturing diamond tools for stone industry & construction industry. We have established a strict quality control system. Quality control goes thoroughly from the purchase of raw material, receiving inspection, to production and store.
Over 20 years' development, we have set a long-term business relationship with major distributors in Europe, America, Canada, Mexico, Russia, UAE, Iran, Lebanon, Columbia, India Egypt, Malysia etc. Our main products are as follows.
1. Diamond wire saw for Reinforced concrete, diamond wire for stone
2. Diamond blades 300 mm - 1600 mm
3. Diamond Polishing Pads
4. Abrasive brush & antique brush, abrasive filament (New & hot products )
5. Frankfurt abrasive, fickert abrasive
6. Diamond core drill bits
7. Diamond cup wheel, Floor tools
At any time, we are working for meeting our customers' satisfaction, offering all customers the most efficient and best service. Welcome you to join HISEN worldwide business patterns and establish long-term friendly relationship.
