Power Winch, Leading Electric Winch (1T/1.6/5T/2.0T)

Power Winch, Leading Electric Winch (1T/1.6/5T/2.0T)
Price: US $ 550-600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: 1T/1.6/5T/2.0T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric Engine: 55 Kw-6
Hydraulic Brake: Yes
Pulling Speed: 9m/Min
Rope Diamater: 6X37 *47.5
Cable Length: 100m, as Your Requirements
Winch Type: 12000lbs 4X4 Winch / Mini Electric Winch
Capacity: 32t Crane Hydraulic Winch
Usage: Electric Winch for Construction
Winch Feature: Hydraulic Winch with Higher Quality and Lower Pric
Electric Mini Wire Winch: Yes
Type: Electric Winch
Driven Type: AC
Carrying Capacity: Middle-Level
Tonnage: 2T
Running Mode: Moving
Feature: Insulating
Standard: National Standards

Product Description

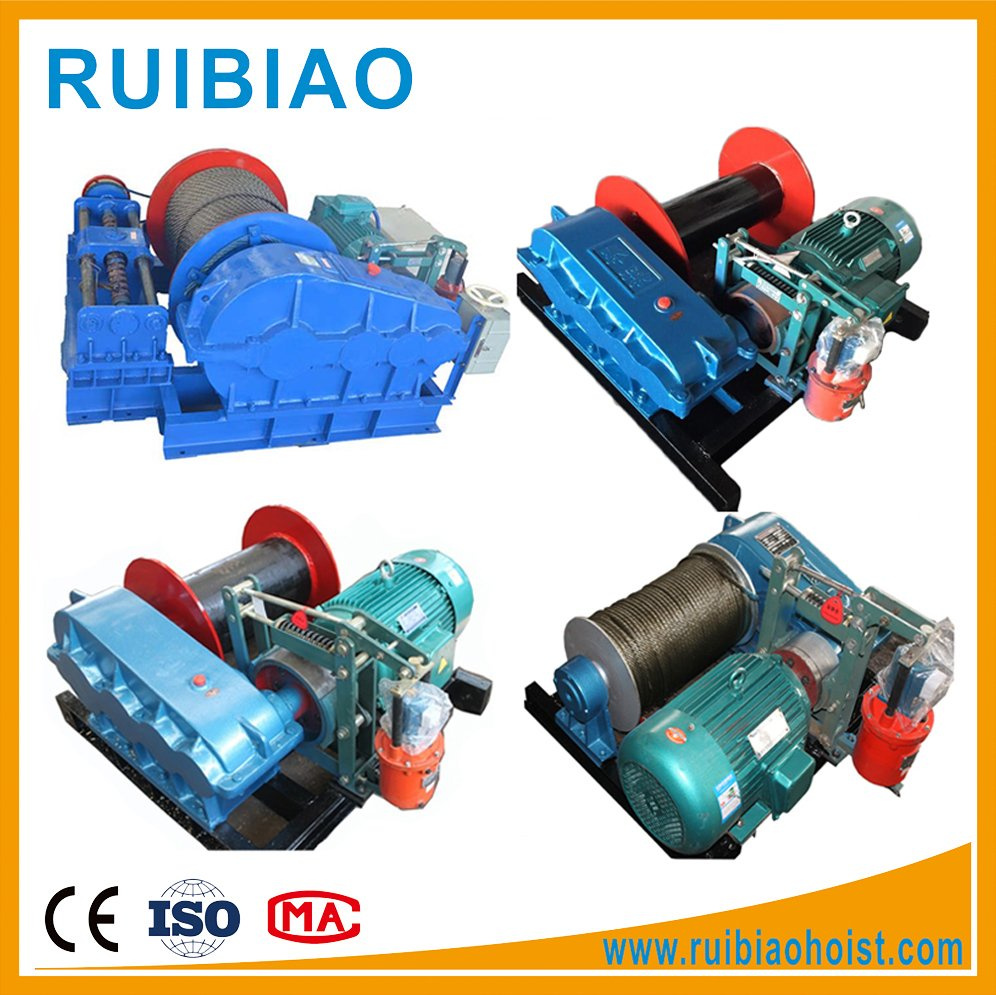

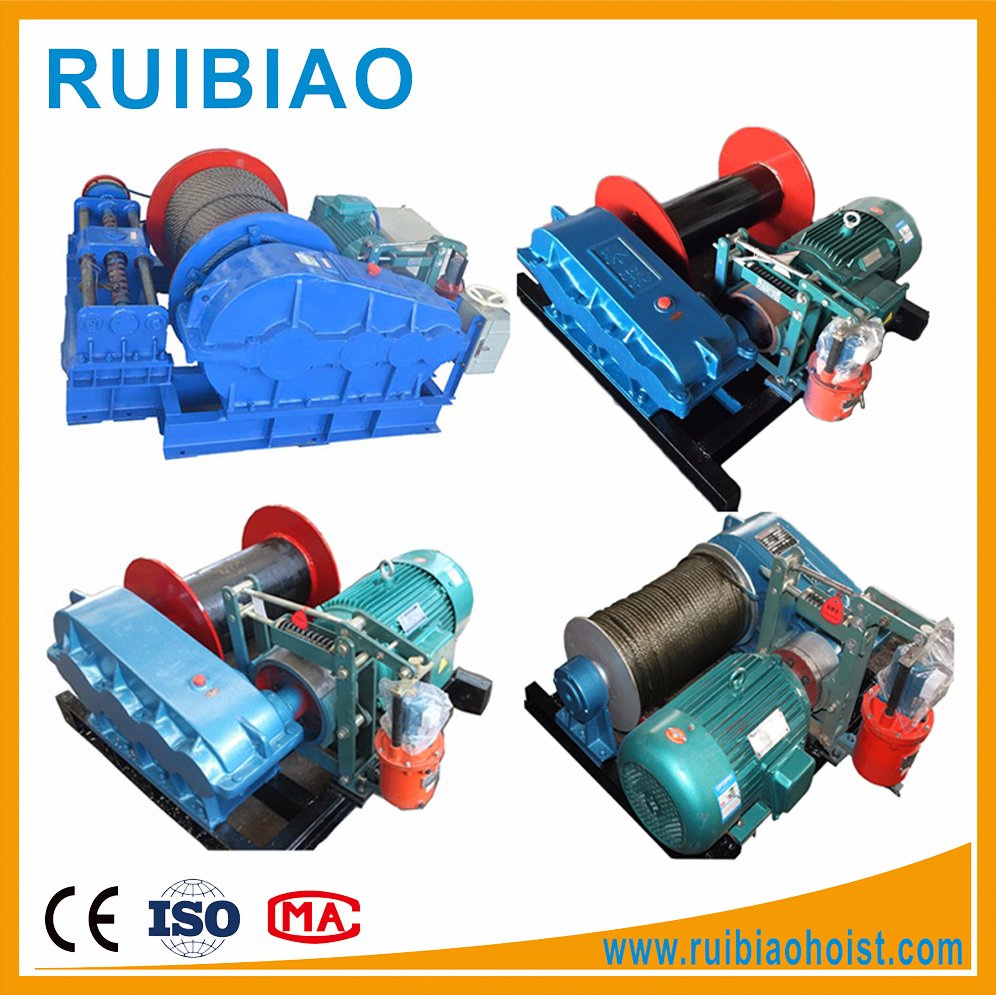

A.Main Structural Features of Power Winch, Leading Electric Winch (1T/1.6/5T/2.0T)

JM construction windlasses are composed of base, motor, elastic coupling, hydraulic brake, enclosed triple-reduction gear box, reel and brackets with electrical control cabinet.

When the motor starts, the elastic coupling drives the reduction gear box, then of which the output shaft drives the revolution of reel. All the motors are the YZR-series products adopting the national standard (GB).

The work or brake of the reel relies on the hydraulic brake. The brake and motor works synchronously, therefore when the power is cut off, the reel is braked simultaneously, of which the process is fast, sensitive, safe and reliable.



B.Specifications

C. Parameter

MODELJM-0.5JM-1JM-1.5JM-2JM-3JM-5JM-8JM-10
Rated stretching force of steel wire rope (KN)5101520305080100
Rated speed of steel wire rope (m/min)1818.518.61210.59.588
Reducer modelJZQ-250JZQ-350JZQ-350JZQ-350JZQ-350JZQ-400JZQ-500JZQ-650
Total transmission ratio construction winch48.5740.1740.17103.5130.5113.4158.3181
Diameter of steel wire rope (mm)7.79.31112.515.5172428
 Dia. of drum (mm)170194203273325406500
DRUM
Length of drum (mm)35040040048552074010001000
Rope capacity of drum (m)90110130150180250350450
The weight of wire rope(KG) 3555821532566951250
 ModelY100L1-4YZ132M1-6YZ132M-6YZ132M-4YZ160M-6YZ180L-8YZR-51-8
Motor
Power (kw)2.245.55.57.5112230
Rotating speed (r/min)14509609601450960720720720
Hydraulic /Electromagnetic brakeYWZ-100YWZ-200YWZ-200YWZ-200YWZ-200YWZ-300YWZ-300YWZ-300
 Length(mm)875102211451250145018101930
Figure
Width(mm)77392010159701020130018301900
Height(mm)41354365065067086011501200
Weight(KG)270420450650100013502900420

D.Main Advantage

E.Application

Our winches are gears reducer driving. Mainly used for hoisting, pulling and unloading, towing the weight drop. It is suitable for construction and installation engineering of Construction Installation enterprise mining area factory and etc.
Winchs' use is variable owing to its simple structure and good performance.

F.Component

Steel welded frame
The bottom frame we welded by channel steel, structure firmly. With ground bolt hole and lifting ring. A shaft through the drum which made from welded steel plate/seamless steel pipe on the support shelf.

Motor
motors apply to drive all kinds of hoisting machinery. With the advantage of high overload capacity and mechanical intensity, they are especially suitable for devices such as short-time or intermittent operation, frequent starting and braking or devices with prominent capacity against vibration and impacting.

Brake
Electro-Hydraulic Block Brakes adopt pullers as their driver units. Mainly used in the mechanical braking of machine operation equipments of lifting, transportation, metallurgy, mine, port, and building mechanical devices, had the advantages of quick speed, safe stabilization, maintain simply, low noise, long useful life, electricity saving and high operation efficiency and etc.

Speed reducer
Three stage speed reduction, using high intensity gears, large load capacity, low noise feature. Initiative axes connect to motor, driven axes connect to gears of drum for forward rotation and reverse.

Control system
Push button controller
Mainly as winch starting, (the velocity modulation)and the commutation. With forward, stop, reverse and exigency stop. Also amperemeter and indicator light.



G.FAQ

FaultCauseProcessing Method
Fail to startContact of cocontactor damaged, wire loose, fuse blown, thermorelay action, voltage is too low.Grind contact, connect the leads, change fuse, and adjust thermorelay.
Fail to stop after startContact of switch damaged, wire of brake connects well or not.Grind contact, correct leads.
The direction for the (button or switch) and rotation of drum are not in conformance. Power phases are not correct.Cut off the power, correct power phases.
Press the button, the motor rotates and stops when the button is released.Auxiliary contact of cocontactor damaged, self-locking fails.Grind auxiliary contact of cocontactor, check self-locking lead and connect it well.
