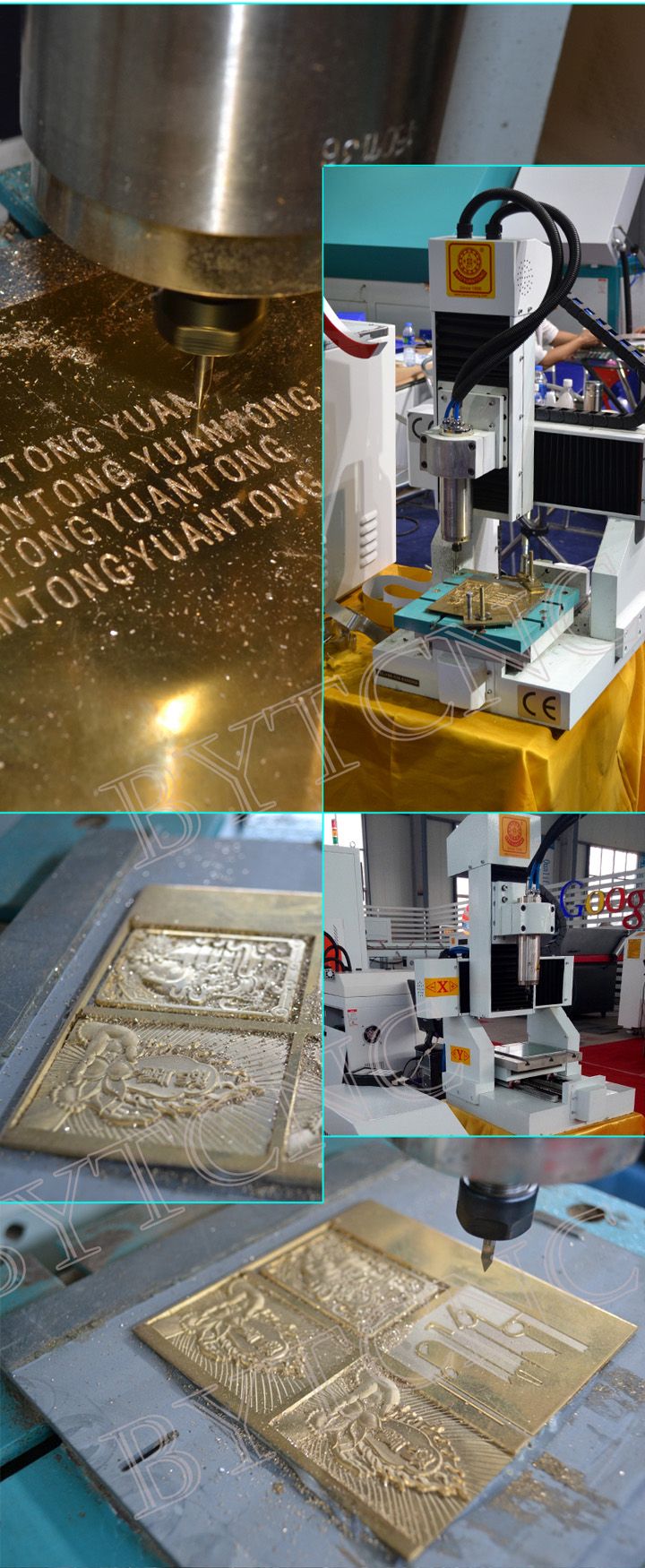

2015 new product! BJD-2020 mini desktop cnc router for circuit board
Features:
1.Guide Rail : X,Y,Z axis Adopt precision work round guild .Good stability , high accuracy ,lower wastage and long service time.
2. Portal Frame: Use aviation industry aluminum, long service time, resistant to wear and low noise. The X.Y.Z.Axis use import high precision and lower wastage extended nut automatic disappear gap ball-screw.
3. Principal Axis : Water-cooling principal axis, resistant to wear and low noise and can cooling the machine timely and effective .
4.High accuracy , It could engrave 2mm-3mm little letter.
5.The control box adopts advanced CNC system, making it high stability. The high-speed subdivided engraver motor is installed to ensure low noise , non-polar speed change .It has the function of relief sculpture as well.
Technical data:
Model
BJD1326
BJD1318
BJD1315
BJD1312
BJD6090
X,Y working area(mm)
1220*2400
1220*1800
1220*1500
1200*1200
600*900
Z axis Travel (mm)
80
Weight
500KG
400KG
350KG
300KG
280KG
Overall Size(mm)
1700*2950*1250
1650*2230*1250
1650*1950*1250
1650*1650*1250
980*1160*1150
Processing Precision
0.01mm
0.01mm
0.01mm
0.01mm
0.01mm
Reposition Precision
0.05mm
Spindle Power
1.5kw or 2.2kw,3kw
Spindle Rotating Speed
0-24000rpm
Cooling Way
Water
Control system
Nc-studio or choose DSP controller
Drive motor
Stepper
Working Software
Windows98/2000/XP
Compatible Software
Compatible Software
Command
G code, *uoo, *mmg, *plt
Rail guide
Precision work round
Transmit way
Taiwan imported ball screw
Max Speed
5000mm/min
Max Working Speed
3000mm/min
Working Voltage
AC220V/50HZ1P
Suitable material:acrylic, double color board, PVC, density board, soft metal like aluminum,
copper etc.
Service
1.One year quality guaranty. The machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agent price when you need replacement.
5.Engineers speaking English 12 hours on line service each day, free technical support. We will solve your problems immediately by E-mail, fax, MSN, Skype, or telephone.
6. The English operation manual in electronic edition is included.
7. Machine has been adjusted before delivery.
8.Yuantong century is constructing oversea technical support center network, you can contact us to find your nearest support center.
Shandong Yuantong Century Intelligent Technology Co., Ltd, founded in 1996, specialized in manufacturing kinds of CNC Machines. Our product ranges from CNC routers, laser, plasma machine, to various sign making machines dedicated to advertising and other applications. Such as decorating, label making carpentry industry, stone processing, craft gifts, garment and leather processing, embroidery industry and so on.
Now our products have been sold all over the world, and with the CE certification, they are exported to more than 100 countries, including: Algeria, Argentina, UAE, Oman, Azerbaijan, Egypt, Ethiopia, Ireland, Angola, Oliver, Australia, Papua New Guinea, Pakistan, Paraguay, Bahrain, Panama, Brazil, Bulgaria, Belgium, Puerto Rico, Poland, Bosnia and Herzegovina, Bolivia, Denmark, Germany, Dubai, Dominican, Russia, Ecuador, France, Philippines, Chile, Colombia, Costa Rica, Georgia, Kazakhstan, Korea, Netherlands, Honduras, Kyrgyzstan, Canada, Czech Republic, Zimbabwe, Cameroon, Qatar, Cô Te d'Ivoire, Kuwait, Croatia, Kenya, Curacao, Latvia, Laos, Lebanon, Lithuania, Libya, Romania, Maldives, Malaysia, Macedonia, Mauritius, United States, American Samoa, Peru, Myanmar, Moldova, Morocco, Mexico, South Africa, Nepal, Nigeria, Norway, Sweden, El Salvador, Serbia, Senegal, Cyprus, Saudi Arabia, Sri Lanka, Slovakia, Thailand, Tanzania, Turkey, Venezuela, Brunei, Ukraine, Spain, Greece, Singapore, New Zealand, Hungary, Armenia, Iraq, Iran, Israel, Italy, India, Indonesia, United Kingdom, Jordan, Vietnam, Vietnam, Zambia.
Rather than merely supplying stand-alone products, we offer customized solutions for different clients request. These solutions bring users a more efficient way with lower production cost.
Now we are developing more and more intelligent equipment to offer more advantages to our clients.
The integrity, reliability and high quality products guarantee us the leading position among CNC advertising equipment industry.
In order to provide better service for customers, Yuantong century is constructing oversea sales center in Dubai and oversea technical support center network all over the world,
We provide technical support and professional training for customers, make sure their machine run stable and efficiently. English speaking after service team make sure the customer's problem could be settled in shortest time.
All around the clock, all around the world, we are always here for you
Shandong Yuantong Century Intelligent Technology Co., Ltd
China:
No. 2999, 2ND Industry Road., Weifang Economic Development Zone, Weifang city, Shandong Province, China
Tel: +86 0536 8206275
UAE: China National Building Material Group FZE, S30408 Jafza South near Gate No. 10, UAE
