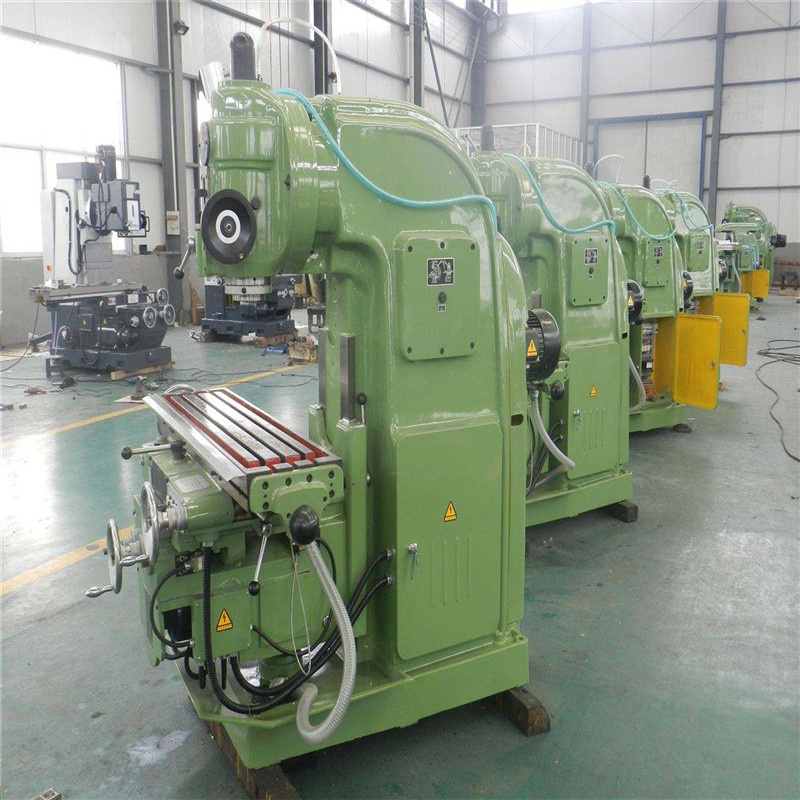

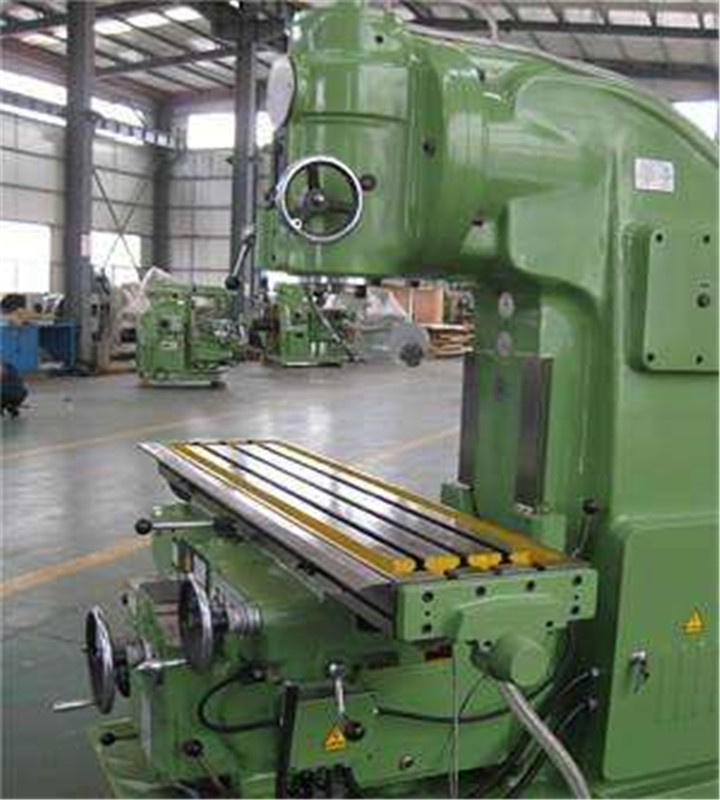

Power Metal X5032 Vertical Milling Machine From Ice

Power Metal X5032 Vertical Milling Machine From Ice
Price: US $ 8000-18000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: X5032
Machine Type: Machine Center
Color: Green
Application: Metal Machining
Spindle Speed: 30-1500rpm
Usage: General
Name: Milling Machine
Type: Tool Milling Machine
Object: Tool
Structure: Bed type
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Precision: High Precision

Product Description

Product description
X5032 vertical milling machine spindle taper hole can be directly or through the installation of accessories all kinds of cylindrical milling cutter, milling cutter, milling cutter, milling, machining of various parts of the plane, inclined plane, groove, hole and so on, is the ideal processing equipment, machinery manufacturing, mold, instrument, automobile and motorcycle industry.

technical parameter

Distance between spindle end and worktable (mm) 45~415
Distance between spindle centerline and vertical guideway of lathe bed (mm) 350
Spindle hole taper 7:24 ISO50
Spindle bore (mm) 29
Spindle speed (r.p.m) 18 class 30 ~ 1500/18 level
The maximum swivel angle of the end mill is 45 degrees
Spindle axial movement distance (mm) 85
Table working face (width x length) (mm) 320 x 1325
Table travel longitudinal / lateral / vertical (manual / maneuver) (mm) 720/700, 255/240, 370/350
The feeding range of the worktable is vertical / horizontal / vertical (mm/min) 23.5 ~ 1180/23.5 ~ 1180/8 ~ 394
The table moves rapidly at a speed of vertical / horizontal / vertical (mm/min) 2300/2300/770
T type groove groove width / slot number / (mm/) >3/18/70
Main motor power (KW) 7.5
Feed motor power (kw) 1.5
Outline size (mm) 2530 x 1890 x 2380
Net weight of machine tool (kg) 3200

Our company is a big exporter of various kinds of steel and iron products, metal mineral.

One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.

Here are our steel products:

Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.

The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.

Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).

If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
