Pex-Al-Pex Water Pipe with Aenor/Acs/ Skz/ Watermark/Wras Certificate

Pex-Al-Pex Water Pipe with Aenor/Acs/ Skz/ Watermark/Wras Certificate
Price: US $ 0.28-0.3/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: 16-63MM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Zhejiang China (Mainland)
Brand Name: Mingshi
Specification: 12, 16, 18, 20, 25, 32, 40, 50, 63mm
Length: 200m, 150m, 100m, 50m
Thickness: 2.0mm~3.5mm
Color: White, Red, Yellow, Orange, Green, Black, etc
Connection: Butt Welding, Overlapped
Compound Material: Aluminium Plastic Compound Pipe
Material: PEX-Al-PEX
Installation And Connection: Clamping Type Installation
Technology Of Plastic Composite Pipe: Internal and External Coating
Plastic Composite Pipe Coating Form: Inner and Outside Coating
Base Pipe Of Plastic Composite Pipe: Lase Welding Aluminum
Plastic Composite Pipe Model: 16-63mm

Product Description

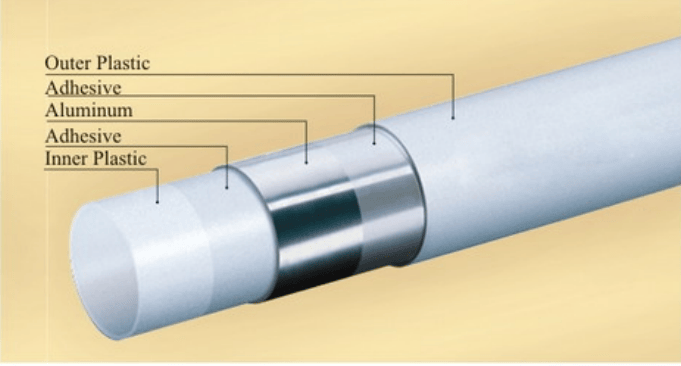

 1. For water(cold & hot)/gas pipe system, Composed of 5 layers:
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic

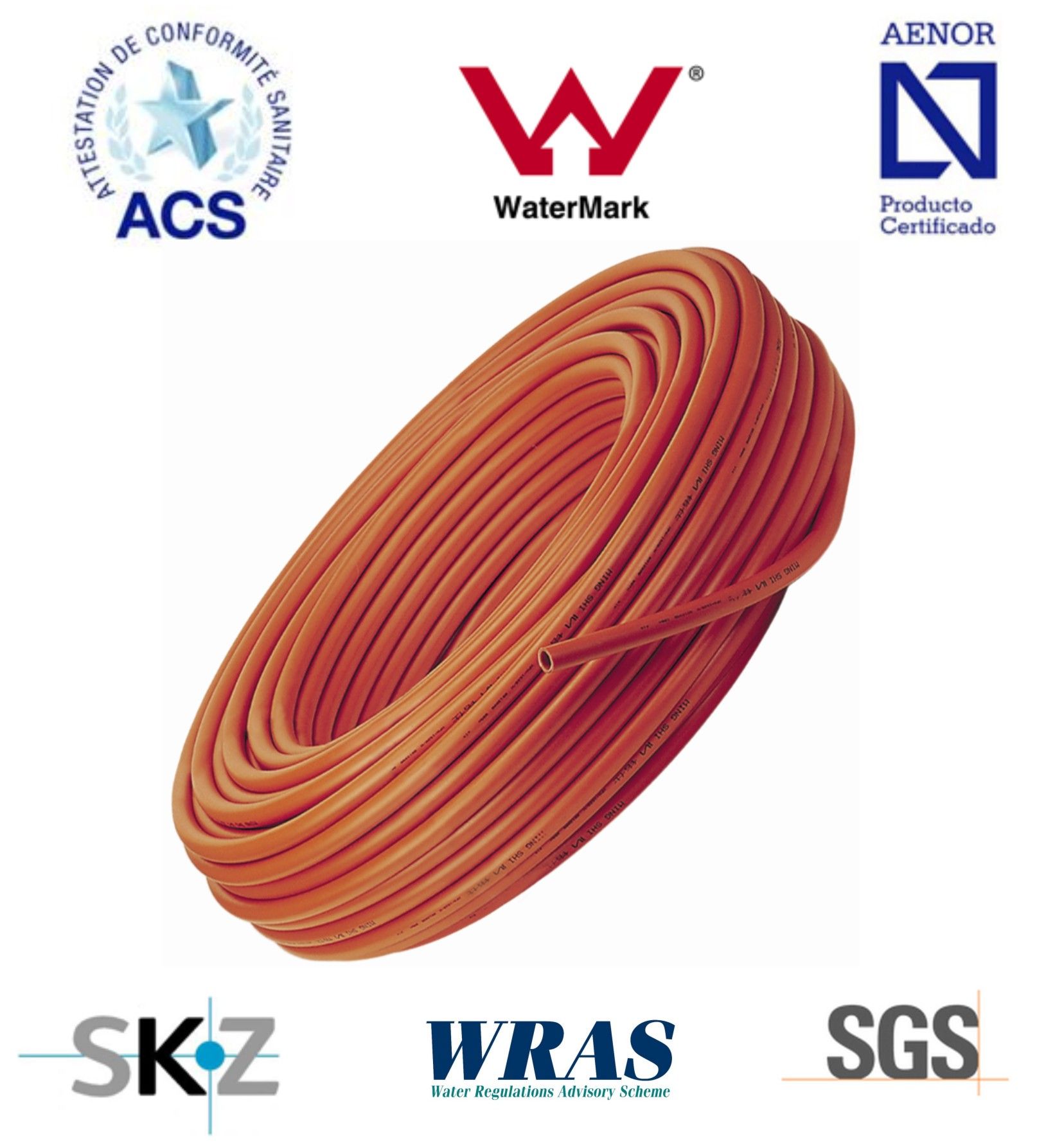

2. Certificates we have: AENOR, SKZ, ACS, WATERMARK, WRAS

3. Material: CONSTAB PEX

4. QC: Including materials checking and test,  spot inspection on production lines, and all the tests required by each standard done on the finished products in our lab rooms


5. Overlapped/buttwelding
-Spec. (mm)
16*2.0;18*2.0;20*2.0;20*2.25;25*2.5;
26*3.0;32*3.0;40*4.0;50*4.5;63*6.0

6. Lead time: 15-30days


7. Main makets: Europe, South Africa, Mecico, Asia, Australia

8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System

9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.



Zhejiang Mingshi Piping Systems Co., Ltd is the largest subsidiary of Mingshi Group. Established in 1999, the company now is one of the top manufacturers of plastic and composite pipes, tubes, brass fittings, manifolds and valves in China.

* Excellent R&D Ability
Mingshi accumulated rich expertise and experience to research and develop products independently. We have experienced staff and the newest equipments. All our products are made with the highest technical specifications, and incorporated the latest design technology.

* Strict Quality Assurance System
Mingshi acquired the ISO9001 quality system certification, and taking strict quality control according to the system. We have 3 internal laboratories covering the inspection from raw material to finished products. Our products are also evaluated by the authorized regulatory department of Chinese government, and the specifications are beyond national industry standards.

* Numerous Product Certifications
Mingshi acquired the ISO9001 quality system certification and ISO14001 environment system certificatation. We also acquired the AENOR certification in Spain, the SKZ certification in Germany, the WaterMark & StandardsMark certifications in Australia, the JASWIC certification in South Africa and CE certification in European Union.

* Widespread Market Approval
Products made by Mingshi are sold to 38 countries and regions which include Italy, Spain, Germany, UK, US and so on. With our good reputation and remarkable quality, Mingshi has become a famous brand among other Chinese export commodities, it also wins great favor from overseas buyers. We are a top supplier in China. We welcome any OEM and ODM projects.
