Orthopedic Power Tool for Vets

Orthopedic Power Tool for Vets
Price: US $ 420-1300/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: BJ8200
Item: Bj8200
Name: Multi Functional
Speed: Variable
Battery Voltage: 7.2V
Battery: Rechargeable
Use For: Small Bones ,Foot Hand ,Vets
Packing: Carton,Aluminum Box
Advantage: Lower Noise
Warranty: 2years
Certificate: Ce,ISO,FDA
Application: Orthopedic
Material: Steel
Feature: Reusable
Certification: ISO13485
Group: Adult
Type: Drill

Product Description

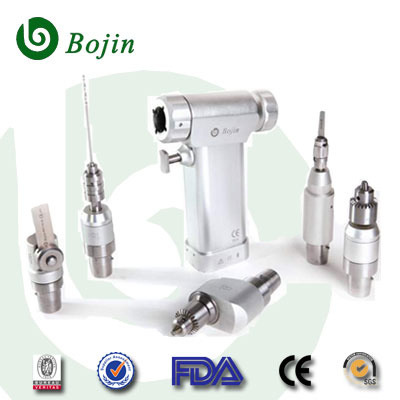

surgical orthopedic drill with battery for small bones
With a comprehensive range of quick change attachments assembled in one full functional handpiece,afford surgeon a convenient option.

Sagittal saw specification:
Output power≥30w
Speed(r.p.m) /
Oscillations (osc/min) 15000
Torque(Nm)/
Operation(V) voltage7.2
Sterilization135°C
Swings (°) /
Noise(db) ≤40

Bone drill Specification:
Output power≥30w
Speed(r.p.m) 0-950
Oscillations (osc/min) /
Torque(Nm)0.9
Operation(V) voltage7.2
Sterilization135°C
Swings (°) /
Noise(db) ≤40

Canulate drill Specification:
Output power≥20w
Speed(r.p.m) 0-460
Oscillations (osc/min) /
Torque(Nm)1
Operation(V) voltage7.2
Sterilization135°C
Swings (°) /
Noise(db) ≤40

Attachments for your selection:
1. Sagittal saw.
2. Bone drill.
3. AO bone drill.
4. Canulate drill.
5. Reciprocating saw.

Warranty:
The handpiece guarantees for one year, the battery and other fast consumption items guarantee for 3 months.

Advantages:
1.Our whole power tool can be autoclavable.
2.We can autoclavable for 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa,in this way the bacilli and virus which can not killed by the suffocating will be killed.
3.We use environment friendly nickel-metal hydride battery.
4.The machine has very low noise.
5.Our products has 1 year warranty period.

Notes:
1.Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C ,the motor will be damaged.
2.Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
3.The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
4.The battery cannot be sterilized ,it is not autoclavable.
5.The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
6.The battery space in the handpiece of the tool should not have any water,after sterilization.
7.The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is easy to be attrite,we suggest each blade only use for 1 surgery.


Established in 1993 and headquartered in Shanghai, Bojin, as an advanced orthopedic equipment manufacturer and solutions provider, Bojin focuses on the development and marketing of orthopedic-purpose motor products, X-ray imagescopes, treatment apparatus, and supporting surgical tools/parts. It has more than one hundred types of orthopedic products under 8 series, which have received QC certification of 3C, ISO9001, ISO13485, CE of the EU, and FDA Registry 3008787426. Its mission is to satisfy the needs of patients and medical care with innovative high-tech products and therefore become a promoter of people's orthopedic health. It has built a healthy sales and services network thanks to its 200 dedicated employees in the marketing companies or teams in more than 4countries and regions across North America, Europe and Asia. Its products are used in more than 60 countries and, in particular, in more than 20000 Chinese medical institutions 70% of which are 3A-rated hospitals. Bojin respects professionalism and talents and values core technology R&D. Its R&D team accounts for up to 20% of its staff, for it is fully aware that its top-notch professionals provide for the healthy operation of the company, the steady supply of high-quality medical equipment and comprehensive services for its global customers. Its innovation in products and solutions reduce social medical costs and therefore lessen the financial burden of patients. In the spirit of valuing life and health, Bojin, with a strong sense of social responsibility, are dedicated to innovating technology and upgrading product quality, thus ultimately helping improve the health of larger population. Its development is, as always, dependent upon technological innovation, common endeavor of the staff, and constant improvement of management philosophy. Each step forward has witnessed the staff's resilience and entrepreneurship, which, in turn, promotes the company's development and fortifies the staff's confidence in the company's prospect.
