OEM/ODM Strong Metal Alloy Hardware (DS22-2)
Price: |
US $ 1.74-1.82/Piece |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
Double Locking Carabiner DS22-2 |
Shape Type: |
Double Locking |
Gate Open: |
16mm |
Min Tensile Strength: |
45kn/10000lbs |
Minor Axis: |
16kn/3600lbs |
Technology: |
Cold Formed Steel |
Surface: |
Zinc Plated |
Material: |
Metal |
Type: |
Hook |
Usage: |
Personal Protective Equipment |
Brand: |
Fs |
Product Description
Specifications:

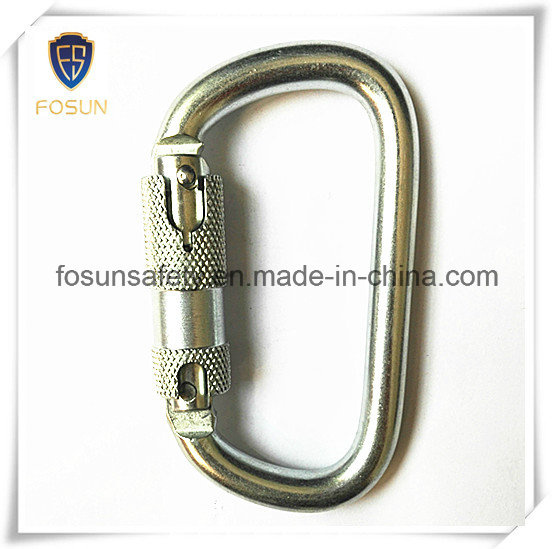

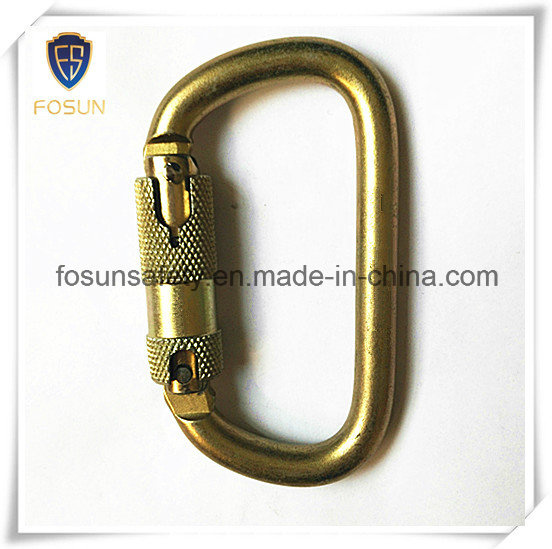

DS22-2 Kwiklock Carabiner
Cold formed Steel
100% proof loaded to 3600 lbs(16kN)
Min tensile strength 10000 lbs(45kN)
Min gste strength 3600 lbs(16kN)
Min side load strength 3600 lbs(16kN)
Captive Bar Availabie
Meets Or Exceeds:
ANSI/ASSE Z359.12-2009
CSA Z259.12-11
NFPA 1983-2006
EN362-2004
Finished:

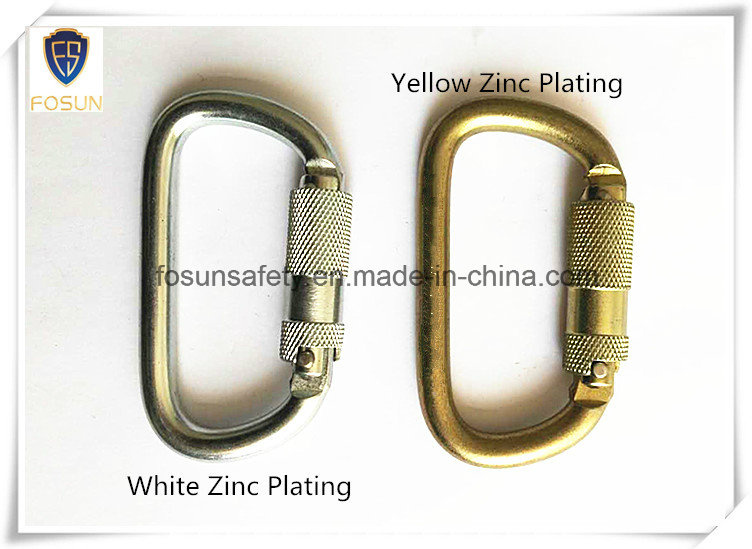

White/Yellow Zinc Plating
Weight:187gm
Strict manufacturing, Quality control and Testing
1,Tensile testing
100% proof loaded to 3600 lbs(16kN) tensile strength testing.
2,3D measure
With high quality, high clear camera system and the 3D professional measure system, exceeding which other measurement tools cannot measure the field.
3,Load testing
All connected parts of safety hooks are with 100% through 3600lbs (16kN) load testing.
4,Breaking tensile testing
To ensure that each product can meet the breaking force of international standard.
5,Salt spray testing
Better for product selection, structure design ,process selection, product transportation storage and using to provide effective information to provide or materials to resist salt spray corrosion.MINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARDStandard | CSA Z259.12-01 | CSA Z259.12-11 | ANSI Z359.12-1999 | ANSI/ASSE Z359.1-2009 | EN 362:2004 | NFPA 1983-2006 |
Major Axis | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 4500 lbs(20kN) | *** |
Gate Face | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | N/A |
Side Load | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | N/A |
Minor Axis | N/A | 3600 lbs(16kN)* | N/A | 3600 lbs(16kN)* | ** | *** |
* New Standard required Minor Axis Loading for connectors with non-integral eyes. ** EN:Basic Connectot 1575 lbs(7kN);Multi Use Connector 3378 lbs(15kN). *** NFPA:Light Use...Major Axis gate closed 6069 lbs(23kN);Major Axis gate open 1574 lbs(7kN) General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN);Minor Axis 2473 lbs(11kN) |
Our Advantage
1,10 years of rich experience in forging and production.
2,Using high quality materials, first-class equipment.
3,Stable products supply, good quality control and advanced technology.
4, Mark as customer's request, like customer's Company LOGO
5,Competitive factory price.
6,Free samples, you only pay the shipment charge.
7,Strict inspection before shipping.
8,Welcome customer's designs, OEM and ODM items.
9,On time delivery.
10,Good warranty and after-sales service.
Do you offer samples?
Yes, all products are available provided as samples for you to confirm the quality and color.
Do you accept sample order or small order?
Yes, we supply sample order for customer as well.
Can we have our logo on the product?
Absolutely! As long as ordered quantity meets our m.o.q and provide us with your drawing, we are able to place your logo on the product.
Can you help customer to design their own products?
Yes, Not only customize works, we also help you create special design products according to your needs. However you need to provide us the details. We will offer you samples before order confirmed.
What is the process of ordering and cooperating with your company?
1, Search for the products you prefer
2, Solve problems and confirm the products
3, Quote the selected products
4, Types of payment
5, Delivery method
6, After-sale service
How long will we receive the goods?
Basically, we do not have any stock in our warehouse, the products we offer to you are all-new. As you know , Products stored in the warehouse for a long time will not only lose the luster of the product itself, but also affect the use of the term. Therefore, according to our company policy, we usually start to arrange the production after order confirmed. The delivery time is normally 20-45 days after receiving down payment and also depend on the quantity.
Zhangjiagang FoSun Safety Equipment Co., Ltd. is located in the beautiful and rich, economically developed city along the Yangtze river - Zhangjiagang. With Shanghai to the east and Nanjing to the west, North pillow Yangtze River, we enjoy convenient water and land transportation. Our factory was founded in 2005, with over 10 years' experience, we have established a complete and scientific quality management system. Meanwhile, we are committed to manufacturing and developing, safety hooks, carabiners, d-rings, buckles and rope-grabs. In the last years, we have been working hard and getting outstanding achievements, most popular items have been certified by CE and got CE certificates like self locking form snap hooks.
We have a strong supply capacity. Like G9120, we can offer 1000000 pieces /year. The whole producing process, including the design, research, development and testing, is done in our company. We also have a provision to make products according to your special require and have many facilities in-house to ensure quality and on-time delivery.
For first-class products quality, efficient and attentive services, and great added value, we have earned great reputation and support from customers worldwide. Besides, we do not only manufacture products designed by us but also welcome customers' designs, OEM and ODM items. We are looking forward to having chance to cooperate and build business relationships with you.
Set up in 2005
The first connectors manufacturer in China with brand "FOSUN".
Over 10 years of experience in this field;
Business Range
- All safe belts hardware accessories
- Stamping & Forging
Staff: Around 45 in total
Building Area: Around 5, 000 Square Meters
