Model:
Cbdb
Capacity:
2000kg
Fork Width:
550mm
Fork Length:
1150mm
Voltage:
DC 24V
Color:
Red or Yellow
Type:
Powered Pallet Truck
Power:
DC Motor
Load Capacity:
1T - 5T

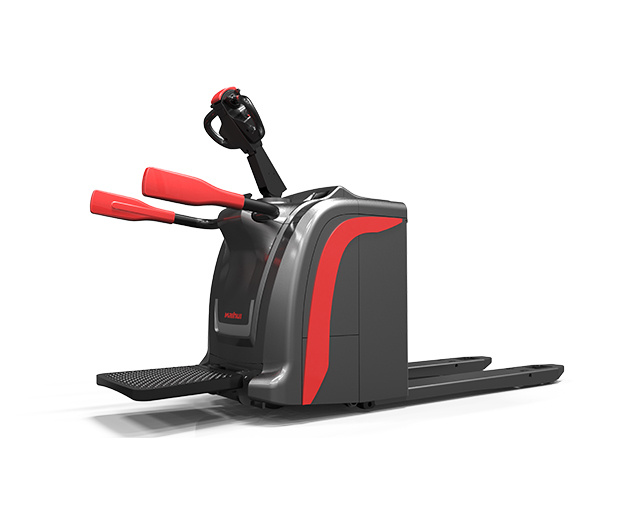

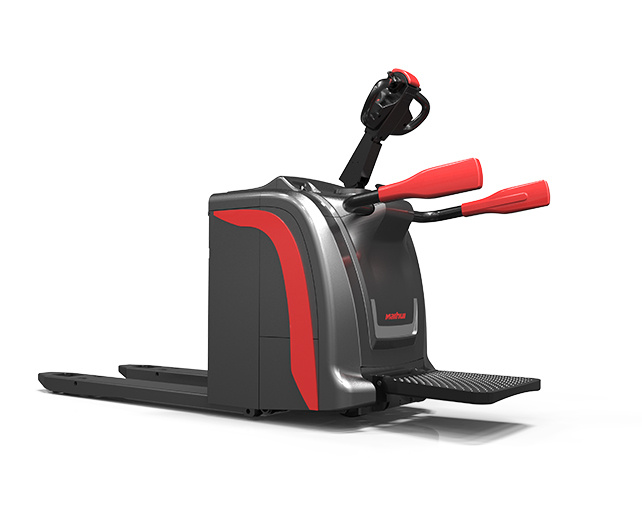

Product Description
Feature: 1. New design, national patented products (patent Number 201430452556.5). Unique Transformers series appearance; 2. Offers ab electric drive with a manual lift; 3. Battery indicator easily monitors your battery level; 4. Compact structure, save space, easily travel at the narrow aisle; 5. Ergonomic handle design, easy to operate without professional training; 6. Easy for maintaining access and repair.
Model
Unit
CBDB
Capacity
kg
2000
Operation method
electric drive, manual lift
Fork width
mm
550
Fork length
mm
1150
Single fork width
mm
150
Load center
mm
600
Max. lifting height
mm
200
Min. height
mm
85
Min.turning radius
mm
1630
Lift speed
mm/time
8
Travel speed (laden / unladen)
km/h
4/6
Descending speed
mm
controllable
Grade ability(laden / unladen)
%
5/8
Brakes
electric-magnetic
Driving wheel
mm
250*80
Loading wheel
mm
80*68
Balance wheel
mm
80*34
Electric motor
kw
1.5
Battery
V/Ah
24V / 85Ah
Overall length
mm
1800
Overall width
mm
680
Overall height
mm
1245
Net weight
kg
280
