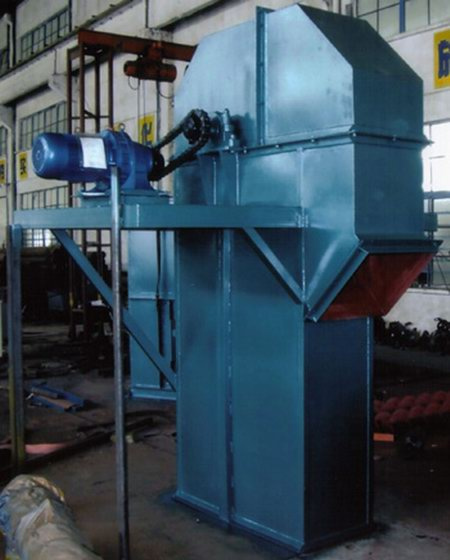

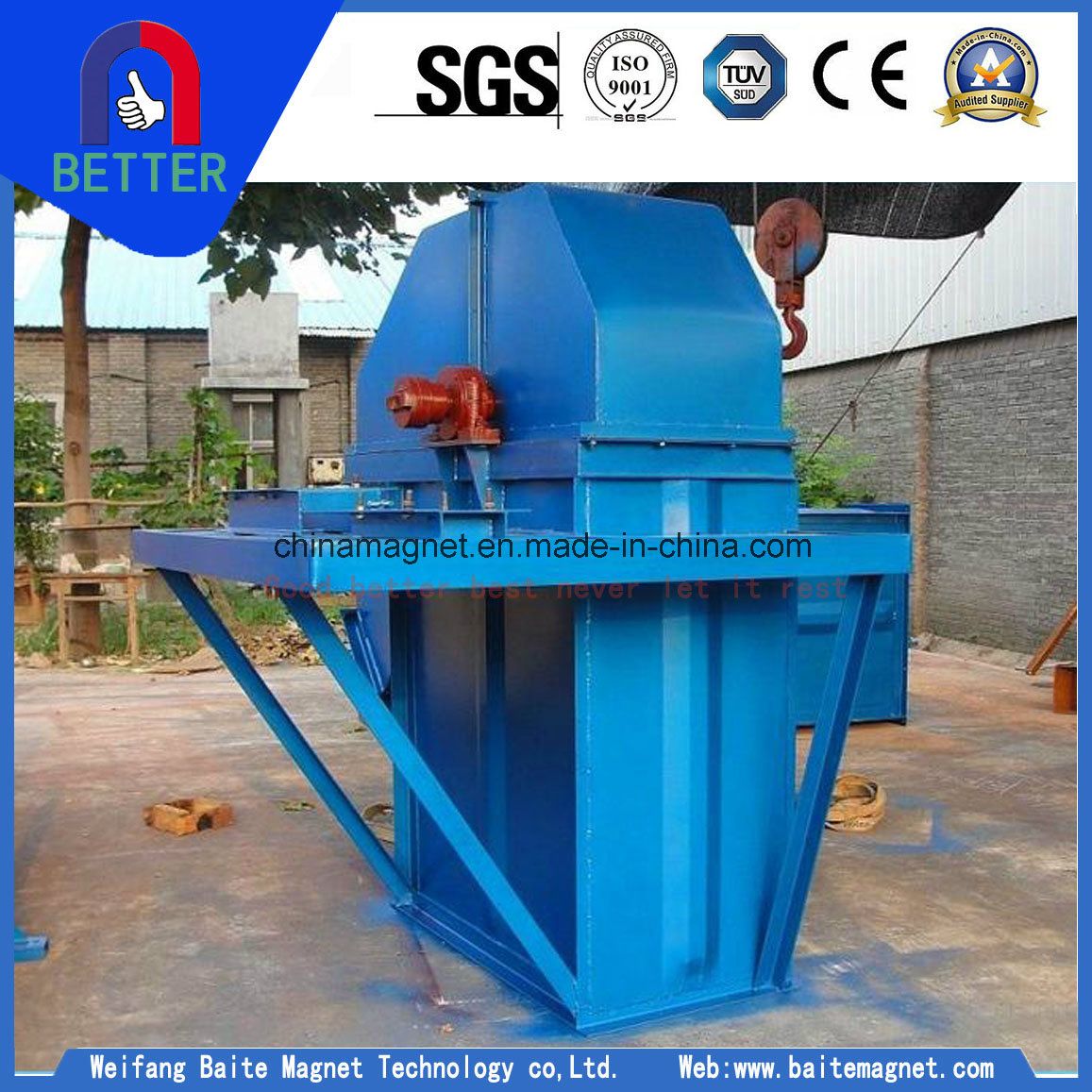

Ne Plate Link Chain Bucket Elevator for Power Plant

Ne Plate Link Chain Bucket Elevator for Power Plant
Price: US $ 500-15000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: NE
Capacity: 0.05~250 Tph
Dimension: Customized
After-Sales Service: Engineers Available Overseas
Installation: Engineer Guide
Price: Negotitation
Voltage: Optional
Type: Bucket Conveyor
Structure: Inclining Conveyor
Material: Stainless Steel
Material Feature: Oil Resistant
Certification: CE
Energy Saving: Energy Saving
Warranty: 1 Year
Customized: Customized
Condition: New
Color: Customized

Product Description

Introduction:
Bucket elevators are designed to move flowing powders or bulk solids vertically. Bucket elevators use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat.
Bucket elevators are not self-feeding, and are fed at a controlled rate. The buckets are usually where the chain or belt path is vertical or steeply inclined in a single plane. The buckets are returned back down to a tail pulley or sprocket at the bottom.
There are four broad classifications of bucket elevators: centrifugal, continuous, positive, and internal discharge. The most commonly used are the centrifugal and continuous discharge elevators.
Feature:
(1) Wide range of ascension. This kind of elevator has fewer requirements for material's kind, specialty and shape size. Not only can lift the general powder, small granule materials, but also can promote the larger grinding cut materials. Material temperature should lower than 250 °C.
 (2) Big carrying ability. Lifting capacity is 15m³/h-800 m³/h.
(3) Low energy consumption. The energy it consumes is 25%-45% of chain elevator.
 (4) Long service life. The transmission chain service life is more than 5 years.
(5) High hoisting height. It has low operation speed, stable in operating. Also it applies high plate chain with strength wear-resisting, so it can achieve high hoisting height.
 (6) Good sealing, little environmental pollution.
 (7) Good operating reliability. Advanced design principle and processing method, ensure the reliability of the machine running.

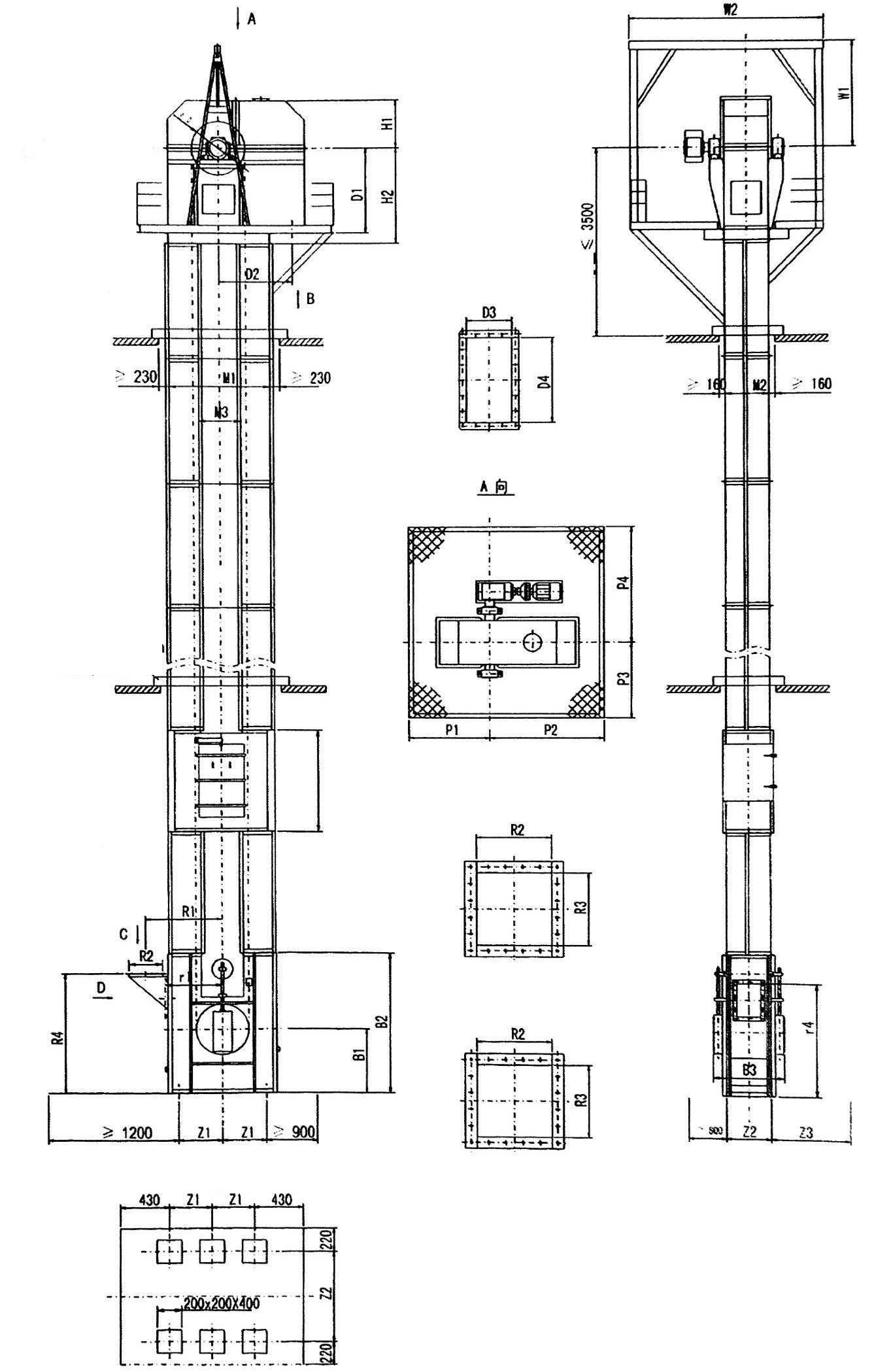

Overall Dimension Drawing:



Technical Parameters

ModeCapacity(m³/h)Max Paticle size(mm)
 percentage%
50255075100
NE15156550403025
NE30326075584740
NE50609075584740
NE100110130105806555
NE150170130105806555
NE200210170135108570
NE300320170135108570
NE40038020516512510590
NE500470240190145120100
NE600600240190145120100
NE800800275220165135110



FAQ
Q: Are you a factory ?
A:Yes,we are factory, which was established in 2006.
We focus on providing expert service including design, manufacture, installation & maintenance for the logistic industries & warehouse equipment.
Q: Terms of Payment:
A:30% of the total amount by TT as deposit, the balance to be paid by TT or L/C at sight before the machines leaving seller' factory.
100% irrevocable L/C at sight.
 Q:Time for preparation of goods:
A:The above machines shall be ready for delivery during 45 days from the date of receiving the deposit/LC, excluding the time of waiting for shipment. If there is any delay of delivery caused by seller, 3‰ of the total amount shall be paid to buyer each day, but this amount shall not exceed the amount of deposit; if the delay is caused by buyer, 3‰ of the total amount shall be paid to seller each day, but this amount shall not exceed 10% of total value of machines.
 Q:Guarantee period:
   A:The guarantee period for the above machines is twelve months from the date of putting into use, but not exceeds twenty-four months after the machines leaving seller's factory. It is not applicable for quick wear parts.
Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. Every step will be send to you in time.
Q: Can I customize shelving or racking at my own size?
  A: Sure.
Q: If i need the complete mineral processing line. is Baite able to help us build it?

A: Yes, we can help you combine a complete mineral processing line. and give you related professional advice as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Why Choose us?
1.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.one-year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.

3.Technical services
3.1 Design of production line and solutions according to buyer's requirement.
3.2 In 7 days after the receipt of deposit, the seller shall provide related technical documents for equipment installation, in addition to those with special requirements.
3.3 Before delivery, the seller can modify the previous solutions according to buyer's requirement.
4.After-sales service
4.1 During the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.
4.2 If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.
4.3 Beyond the guarantee period, the seller can provide services and fittings at a most preferential price.
4.4The seller can provide consultation and inspection services freely for other products, especially for the up-stream and down-stream products of our equipment.

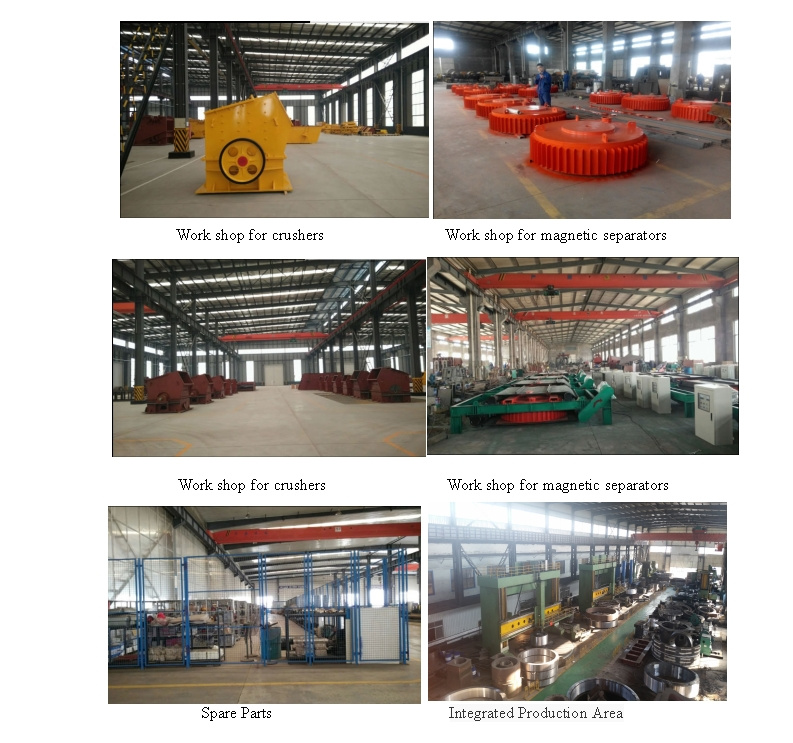

Work Shop View:







Weifang Baite Magnet Technology Co., Ltd. is a modern enterprise, which was founded by Weifang Hengli Magnet Equipment Factory and Weifang Kexin magnet equipment factory in conjunction with other domestic investors. It is the enterprise of producing magnetic and powder equipment, is the larger magnetic equipment manufacturer of research and development, engineering design, production and installation, commissioning and service.

The company mainly produces over 30 series 200 kinds of specifications, such as magnetic separator, de-ironing separator, crusher, disk-type, permanent magnet vacuum filter, metal detector, grinding equipment, aggregate equipment, grinding and processing equipment. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 3, 000 domestic customers with reliable and value-added and convenient professional equipment and programs, and at the same time, we occupy more than 60% magnetic separation equipment matching share of China ball mill, crusher, iron sand ship and other production industry.

There is no best, only better. Baite has firmly implemented ISO9001: 2000 international quality management system standard and ISO10012 international quality inspection system standard, relying on technological innovation, and continuously improve core competitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Baite...

With well-equipped professional engineers and strong technical force, Baite has been in this feild for 10 years, we cooperate with superior suppliers (Nord &Schneider)to keep our quality, the test of materials is free if you are interested in our machine, strict quality checked for every machine before packing, engineers available to service machinery overseas, inaddition, there is not only after sales service support, but also technology support

Baite company commitments the aim of " striving for survival with top quality, promoting development with good reputation, winning the world with good faith ". We warmly welcome all the friends to the cooperation!
