Movable Partition Wall Components and Hardware

Movable Partition Wall Components and Hardware
Price: US $ 12-99/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: NW-65
Operation: Top Hung Without The Floor Track
Panel Position: Top&Bottom Retractable Pressure Seal
Last Panel Closure: Telescopic Sleeve Panel
Acoustic: 38dB-58dB
Color: Sliver
Material: Aluminum Framed

Product Description

Who we are-The Neuwall Partition Walls is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.

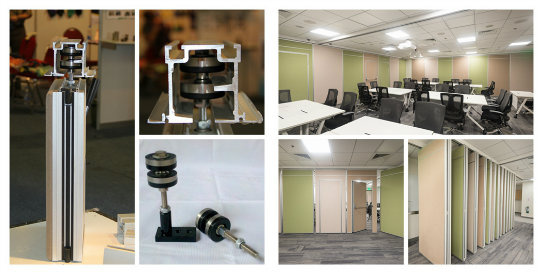

We can provide full range of component used in Operable Partition Wall

How to work--These sophisticated acoustic operable walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.The Neuwall operable wall system comprises panels up to 1200mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panels.
Our Advantage
Our easy lock-up set

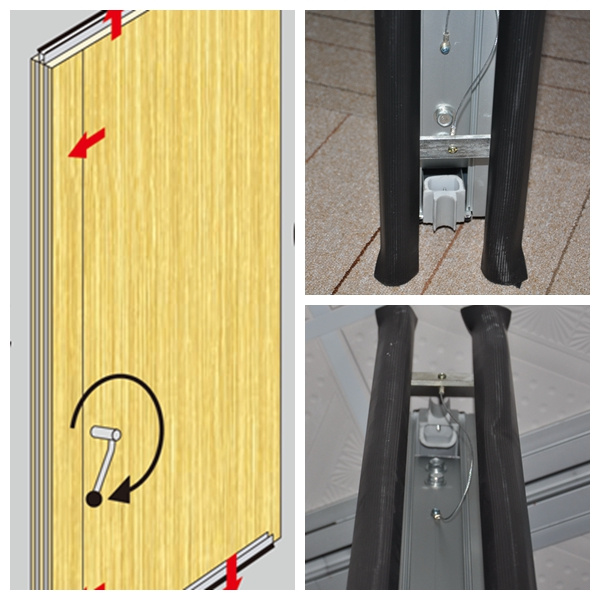

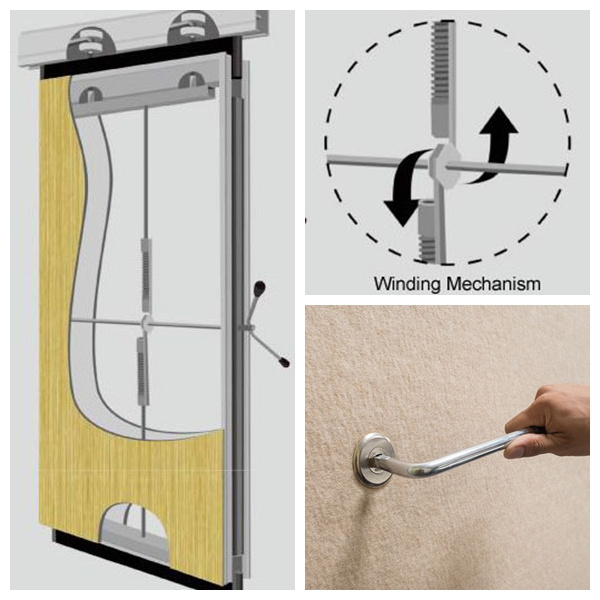

, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.


Retractable Pressure Seals--Once the panel is positioned, they are sealed in place with retractable           pressure seals

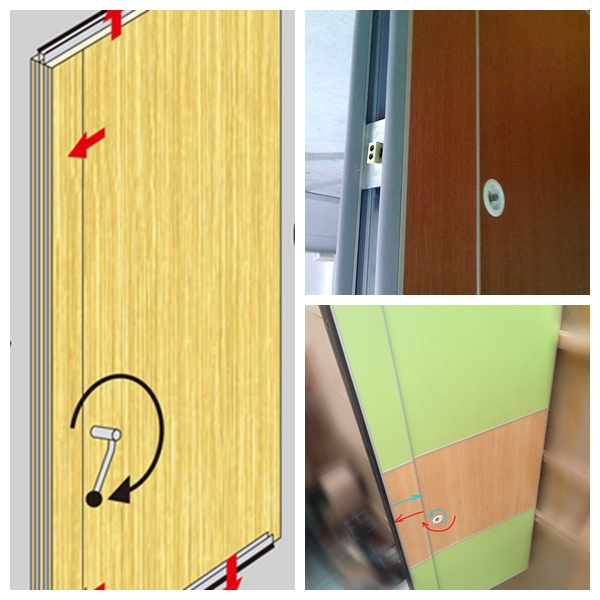

Telescopic sleeve panel--Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.

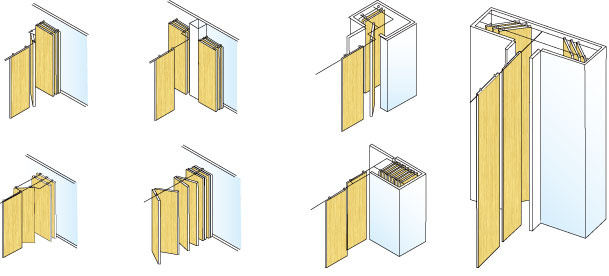

Panel Stacking-- Various Panel stacking way as your site requirement.

Product Information

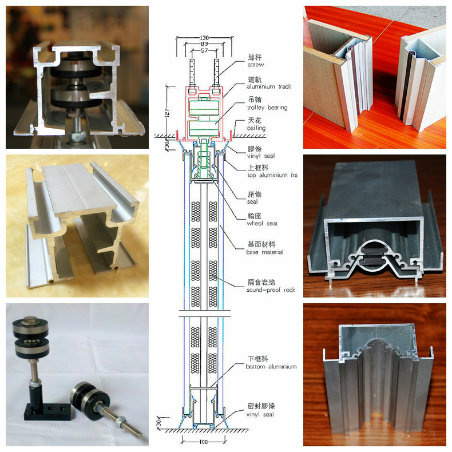

Panel Suspension: Top hunge system without the need for a floor track.
Panel Width: Each panel 600mm-1200mm.

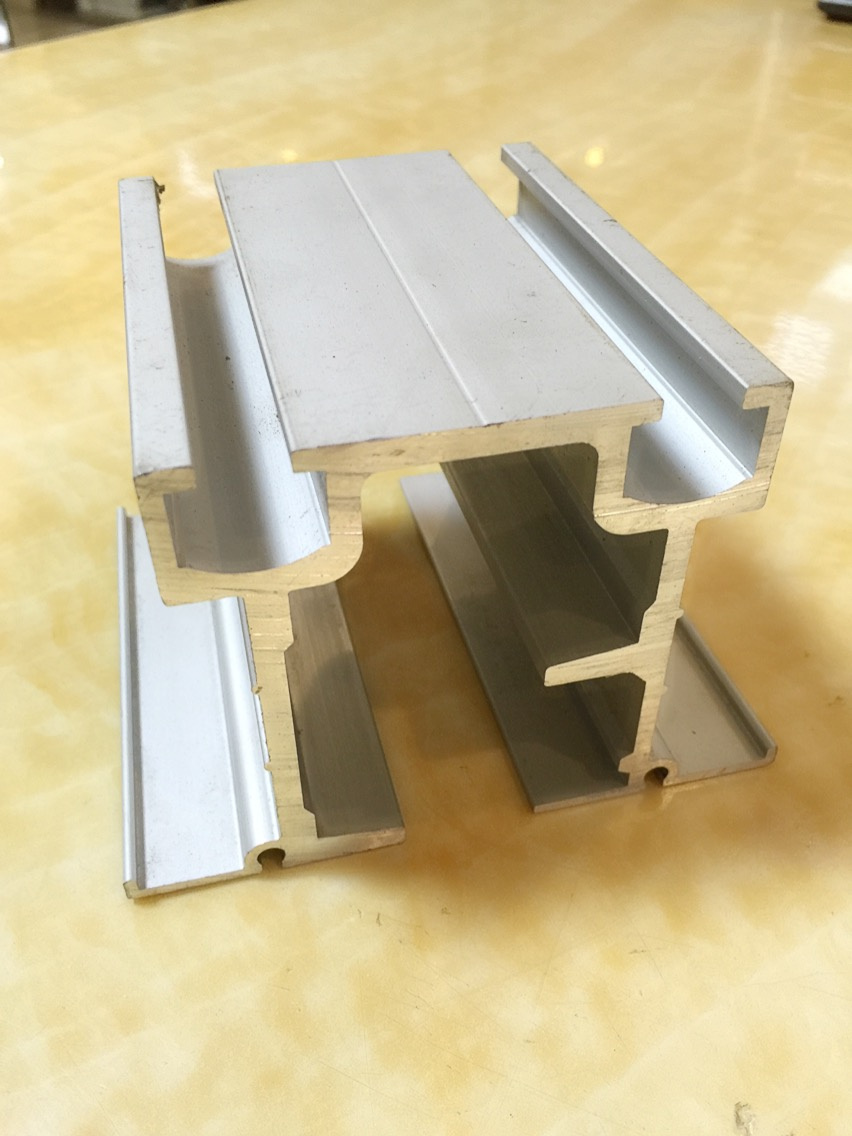

Track: Aluminum OR Steel Track
Roller on panel:   Single or double roller.
Panel Frames:    Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals:   Top and bottom pressure retractable seals ensure effortless moved and locked.
Module:700mm - 1200mm maximum.
Panel stacking:Numerous panel stacking options for complete flexibility.
Panel face:  MDF,Plywood, woven fabric, Leather,Natural wood veneer,             Melamine,Wood moldings, etc.
Finishes:Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
Features & Benefits
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
Various levels of sound reduction


Product Selection
Movable Partition Walls System-Technical Information
TYPE65A80A100A&125A
Panel suspensionTop hung onlyTop hung onlyTop hung only
Track systemSingle or twin pointSingle or twin pointSingle or twin point
Panel thickness65mm80mm100mm
Panel heightUp to 4000mm,Heights greater than 3000mm refer to our Technical DeptUp to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
Max height4000mm with heavy duty track 6000mm with heavy duty track 18000mm with heavy duty track or steel track
Panel width600-1200mm600-1200mm600-1200mm
Frame constructionAluminium/steelAluminium/steelAluminium/steel
Face material12mm12/15/18mm12/15/18mm
Fire safetyoptional Class I or Ooptional Class I or Ooptional Class I or O
Vertical profilesAluminium,anodised with sealing profiles,painted-optionalAluminium,anodised with sealing profiles,painted-optionalAluminium,anodised with sealing profiles,painted-optional
Retractable sealsAluminium,black with double rubber sealsAluminium,black with double rubber sealsAluminium,black with double rubber seals
Operation of sealsManual,with supplied operating handleManual,with supplied operating handleManual,with supplied operating handle
LockingOptional lock to pass doorsOptional lock to pass doorsOptional lock to pass doors
Pass DoorsSingle open in oanel or double open in two panelSingle open in oanel or double open in two panelSingle open in oanel or double open in two panel
Sound insulation40,44,47,50dB Rw40,44,47,50,53dB Rw40,44,47,50,53,58dB Rw
WeightApprox 33-40kg/sq MApprox 43-50kg/sq MApprox 63-70kg/sq M
FAQS
1)How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,80type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
65type--     Max height 3.5m, soundproof: 38dB to 43dB
80type-     Max height:5.5m,Soundproof: 43dB to 53dB
100type---    Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 43dB,48dB
2)What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
3)What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
4)How do the goods packing.
 corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
5)How to transport.
Sea transport is a common mode of transportation. In an emergency, can be air freight.
6)What is lead time?
The lead time is 7 days to 10 days.
7)How to install.
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
8)What you should do on site?
A beam(truss) should built on site for track installation.
Neuwall Partition Wall, established since 2004, was developed from Shanghai Gibo Group whose reputation for providing high-quality, cost-effective and energy efficiency Building Materials and today we offer the wide ranges of Movable Partition walls and Glass walls in the world, targeting large organizations, such as Hotel, Office, Conference room, Restaurant and Public area in the world that required the flexibility, quickly and efficiently reconfigure their space environments.

Our partitions are known for their quality construction, durability, beauty, versatility, easy movement, and quiet operation. All are customized to the project requirements. Although our partitions are most commonly finished with high pressure laminate, optional surfaces such as Fabric, Wall covering, Wood veneer and Melamine, etc, may be used as well. Panels may also be shipped unfinished for field application of murals or other custom surfaces to match or coordinate with the perimeter room construction.

Innovative Engineering

Dedicated to quality and customer service, we have an extensive engineering department that thoroughly evaluates and tests all products and materials. Our innovative engineers are always seeking the unique; And, as a result, we have more accomplished and more advancements in the Movable partition field than other manufacturers in our industry. So we are Industry-leading acoustics, Multi-directional track systems, fire safety, and ease of operation.

Worldwide Availability

Neuwall's headquarters are located in Shanghai, China, composed of two manufacturing facilities in Shanghai and Guangzhou city. We provide the movable partition walls and service for the clients in USA, Brazil, the Middle East and Southeast Asia.

Customized Products

Although we have a comprehensive selection of movable partition walls, glass wall occasionally our standard products won't meet your needs. Most products may be modified for specific design requirements. Examples include: Notched panels to soffits, window inserts, or special sized panels to seal against sloped floors or stairs

We offer

Detailed initial client consultation

Bespoke design

Digital CAD drawings

Highest quality manufacturing and production

Professional and efficient Installation service

12 month guarantee

Guaranteed customer satisfaction
