| Price: | US $ 7-20/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | JAB |
|---|---|
| Condition: | New |
| Precision: | High Precision |
| Material: | S45c SKD11 SKD61 |
| Hardness: | HRC58~60, HRC61~64, HRC59~61 |
| Shaping Mode: | Plastic Molding Die |
| Application: | Hardware |
| Installation: | Fixed |
| Standard: | Misumi/Hasco/Dme/Customized |
| Material | Inner Hardness | Surface Hardness | Heat Treatment |
| S45C | SR HRC50~55 | SR HRC50~55 | Partial |
| SKD11 | HRC58~62 | HRC58~62 | Vacuumed |
| SKD61 | HRC34~38 | HV900~1100 | Nitrided |
| HRC50~54 | HRC50~54 | Vacuumed |

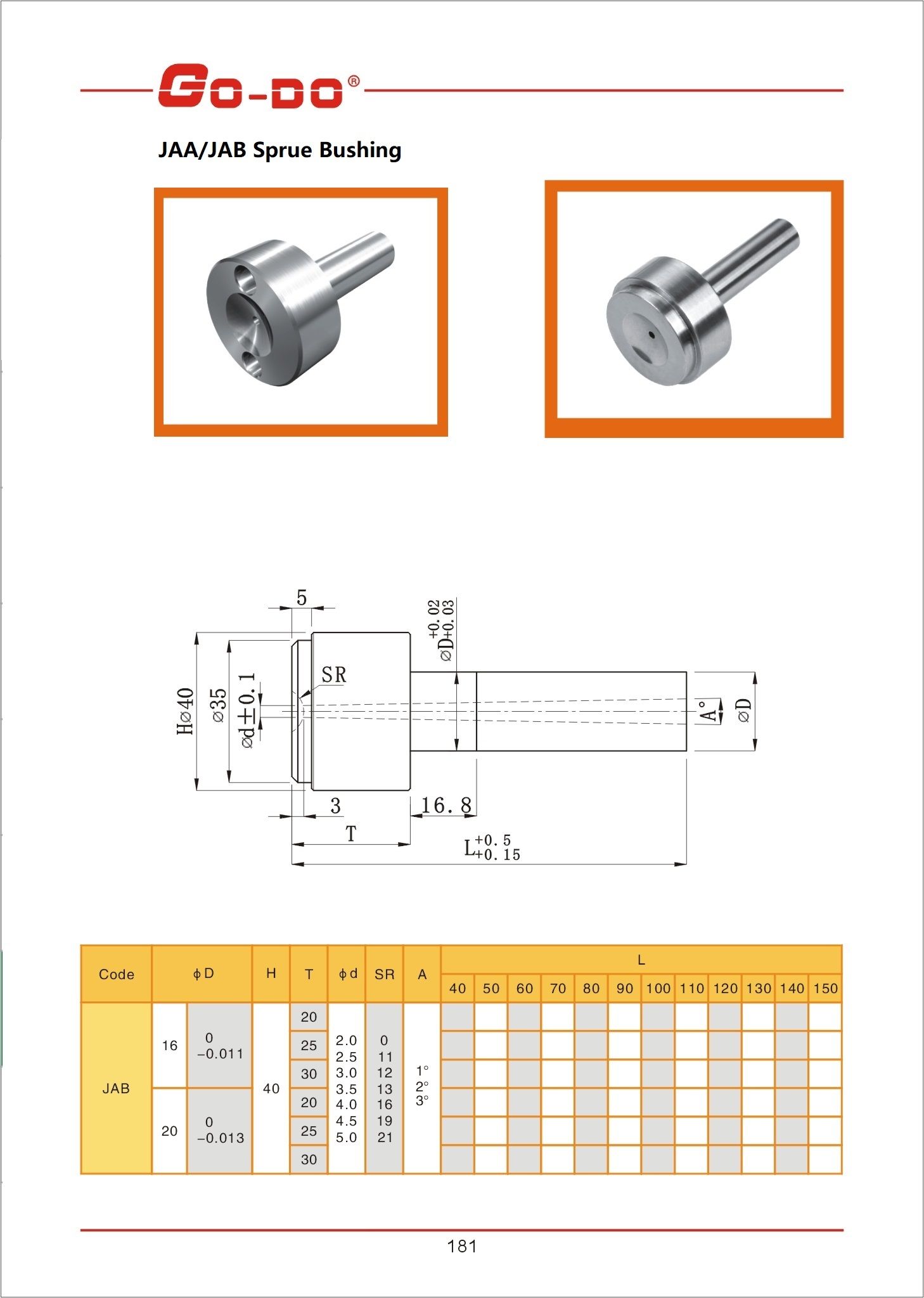

| Code | ΦD | H | L | T | Φd | SR | A | |
| JAB | 16 | 0 -0.011 | 40 | 40-150 | 20 | 2.0 2.5 3.0 3.5 4.0 4.5 5.0 | 0 11 12 13 16 19 21 | 1° 2° 3° |
| 25 | ||||||||
| 30 | ||||||||
| 20 | 0 -0.013 | 20 | ||||||
| 25 | ||||||||
| 30 | ||||||||
| Manufacture | Shenzhen Godo Precision Parts Co., Ltd. |
| Mold type | Plastic injection mould,Die-casting injection mould,Precision machining |
| Industry | Automotive,Medical,Cosmetics,Mobile Phone,Stationery |
| Mould size | According to customer requirements |
| Material | DAC, SKH-51, HPM38, STAVAX, 1.2343, 1.2344, 1.2767, 8407, ect |
| Standard | DEM,HASCO,Misumi,Puch ect |
| Surface | Mirro polished,Technical Polished,Mold Tech texture, Nitriding , |
| plating ,VDI texture ect | |
| Delivery | 10-15 days after payment |
| Shipment | Sea shipment,Air shipment |
| Package | in bubble bag,plastic bag,carton,Customized |
| QC System | 100% inspection before shipment |
| Equipment | The main processing equipment: Taiwan centerless grinder, |
| within / outside the original red molding machine, | |
| surface grinder, table lathe, high-speed lathes, | |
| CNC lathes, sparks machine ect |
