Marine Hardware of Ship's Anchor Chain
Price: |
US $ 600-2000shackle |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1shackle |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Prod Model: |
HT60 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ship Anchor Chain Length: |
1 Shackle 27.5m |
Mooring Chain Certificate: |
CCS, Lr, Gl, ABS, Dnv, Nk, BV, RS, Rina, Kr |
Marine Chain Diameter: |
12.5 to 174mm |
Weight Per Shackle: |
Depends on Different Diameter Chain |
Anchor Chain Type: |
Stud and Studless |
Marine Hardware Package: |
Naked or According to Customer's Require |
Link Chain Appliaction: |
Ship Anchorage or Mooring |
Marine Parts: |
Anchors |
Engine Type: |
Nil |
Usage: |
Anchor and Mooring |
Material: |
Iron and Steel |
Type: |
All Types of Vessel |
Product Description

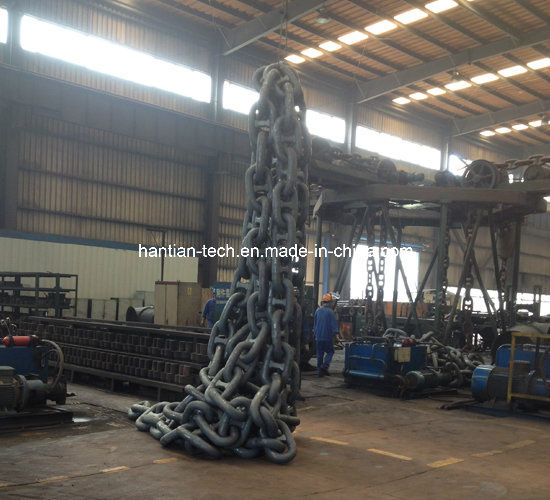

Marine hardware Anchor chain or mooring chain has adopted the most advanced industrial technology and equipment in the world. According to international standard ISO 1704. Chinese National standard GB/T549 and the specification stipulated: Grade 2 and 3 marine stud and stud-less flash welded chains, ORQ, R3, R3s, R4 mooring chains with diameters ranging from 12.5 to 174mm. And the Various accessories to match mooring chain mentioned above as well. It can also manufacture variety of products according to the user's requirements.
Marine hardware Anchor chain mentioned above have been approved successively by the world major marine classification societies: CCS(P. R. China), LR(U. K), GL(Germany), ABS(U. S. A), DNV( Norway), NK(Japan), BV(France), RS(Russia), RINA(Italy), KR(Korea). The offshore mooring chain has been licensed with API Monogram. It can provide its customers with the product certificate issued by any of above classification societies.
Anchor chain has a complete quality assurance ISO9000 system with advanced physical and chemical testing means and equipment for inspection. The main product MARINE SELDED CHAIN was awarded gold medal as top quality medal in China. Its export is the largest in that of same occupation in China.
The anchor chain sell well to more than 30 countries and regions, such as Japan, Korea, US, Germany and Norway.
STUDLESS ANCHOR CHAIN TESTING |
D(φ) DIAMETER | CHAIN LINK SIZE | BM1 U1 OPEN LINK CHAIN | BM2 U2 OPEN LINK CHAIN | BM3 U3 OPEN LINK CHAIN | APPROX. WEIGHT |
L OUTSIDE LENGTH | B OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKING LOAD | 27.5M |
INCH | MM | MM | MM | KN | KN | KN | KN | KN | KN | KG |
1/2 | 12.5 | 75 | 45 | 28.75 | 57.81 | 41.20 | 82.60 | 56.40 | 112.80 | 85.41 |
9/16 | 14 | 84 | 50.4 | 34.78 | 69.93 | 51.00 | 101.90 | 70.76 | 141.51 | 106.55 |
5/8 | 16 | 96 | 57.6 | 47.10 | 94.72 | 66.20 | 132.30 | 92.42 | 184.83 | 139.43 |
11/16 | 17.5 | 105 | 63 | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.10 | 178.35 |
3/4 | 19 | 114 | 68.4 | 66.42 | 133.57 | 93.60 | 187.20 | 130.32 | 260.64 | 217.68 |
13/16 | 20.5 | 123 | 73.8 | 77.33 | 155.49 | 108.64 | 217.27 | 151.70 | 303.42 | 229.14 |
7/8 | 22 | 132 | 79.2 | 89.06 | 179.08 | 125.40 | 250.90 | 174.40 | 349.40 | 264.49 |
15/16 | 24 | 144 | 86.4 | 105.98 | 213.25 | 149.90 | 298.90 | 207.90 | 415.80 | 341.82 |
1-1/16 | 26 | 156 | 93.6 | 124.38 | 250.12 | 175.40 | 350.80 | 244.00 | 488.00 | 369.94 |
1-1/8 | 28 | 168 | 100.8 | 144.26 | 290.08 | 203.80 | 406.70 | 283.00 | 566.00 | 427.04 |
1-3/16 | 30 | 180 | 108 | 165.60 | 333.00 | 234.20 | 467.50 | 324.90 | 649.80 | 490.98 |
1-1/4 | 32 | 192 | 115.2 | 188.42 | 378.88 | 265.60 | 531.20 | 369.60 | 739.30 | 559.65 |
1-5/16 | 34 | 204 | 122.4 | 212.70 | 427.72 | 299.90 | 599.80 | 417.30 | 834.60 | 671.52 |
1-7/16 | 36 | 216 | 129.6 | 238.46 | 479.52 | 336.10 | 672.30 | 467.80 | 935.70 | 707.85 |
1-1/2 | 38 | 228 | 136.8 | 265.70 | 534.28 | 374.40 | 748.70 | 521.30 | 1042.50 | 788.98 |
1-9/16 | 40 | 240 | 144 | 294.40 | 592.00 | 414.50 | 829.10 | 577.60 | 1155.20 | 869.36 |
1-5/8 | 42 | 252 | 151.2 | 324.58 | 652.68 | 457.70 | 915.30 | 636.80 | 1273.60 | 959.30 |
1-3/4 | 44 | 264 | 158.4 | 356.22 | 716.32 | 502.70 | 999.60 | 698.90 | 1398.00 | 1111.25 |
1-13/16 | 46 | 276 | 165.6 | 389.34 | 782.92 | 548.80 | 1097.60 | 763.90 | 1527.80 | 1152.07 |
1-7/8 | 48 | 288 | 172.8 | 423.94 | 852.48 | 597.80 | 1195.60 | 831.70 | 1663.50 | 1256.26 |
2 | 50 | 300 | 180 | 460.00 | 926.09 | 648.80 | 1239.60 | 902.50 | 1805.00 | 1360.41 |
2-1/16 | 52 | 312 | 187.2 | 497.54 | 1000.48 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
2-1/8 | 54 | 324 | 194.4 | 536.54 | 1078.92 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
2-3/16 | 56 | 336 | 201.6 | 577.02 | 1160.32 | 809.09 | 1618.18 | 1132.10 | 2264.20 | 1715.97 |
2-5/16 | 58 | 348 | 208.8 | 618.98 | 1244.68 | 867.91 | 1735.82 | 1214.40 | 2428.80 | 1844.50 |
2-3/8 | 60 | 360 | 216 | 662.40 | 1332.00 | 928.80 | 1857.60 | 1299.60 | 2599.20 | 1973.29 |
2-7/16 | 62 | 372 | 223.2 | 707.30 | 1422.28 | 991.75 | 1983.50 | 1387.68 | 2775.36 | 2101.56 |
2-1/2 | 64 | 384 | 230.4 | 753.66 | 1515.52 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.47 |
2-9/16 | 66 | 396 | 237.6 | 801.50 | 1611.72 | 1123.85 | 2247.70 | 1572.52 | 3145.04 | 2398.10 |
2-11/16 | 68 | 408 | 244.8 | 850.82 | 1710.88 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
2-3/4 | 70 | 420 | 252 | 901.60 | 1813.00 | 1264.20 | 2528.40 | 1768.90 | 3537.80 | 2697.65 |
Warmly welcome users and customers come to hold trade talks and technology communications.
Welcome order! ! !
Ningbo Hantian Electronics Technology Co., Ltd. is committed to developing, manufacturing and selling all kinds of marine life-saving, fire fighting, ship related accessories & equipments and water leisure products. It is located in Cixi City, Zhejiang Province, near Ningbo and Shanghai Ports.
Marine life-saving products include life raft, life boat, life jack, rescue boat, lifebuoy, immersion suit, ladder, signal, life buoy light, flashlight, headlamp, life line etc.
Fire-fighting equipments mainly include dry powder fire extinguisher, carbon dioxide fire extinguisher, foam & water fire extinguisher, fire hose, fire couplings, fire valve, fire sprinklers, spray gun, emergency escape breathing devices, self-container positive pressure air breathing apparatus, fireman protective suit, chemical protective suit, fire-fighter's outsuit.
Ship related accessories and equipments include anchor, chain, shackles, rope, rubber fender, airbag, ladder, water testing bag, Crane, Davit, Winch etc.
We also sells other water leisure products like kayak, canoe, inflatable rubber boat, electric trolling motor etc.
Products quality is our first priority and approaching to customer is based on the principle of integrity and continuously striking for better customer satifaction. We had implemented ISO9001: 2000 standard to provide a world class service and product quality. Most of our products have obtained approval certifcate of CCS, ABS, GL, NK, BV, DNV. Our marine products developing strict accordance with the standards of SOLAS, MED, USCG, LSA, IMO, MSC. 81(70), EN.
Our marine life-saving and water leisure products export to Germany, Sweden, Norway, Switzerland, UK, Spanish, Fance, Italy, USA, Australia, Japan, Korea, Southeast Asia and Midelle East.
Our company slogan "Technology Ceative Value, Build Hantian Base On Integrity. " Our products are your best choice; Your choice is our greatest honor. Your safety, our duty. Customer satisfaction is our mission.
