Prod Model: |
D-JF11801-0400 |
Application: |
Metal |
Performance Classification: |
MID-Range CNC Machine Tools |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Numerical Control: |
Nc |
Movement Method: |
Contour Control |
Control Method: |
Closed-Loop Control |
Material Composition: |
89% Carbide, 10%Co and 1% Others |
Processing And Usage: |
CNC Machine Tools |
Export Market: |
Global |
Product Description

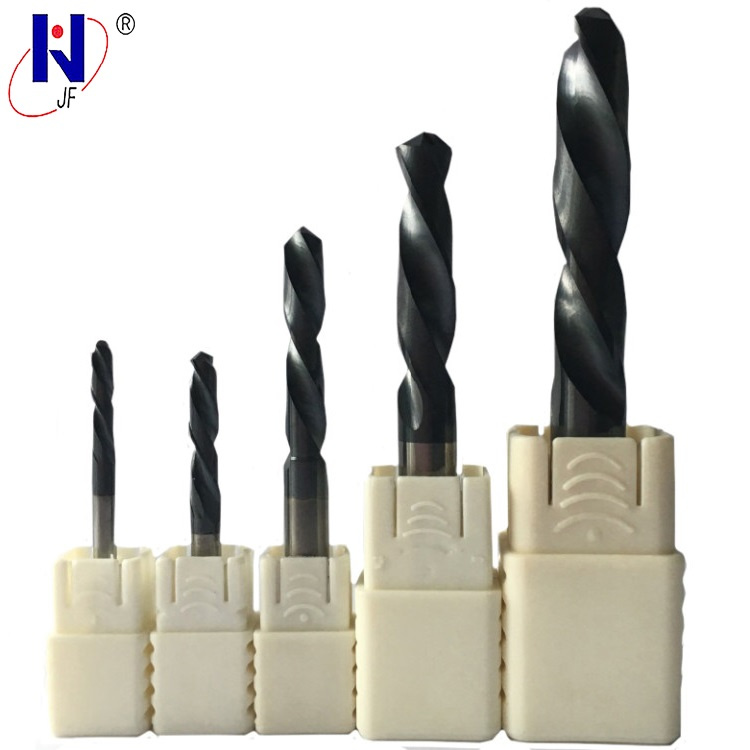

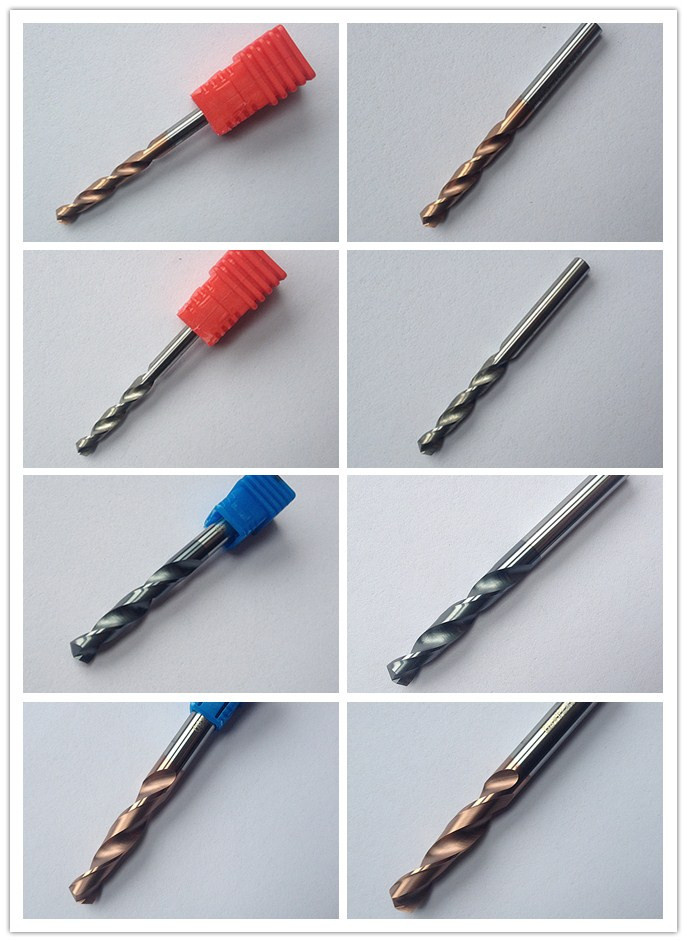

Manufacture Solid carbide 3D Twist drill bit
1. Specifications
- Tungsten Carbide of TIANT/TIN/TICN
- HRC45/55/60/65
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;
2. Raw Materials
- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;

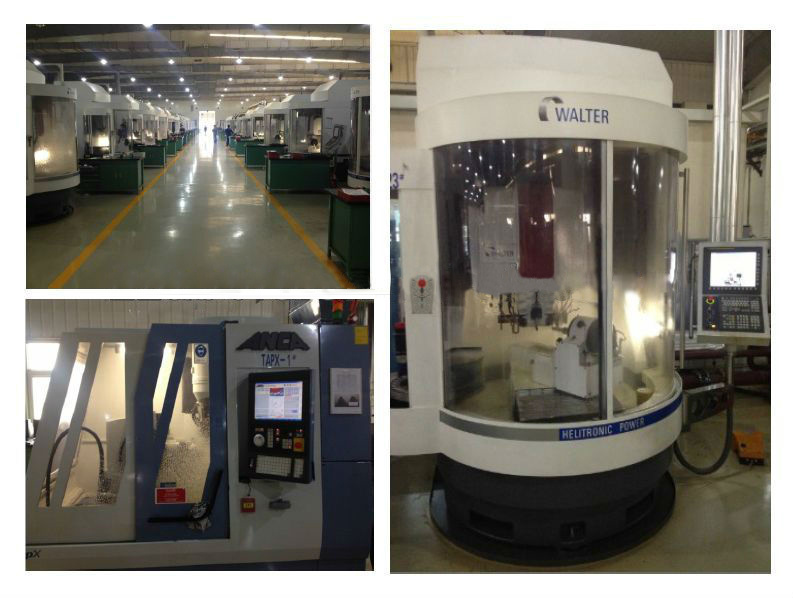

3. Our Workshop and Advanced Equipments
- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;
4. Our advantages
- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;
5. Packages
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters, print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.
6.Delivery Time
In general,within 6-12 days after received your deposits.
According to the quantity. We are located in Changzhou city of Jiansu China.5 km away formChangzhou Airport and 200 km away form Shanghai. The transportation is very convenient.
7.Applied Fields
Used for rod mill such as cement plant, electric power plant, mine, quartz sand plant, silica sand plant, sand aerated industry, coal chemical industry, gas concrete plant, etc.
8.Characteristics
A) Uniform hardness
B) No rupture
C) Even wearing
D) No bending
9.Our Service
PaymentTerm: T/T (Bank tranfer), Western Union, PayPal.
Customized or special cutters are welcome
OEM orders are welcome
10.Contact Information
Tel No.:86-0519-88995836
Note:
1. All the end mills, drills and reamers should be used depending on there workpieces, then it may be play the biggest roles.
2. Cutting tools are sharp, when usage it please careful.
code | diameter(mm) | cutting length | shank diameter | total length |
D024-1 | 0.5 | 6 | 0.5 | 30 |
D024-2 | 0.8 | 8 | 0.8 | 30 |
D024-3 | 1 | 10 | 1 | 30 |
D024-4 | 1.2 | 12 | 1.2 | 35 |
D024-5 | 1.5 | 16 | 1.5 | 35 |
D024-6 | 1.8 | 16 | 1.8 | 40 |
D024-7 | 2 | 18 | 2 | 40 |
D024-8 | 2.5 | 20 | 2.5 | 48 |
D024-9 | 3 | 25 | 3 | 50 |
D024-10 | 3.5 | 14 | 3.5 | 55 |
D024-11 | 4 | 16 | 4 | 55 |
D024-12 | 4.5 | 18 | 4.5 | 55 |
D024-13 | 5 | 20 | 5 | 66 |
D024-14 | 5.5 | 22 | 5.5 | 66 |
D024-15 | 6 | 24 | 6 | 66 |
D024-16 | 6.5 | 26 | 6.5 | 66 |
D024-17 | 7 | 28 | 7 | 66 |
D024-18 | 7.5 | 30 | 7.5 | 77 |
D024-19 | 8 | 32 | 8 | 77 |
D024-20 | 8.5 | 34 | 8.5 | 77 |
D024-21 | 9 | 36 | 9 | 77 |
D024-22 | 9.5 | 38 | 9.5 | 77 |
D024-23 | 10 | 40 | 10 | 88 |
D024-24 | 10.5 | 42 | 10.5 | 88 |
D024-25 | 11 | 44 | 11 | 88 |
D024-26 | 11.5 | 46 | 11.5 | 88 |
D024-27 | 12 | 48 | 12 | 88 |
D024-28 | 12.5 | 50 | 12.5 | 95 |
D024-29 | 13 | 52 | 13 | 95 |
D024-30 | 13.5 | 54 | 13.5 | 95 |
D024-31 | 14 | 56 | 14 | 95 |
D024-32 | 14.5 | 58 | 14.5 | 95 |
D024-33 | 15 | 60 | 15 | 105 |
D024-34 | 15.5 | 62 | 15.5 | 105 |
D024-35 | 16 | 64 | 16 | 105 |
D024-36 | 16.5 | 66 | 16.5 | 105 |
D024-37 | 17 | 68 | 17 | 105 |
D024-38 | 17.5 | 70 | 17.5 | 115 |
D024-39 | 18 | 72 | 18 | 115 |
D024-40 | 18.5 | 74 | 18.5 | 115 |
D024-41 | 19 | 76 | 19 | 115 |
D024-42 | 19.5 | 78 | 19.5 | 115 |
D024-43 | 20 | 80 | 20 | 12 |
Xute Jifeng Tools Factory is located in Changzhou, Jiangsu, China. XinBei XuTe JiFeng tools factory is a professional manufacturer of NC Tools with well-equipped testing equipment and strong technical force, is established in 2006, and has enjoyed good reputation in cutting tools field for 5 years.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. We professionally produce "LENO"brand sets of tools, tools of machine and CNC surrounding affiliated fittings series.
We specialize in the following products:
Tool holders
Cutter bars
Boring tools
Turing tools
Milling tools
Thread tools
Corn mills
Tungsten steel end mills
Cutter heads
Drill bits
Collets
Inserts
Collet chucks
Chucks
Nuts
Wrenches
And Other machine accessories
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.
"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.
Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
