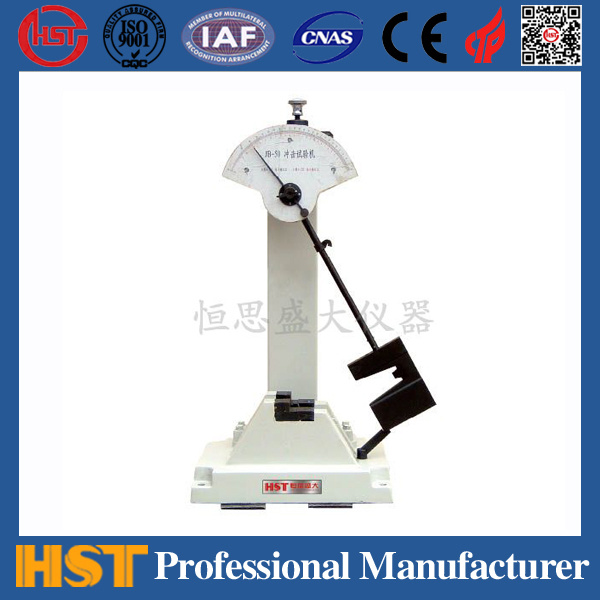

JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. 2. Standards: ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007 3. Main Technical Specifications:
Model
JB-300
Reading of dia
0 - 150J (1J/grid); 0 - 300J(2J/grid)
impact energy
150,300J
The distance between the pendulum shaft and impact point
750mm
Impact speed
5.2m/s
Pre-rising angle of the pendulum
150°
Specimen bearer span
40+0.2mm
Round angle of the jaw
R1-1.5mm
Round angle of impact edge
R2-2.5mm
Angle accuracy
0.1°
Power supply
Manual
Standard specimen dimension
10mm×10mm×55mm
Dimensions (mm)
1000×630×1520mm
Net Weight (kg)
320Kg
4. Configurations: 5.1 Main unit----------1 set 5.2 Pendulum-----2 pcs 5.3 Span specimen plate (L = 40mm)----1 pc 5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc 5.6 Stripping attachment----1 pc 5.7 Internal hexagonal wrench (S=12mm)---1 pc 5.9 Anchor bolts (M16x300mm)---4 pcs
