Prod Model: |
HGBRM-35A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cutter Capacity: |
12 - 35 |
Cutter Depth: |
50mm |
Twist Drill: |
1.5 - 13 |
Spindle Holder: |
19mm |
No Load Speed: |
595rpm |
Electric Data: |
230V / 50Hz / 1200W,120V / 60Hz / 1200W |
Magnetic Adhesion: |
13000n |
Core Size: |
160 X 80 X 50mm |
Stoke: |
190mm |
N. W: |
13.5kg |
Product Description

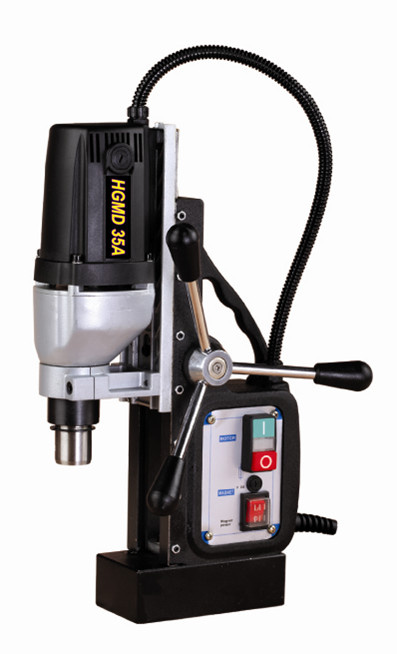

Article:Magnetic Drill
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform .Very potable and universal drilling machine for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal machine in steel contruction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers, machinery manufacturing, environmental protection, oil and gas pipline industries.
Performance: Before switch on the magnetic base,there is electronic protection switch.The protection switch avoid any mistake or unintentionally handl and to assure it safe. If its magnetic base loss power for outwards effection,the machine shall safety cut off .
MANUFACTURING features:
Aluminium frame formed and manufactured by CNC Machine.
Stable and high quality motor.
Two-Speed variable,Non-Speed available.
DIN, ANSI, BS STANDARD.
CE, TUV, EMC,CCC Certificated.
HGMD 35A
Cutter Capacity: Φ 12 - Φ 35
Cutter Depth: 50mm
Twist Drill: Φ 1.5 - Φ 13
Spindle holder: 19mm
No Load Speed: 595RPM
Electric Data: 230V / 50Hz / 1200W
120V / 60Hz / 1200W
Magnetic Adhesion: 13000N
Core Size: 160 x 80 x 50mm
Stoke: 190mm
N. W: 13.5kg
G. W: 18kg
Package size: 47.5 x 35.5 x 14.5cm
47.5 x 23.5 x 47cm
