Prod Model: |
SP1950 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
Use: |
Metal Drilling |
Type: |
Core Drill Bit, |
Deepth: |
35mm/50mm/75mm/100mm |
Diameter: |
12-65mm |
Material: |
High Speed Steel |
Product Description

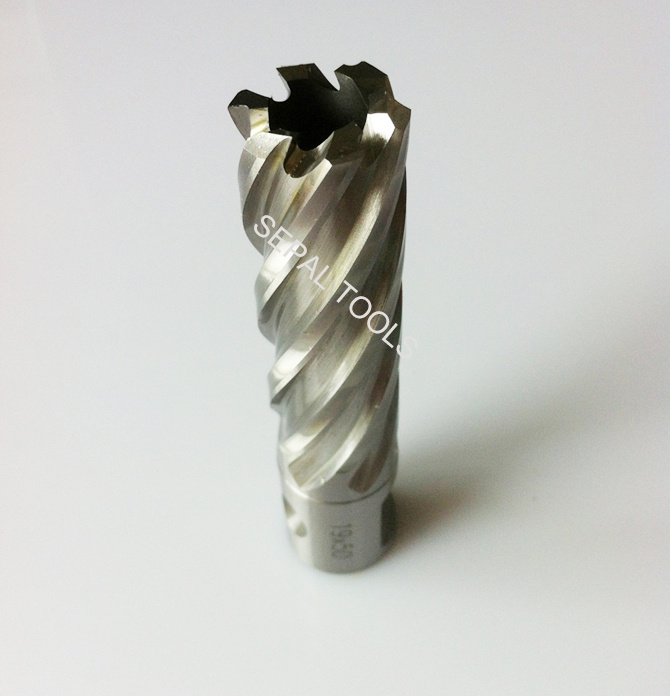

HSS Annular Cutter with Weldon Shank
1. HSS annular cutter , 19.05mm universal shank for clamping strength and finish. Suitable for large cutter above Φ61mm
2. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Hougen, Jancy, Euroboor, BDS, Ruko.
3. Can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic. And complex material available for drilling, a higher cutting speed available.
4. Selected speical-purpose carbide tips with multi-cut geometry for ply-cutting and lower friction. Reduced damage of tips and improved performance of ships removal.
5. Multi-ply cutting end edge geometry, to improve removal of chips and keep less resistance.
6. The specifications diameter from the Φ12mm ~ Φ60mm, depth of cutting 35mm,50mm, 75mm, 100mm series.
7. Can be customized Φ150mm ~ Φ200mm, depth can be extended to 200mm according the needs of special occasions
8. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.
DNHX-2 | DNHX-3 | DNHX-4 | DNHX-5 | DNHX-6 |
Cutting Dia (mm) | Cutting Depth (mm) | Cutting Dia (mm) | Cutting Depth (mm) | Cutting Dia (mm) | Cutting Depth (mm) | Cutting Dia (mm) | Cutting Depth (mm) | Cutting Dia (mm) | Cutting Depth (mm) |
12 | 25 | 12 | 35 | 12 | 50 | 18 | 75 | 18 | 100 |
13 | 25 | 13 | 35 | 13 | 50 | 19 | 75 | 19 | 100 |
14 | 25 | 14 | 35 | 14 | 50 | 20 | 75 | 20 | 100 |
15 | 25 | 15 | 35 | 15 | 50 | 21 | 75 | 21 | 100 |
16 | 25 | 16 | 35 | 16 | 50 | 22 | 75 | 22 | 100 |
17 | 25 | 17 | 35 | 17 | 50 | 23 | 75 | 23 | 100 |
18 | 25 | 18 | 35 | 18 | 50 | 24 | 75 | 24 | 100 |
19 | 25 | 19 | 35 | 19 | 50 | 25 | 75 | 25 | 100 |
20 | 25 | 20 | 35 | 20 | 50 | 26 | 75 | 26 | 100 |
21 | 25 | 21 | 35 | 21 | 50 | 27 | 75 | 27 | 100 |
22 | 25 | 22 | 35 | 22 | 50 | 28 | 75 | 28 | 100 |
23 | 25 | 23 | 35 | 23 | 50 | 29 | 75 | 29 | 100 |
24 | 25 | 24 | 35 | 24 | 50 | 30 | 75 | 30 | 100 |
25 | 25 | 25 | 35 | 25 | 50 | 31 | 75 | 31 | 100 |
26 | 25 | 26 | 35 | 26 | 50 | 32 | 75 | 32 | 100 |
27 | 25 | 27 | 35 | 27 | 50 | 33 | 75 | 33 | 100 |
28 | 25 | 28 | 35 | 28 | 50 | 34 | 75 | 34 | 100 |
29 | 25 | 29 | 35 | 29 | 50 | 35 | 75 | 35 | 100 |
30 | 25 | 30 | 35 | 30 | 50 | 36 | 75 | 36 | 100 |
31 | 25 | 31 | 35 | 31 | 50 | 37 | 75 | 37 | 100 |
32 | 25 | 32 | 35 | 32 | 50 | 38 | 75 | 38 | 100 |
33 | 25 | 33 | 35 | 33 | 50 | 39 | 75 | 39 | 100 |
34 | 25 | 34 | 35 | 34 | 50 | 40 | 75 | 40 | 100 |
35 | 25 | 35 | 35 | 35 | 50 | 41 | 75 | 41 | 100 |
36 | 25 | 36 | 35 | 36 | 50 | 42 | 75 | 42 | 100 |
37 | 25 | 37 | 35 | 37 | 50 | 43 | 75 | 43 | 100 |
38 | 25 | 38 | 35 | 38 | 50 | 44 | 75 | 44 | 100 |
39 | 25 | 39 | 35 | 39 | 50 | 45 | 75 | 45 | 100 |
40 | 25 | 40 | 35 | 40 | 50 | 46 | 75 | 46 | 100 |
41 | 25 | 41 | 35 | 41 | 50 | 47 | 75 | 47 | 100 |
42 | 25 | 42 | 35 | 42 | 50 | 48 | 75 | 48 | 100 |
43 | 25 | 43 | 35 | 43 | 50 | 49 | 75 | 49 | 100 |
44 | 25 | 44 | 35 | 44 | 50 | 50 | 75 | 50 | 100 |
45 | 25 | 45 | 35 | 45 | 50 | 51 | 75 | 51 | 100 |
46 | 25 | 46 | 35 | 46 | 50 | 52 | 75 | 52 | 100 |
47 | 25 | 47 | 35 | 47 | 50 | 53 | 75 | 53 | 100 |
48 | 25 | 48 | 35 | 48 | 50 | 54 | 75 | 54 | 100 |
49 | 25 | 49 | 35 | 49 | 50 | 55 | 75 | 55 | 100 |
50 | 25 | 50 | 35 | 50 | 50 | 56 | 75 | 56 | 100 |
51 | 25 | 51 | 35 | 51 | 50 | 57 | 75 | 57 | 100 |
52 | 25 | 52 | 35 | 52 | 50 | 58 | 75 | 58 | 100 |
53 | 25 | 53 | 35 | 53 | 50 | 59 | 75 | 59 | 100 |
54 | 25 | 54 | 35 | 54 | 50 | 60 | 75 | 60 | 100 |
55 | 25 | 55 | 35 | 55 | 50 | | | | 100 |
56 | 25 | 56 | 35 | 56 | 50 | | | | 100 |
57 | 25 | 57 | 35 | 57 | 50 | | | | 100 |
58 | 25 | 58 | 35 | 58 | 50 | | | | 100 |
59 | 25 | 59 | 35 | 59 | 50 | | | | 100 |
60 | 25 | 60 | 35 | 60 | 50 | | | | 100 |
Delivery Details:
*3-5 days if have in stock,it takes 25days if not stock.
* Products also can be shipped as customer requirement, such as DHL,FEDEX, TNT, UPS,AIR SHIPMENT and SEA SHIPMENTetc.
*Our company near to Shanghai or Ningbo port.
* At anytime, we will try our best to send the goods to client in time.
Payment Details:
*T/T: 100% In advance, or 30% payment in advance, the rest 70% before shipping.
*L/C: Irrevocable L/C at sight.
*Western Union: 30% payment in advance and the rest 70% before shipping.
*PayPal: 30% in advance, and the rest 70% before shipping. But customer should pay 5% bank fees.
FAQ
1.What kind of characteristic of your company?
We belong to both manufacturer and trading company.
2. Can you supply samples?
Yes, we can.
3. Can you produce non-standard products?
Yes, we can. (Please send us drawings or samples)
Why choose us ?
*High quality and high pricision with pretty competitive price product will be offered for you.
*Quick respond will be sent within 24hours for you.
* We povide just-in-time delivery.
* Good pre-sales and after-sales service for you.
*The product warranty is 3month.
*OEM will be offered for you.
