Application:
Cutting Granite, Sandstone, etc
Design:
Both Sandwich and Multilayers Are Available
Size:
900-1600mm
Feature:
Fast Cutting Speed
Recommend Rpm:
450
Quality Available:
High, Medium, Economic
Product Description

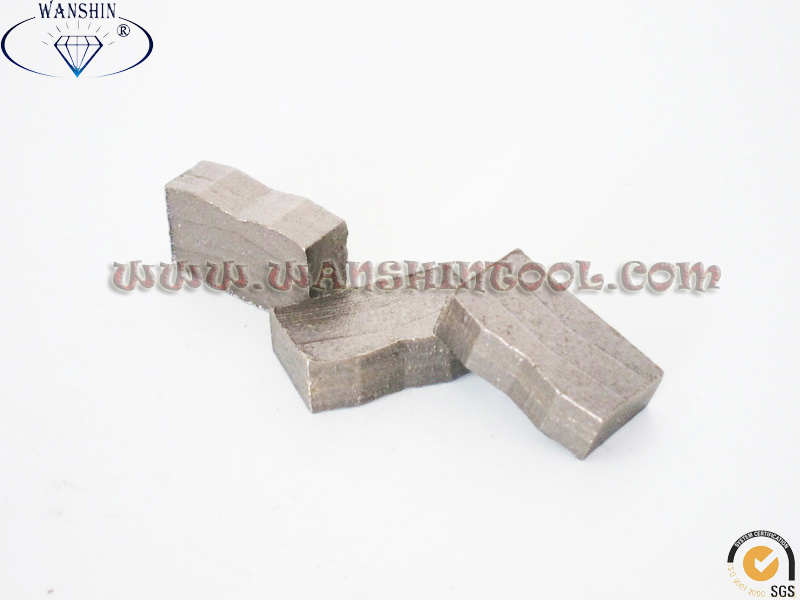

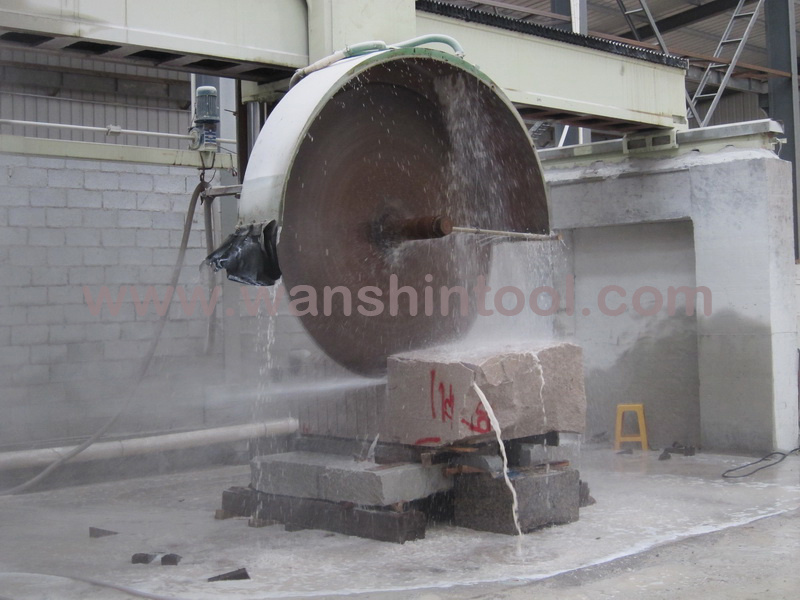

High Frequency welded,for granite,sandstone,limestone,slate,basalt and so on,used on large size gantry cutting machine and single column cutting machine. Characteristics of products: fast cutting speed, good life span, stable performance
Quality available: High, Medium, Economic
Diameter (mm)
Specification (L×W×H)
Segment NO.(pcs/set)
900
24×6.9/6.1×12/13mm
64
1000
24×6.9/6.1×12/13mm
70
1100
24×7.4/6.6×12/13mm
74
1200
24×7.4/6.6×12/13mm
80
1300
24×8.4/7.6×12/13mm
88
1350
24×8.4/7.6×12/13mm
88
1400
24×8.4/7.6×12/13mm
92
1600
24×9.2/8.4×12/13mm
108
1700
24×9.2/8.4×12/13mm
112
1800
24×9.9/9.1×12/13mm
120
2000
24×10.5/9.5×14/15mm
128
2200
24×10.5/9.5×14/15mm
132
2500
24×11.5/10.5×14/15mm
140
2700
24×12.5/11.5×14/15mm
140
3000
24×12.5/11.5×14/15mm
160
3500
24×13.0/12.0×14/15mm
180
Other sizes are available upon requests
Wanshin Diamond Tool Co., Ltd is a professional manufacturer and exporter of various types of diamond tools. Our company is located in the city of Nan' An_the biggest stone base in China.
With over 20 years experience in the researching and manufacturing of stone tools, over 5 years in the vacuum brazed diamond tools, our products are widely accepted by many customers all over the world. Our main products include the following series:
2. Vacuum Brazed Diamond Tools: Such as vacuum brazed drill bits for tiles, porcelain, ceramics;
3. Stone Engraving Tools
4. Polishing&Grinding Tools: Such as diamond polishing pads, diamond cup wheels, metal grinding discs, resin grinding discs, concrete floor polishing pads, etc;
5. Electroplated Diamond Tools: Such as wet drill bits, CBN plated diamond wheels, grinding pins, etc
All of our products are inspected under a strict quality control system before it goes to customers' Hands.
Now our products are exported USA, UK, Germany, Australia, Iran, Peru, Mexico, Brazil, South Africa, Cyprus, Egypt, Poland, etc.
Our principle is helping you get the best solutions for your limitations in the processing of stones and many other materials. We sincerely welcome to you to join us, we can supply you the constantly good quality products, the best after sale service.
