Prod Model: |
NS-4041 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Red/Green |
Frequency Of Swing: |
0-12500rpm |
Noise: |
Low Noise |
Voltage: |
110V/60Hz and 220V/50Hz |
Merits: |
High Speed and High Precision |
Kind: |
Orthopedics |
Type: |
Othopedic Surgery |
Group: |
No Limit |
LCD Display: |
/ |
Source: |
/ |
Anesthesia: |
/ |
Type Of Operating Light: |
/ |
Product Description
Low noise Electric Plaster Cutting Saws for Cutting Bandage with three saw blades (NS-4041
)1: Application:
1) Cut all kinds of plaster bandages.
2) Alloy blade is suitable for long time use.
3) Ideal design and professional Plaster Saw manufacturer.
2: Technical data:
Power voltage: 220V/ 110V
Input power: 125VA
No-load speed >12500r/min
Noise: 63dB
Material: Stainless steel
Weight: 1345g
Maximum swing range ≤ 5°
Color: Green

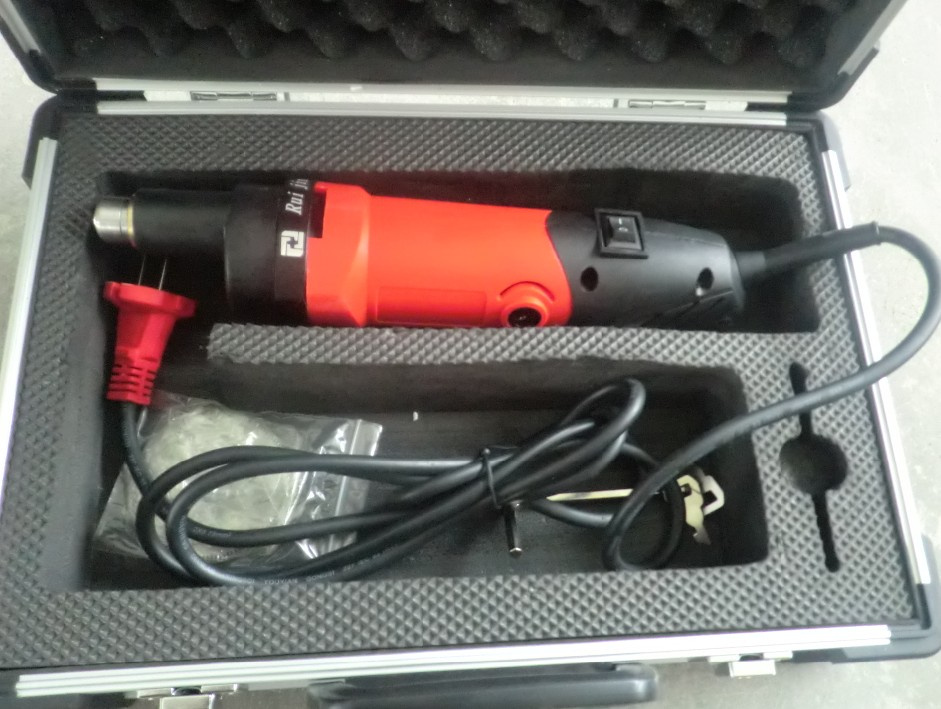

3: Standard configuration of Plaster Saw:
1) One mainframe
2) Three types saw blades
3) One aluminium alloy box
4: Main features:
1) Frequency of swing: ≥ 12500/min, range of swing: 5°
2) Power supply: AC 220V, 50Hz., (or AC110V, 60Hz)
3) Input power: 125W.
4) Low noise total optimized mechanical structure and parts design.
5) Alloy blade is suitable for long time use.
6) The function of parenchyma protection is safe and reliable.
7) Suit for cut macromolecule plastic material.
8) It is the basic surgical equipment, which can effectively cut all kinds of bandages.
9) It uses high-speed saw blade vibration system. It will not scrach the skin for the blade rolls from left to right with the amplitude of 5.6.
5: How to use the Plaster Saw:
1) Grasp the electric plaster saw and the cutting blade should be vertical on the cast's surface and Make stress slowly.
2) When the material was cut through, put up the saw blade slightly and move forward along the incision. Repeat the above process until the material completely cut open.
6. Safety Instructions:
-Before use check the saw for any mechanical damage. Ensure that the saw blade is not blunt, has no broken teeth and is correctly installed.
-Ensure the air vent of the motor is kept clean from dust to prevent overheating which may cause damage to the motor.
-During use do not overexert or apply pressure when the saw blade is moving.
-During use the motor will heat up, if the outer shell becomes excessively warm turn the motor off to avoid overheating and allow the motor to cool.
-Please switch the motor offf if any abnormal noise or excess vibiration occurs during use.
-Do not switch the power on and off frequently as this will cause damage to the motor.
-Clean the saw after use and store in dry place to avoid corrosion.
7: Payment term:
1) Port: Shanghai
2) MOQ: 1 Set.
3) Payment term: T/T IN ADVANCE OR WESTERN UNION.
4) Delivery time: Within 3 days after payment
8: Packing details:
1) One set packed in the aluminum alloy box and then put in a carton.
2) Size of aluminum alloy box: 38cmx28cmx13cm.
3) Size of carton box: 41cmx32cmx15cm.
9: Green surgical electric stainless steel orthopedic plaster saw with three saw blades (220V50Hz/110V/60Hz) /medical plaster saw.
Many thanks for your kind concern about our Medical Electric Plaster Saw/Cutting Saw. Any request, please don't hesitate to contact me. Thanks.
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
