Prod Model: |
SFSP |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
5-20t/H |
Motor: |
Siemens Brand |
Bearing: |
SKF |
Certification: |
Ce,BV,SGS |
Lubrication: |
Automatic System |
Application: |
Grain,Corn,Rice,Wheat |
Type: |
Grinding Equipment |
Processing Object: |
Beans |
Processing Technics: |
Crushing-before-Mixing |

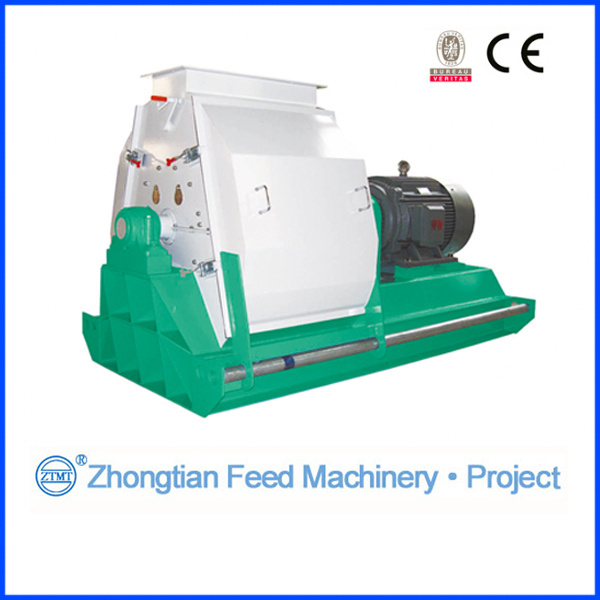

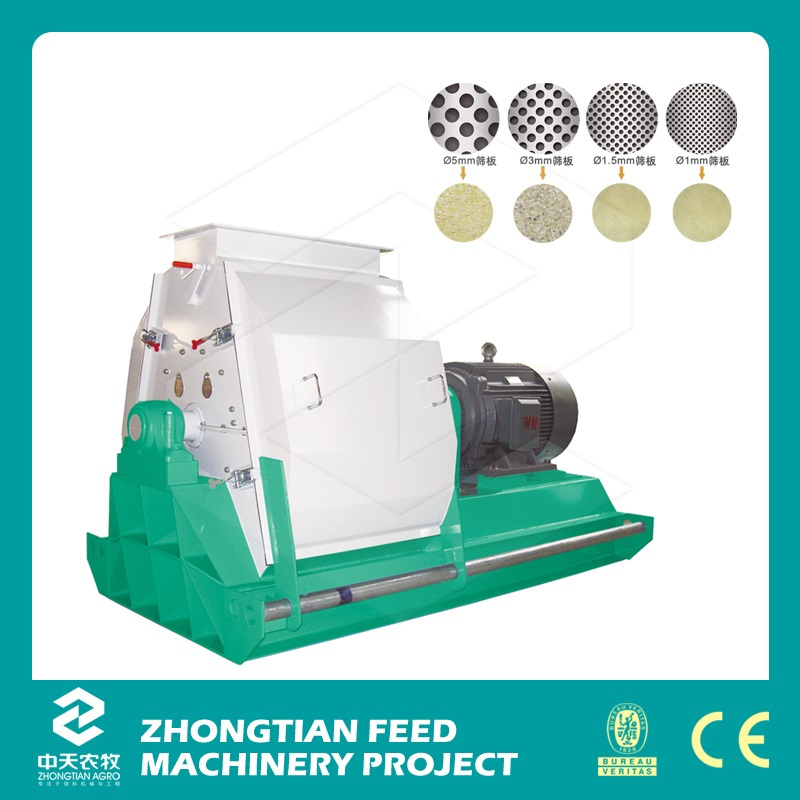

Product Description
Use And Applicable Scope
This series of hammermills can grind various pellet feed materials such as corn, sorghum, wheat, soya,. Crumbled cake and others. And they are specially desingned for materials of fibre and with high content of moisture and oil and fine grinding. They are the essential equipment in powder section on compound feed mills.
Features
The features of this series Hammer Mill are as follows.
a. Coarse and fine grinding can be done.
b. The type of tear liner hammermill can prevent the materials from agglomerating and turning bad.
c. Tear liner screen structure and large discharging area make discharge quickly and improve capacity.
d. The built-in rotors are used to avoid flee of ground material.
e. Regrinding chamber can destroy the material circumfluence effectively and can improve grinding efficiency.
f. The base of hammermill is weldment of thickened steel plates.
g. Replaceable wearproof parts and double wearproof plate are adopted in the grinding chamber and parts of contact with materials.
h. It adopts imported high-quality bearings that ensure the mainframe runs smoothly.
In a word, this machine has features of simple structure, durability, safety, reliability , easy installation, simple operation, less vibration and high productivity.Main technical parameters. See table 1 and table 2.
Table 1.Parameter Model | Winning 88-I | Winning 88-II | Winning 88-III | Winning 88-IV | Winning 88-V | Winning 88-VI | Winning 88-VII |
Standard | 112*25D | 112*30D | 112*38D | 112*50D | 112*60D | 112*75D | 112*100D |
Rotor Dia(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1120 | 1120 |
Mainshaft Speed(rpm) | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
Linear Velocity of Hammer(m/s) | 86.5 | 86.5 | 86.5 | 86.5 | 86.5 | 86.5 | 86.5 |
Hammer Number | 54 | 64 | 64 | 108 | 138 | 180 | 216 |
Equipped Power(kw) | 45 | 55 | 55 | 75 | 90 | 110 | 132 | 160 | 160 | 200 | 200 | 220 | 250 | 280 | 315 |
Air Flow(m3/min) | Coarse Grinding | 50 | 60 | 77 | 96 | 116 | 155 | 192 |
Fine Grinding | 70 | 80 | 108 | 135 | 160 | 217 | 260 |
Equipment Resistance | Coarse Grinding 70-120mm H2O Fine Grinding 120-150mm H2O |
Table 2.Parameter Model | Winner 98-I | Winner 98-II | Winner 98-III | Winner 98-IV | Winner 98-V | Winner 98-VI | Winner 98-VII |
Standard | 138*25D | 138*30D | 138*38D | 138*50D | 138*60D | 138*75D | 138*100D |
Rotor Dia(mm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
Mainshaft Speed(rpm) | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
Linear Velocity of Hammer(m/s) | 106.5 | 106.5 | 106.5 | 106.5 | 106.5 | 106.5 | 106.5 |
Hammer Number | 54 | 64 | 90 | 108 | 138 | 180 | 216 |
Equipped Power(kw) | 45 | 55 | 55 | 75 | 90 | 110 | 132 | 160 | 160 | 200 | 200 | 220 | 250 | 280 | 315 |
Air Flow(m3/min) | Coarse Grinding | 61 | 74 | 100 | 117 | 148 | 195 | 232 |
Fine Grinding | 80 | 96 | 130 | 152 | 192 | 254 | 300 |
Equipment Resistance | Coarse Grinding 70-120mm H2O Fine Grinding 120-150mm H2O |
Performance index see Table 3 and Table 4 for the performance indexes of this series of hammer mills under the condition of proper installation, good air intake and correct operation.
Table 3.Model Parameter | Winning 88-I | Winning 88-II | Winning 88-III | Winning 88-IV | Winning 88-V | Winning 88-VI | Winning 88-VII |
Power(kw) | 45 | 55 | 55 | 75 | 90 | 110 | 132 | 160 | 160 | 200 | 200 | 220 | 250 | 250 | 280 | 315 |
Cpacity(t/h) | 7-9 | 8-11 | 9-13 | 12-18 | 14-22 | 17-26 | 20-31 | 25-38 | 25-38 | 30-48 | 30-48 | 34-52 | 38-60 | 38-60 | 43-67 | 49-75 |
Table 4.Model Parameter | Winner 98-I | Winner 98-II | Winner 98-III | Winner 98-IV | Winner 98-V | Winner 98-VI | Winner 98-VII |
Power(kw) | 55 | 75 | 75 | 90 | 110 | 132 | 160 | 200 | 200 | 220 | 220 | 250 | 280 | 280 | 315 | 355 |
Cpacity(t/h) | 8-11 | 12-15 | 12-18 | 14-22 | 17-26 | 20-31 | 25-38 | 30-48 | 30-48 | 34-52 | 34-52 | 38-60 | 43-67 | 43-67 | 49-75 | 55-85 |
NOTE: The above is the indexes which conform to the following conditions: The moisture content of material is not over 13%, and volume is not below 0.72t/m3. Diameter of holes in the screens of mill is φ3 and hole-opening rate is not below 33%.

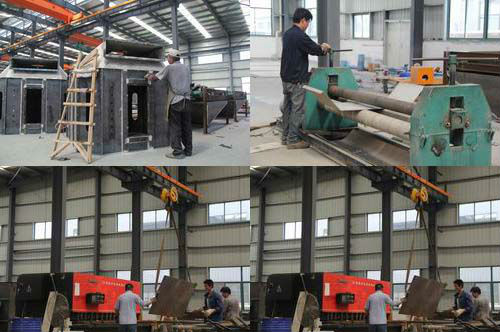

Our Workshop Our Product

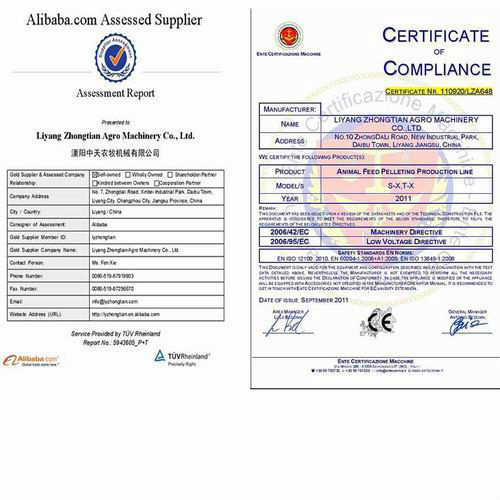

Quality Ceretification
We have engaged in manufacturing for 9 years. Jiangsu zhongtian agro machinery Co., Ltd. is beside the national aaaa tourist attraction zone of tianmu lake in liyang city. The company insists on its operation ideas of "Honesty, Quality Focus and Service First" according to its purpose of "superior products and services for customers". Our company takes serving our customers with quality products as tenet, and sticks to the business philosophy of honest & pragmatic, quality oriented, service foremost. Through the consistent effort of all colleagues, zhongtian feed machinery and spare parts have been sold to Vietnam, Bangladesh, Russia, Saudi Arabia and Egypt.
The top selling products among zhongtian feed machinery are pellet mills, hammer mills, mixers, coolers, screeners, bucket elevators and automation control machines. Meanwhile, we can undertake turn-key projects of pellet feed, mash feed, premix feed, normal aqua feed and special aqua feed with the capacity of 1-40t/h. Zhongtian machinery spare parts are outstanding, accepted by various feed mills thanks to high quality and high performance price ratio.
Our company owns a stable group of engineering, production, quality inspection and after-sales team, and ensures the production of qualified products according to customers' requirement and specialized production. Our company has three offices in Vietnam and Bangladesh. Zhongtian strives for close service with high quality and solves after-sales worries of customers.
We believe in the near future, you and our company will step forward hand in hand on the solid basis of mutual benefit!
