Shape:
Circular/Round
Rated Voltage:
220V
Duty Cycle:
60%
Electric Current:
129A
Cold-State Power:
28.4kw
Weight:
7000kg
Lifting Capacity For Cast Iron:
3500/2800kg
Lifting Capacity For Steel Ball:
21000kg
Lifting Capacity For Steel Scrap:
2200/1850kg
Application:
for Transporting Steel Scraps,Irons,Balls.
Usage:
Mine
Type:
Electromagnet
Installation:
Hanging
Current:
DC
Cooling Method:
Self-Cooling
Automation:
Automatic
Magnetic Source:
Electromagnetic
Magnetic Field Strength:
Strong
Cylinder Number:
Single Cylinder
Product Description

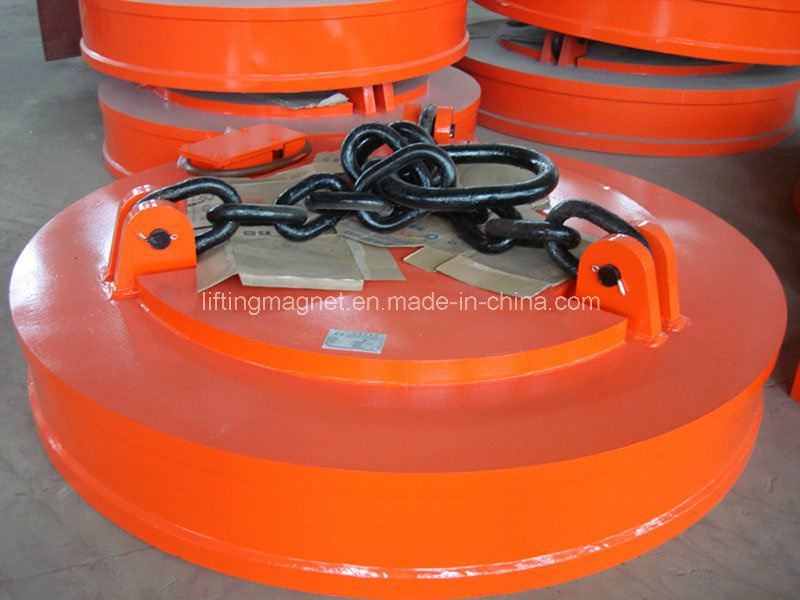

Lifting Electric Magnet for Scraps of DC Power
Application:
DC lifting magnet is used for transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets.The magnet is suitable for installing on excavator,crane;and also can be submerged under water,used at very high temperature and normal temperature in metallurgical plants,scrap yards and ship-building plants.
Options:
--Rated Voltage DC220V;Strong Excitation Type;Overexcitation type. --Consists of Lifting Magnet, Cable Reel,Control Cabinet, Cable Connector.
Features:
75% or 60% Duty Cycle All welded heavy duty construction Class H insulation Powerful deep magnetic field design Aluminum Coil,Copper Coil optional

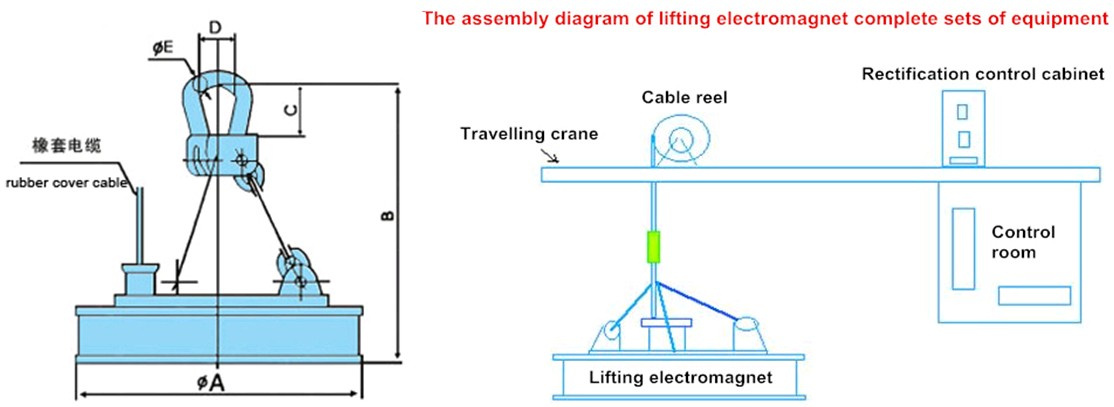

Overall dimension drawing and assembly diagram: Complete set of equipment: Application Pictures: About Enquiry: To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift? For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length×Width×Thickness mm) 2. What's the lifting capacity you expect? 3. What kind of working site does the magnet work? Indoor or outdoor? 4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity). (More details, please feel free to contact us directly.)
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 24 hours. Please fell free to call us at any time if there is any questions.
Convenient Transportation:
All available shipping ways could be applied,by courier,air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you till the goods arrive.
Model
Electric current (A)
Cold-state power (kw)
lifting capacity (kg) cold/hot state
Mass (kg)
Overall dimension (mm)
steel ball
cast iron
steel scrap
A
B
C
D
E
MW5-70L/1
15
3.3
2500
380/200
120/100
490
700
800
160
90
30
MW5-80L/1
18
3.96
3000
480/250
150/300
620
800
800
160
90
30
MW5-90L/1
26.6
5.9
4500
650/440
250/200
800
900
1090
200
125
40
MW5-110L/1
35
7.7
6500
1000/800
450/400
1350
1100
1140
220
150
45
MW5-120L/1
45.5
10
7500
1300/1000
600/500
1700
1200
1100
220
150
45
MW5-130L/1
54
12
8500
1400/1100
700/600
2010
1300
1240
250
175
50
MW5-150L/1
71.2
15.6
11000
1900/1500
1100/900
2830
1500
1250
350
210
60
MW5-165L/1
75
16.5
12500
2300/1800
1300/1100
3200
1650
1590
370
230
75
MW5-180L/1
102
22.5
14500
2750/2100
1600/1350
4230
1800
1490
370
230
75
MW5-210L/1
129
28.4
21000
3500/2800
2200/1850
7000
2100
1860
400
250
80
MW5-240L/1
154
33.9
28000
4800/3800
2850/2250
9000
2400
2020
450
280
90
Yueyang Shengang Lifting Electromagnet Co., Ltd., You Best Supplier:
1. Reliable manufacturer with 12 years experience
2. Mature technique and experienced workers
3.100% good quality and Competitive prices
4. Authorized certificates like SGS and ISO9001
5. Thoughtful customer service within 24 hours
6. Fast and safe delivery
YueYang ShenGang Lifting Electromagnet Co, . Ltd located in Junshan Industrial Park, Yueyang city, Hunan province, which is a one of the electromagnet equipment manufacturer with the largest scale and the most complete product range in China. ShenGang integrates its functions with scientific research and development, engineering design, production and commission service. ShenGang is a high and new technology enterprise in Hunan province and has obtained ten national patents successively. Such as Power-cut Magnetic Sustaining Microcomputer Automatic Distribution Iron System, Electromagnetic Stirring System With Complete Set Of Control System, Multi-functional Lifting Electromagnet. The main products are widely applicable to metallurgy, electricity, mine, coal, chemical industry, building materials, cement, refractory materials, papermaking, glass industry and hoisting and conveying industry, which also have good sell to Japan, East Asia countries and some region of Europe, America and Southeast Asia.
ShenGang has been enjoying the support and cooperation of many scientific research institutions and numerous customers at home and abroad for recent years. It also has many years of experiences for researching, developing and manufacturing. It adopts up-to-date designing method and exquisite technology to provide the customers with the most advanced technology of superior products and perfect service. The main products include lifting electromagnet series, electromagnetic iron separator series, permanent-magnetic iron separator, commutation controlling unit series, cable reel series, electromagnetic stirrer series, permanent-magnet lifter, metal detector, magnetic drum separator, high and low voltage frequency conversion speed regulating system, and constant voltage water supply system.
ShenGang will continuously open up and make innovations under the enterprise spirit of being pioneering and innovative, pragmatic, solidarity and hard work, top -notch, concerned before our customers else and enjoy ourselves after our customers find their joys. To strive to develop and expand in the keen market competition, to become the world' S electromagnetic industry a new aircraft carrier.
Enterprise Tenet: Technology works, Customer first, People oriented, Win-win cooperation

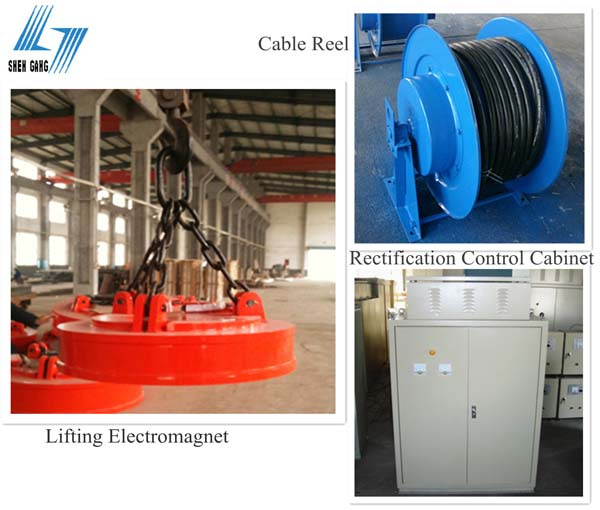

Complete set of equipment:

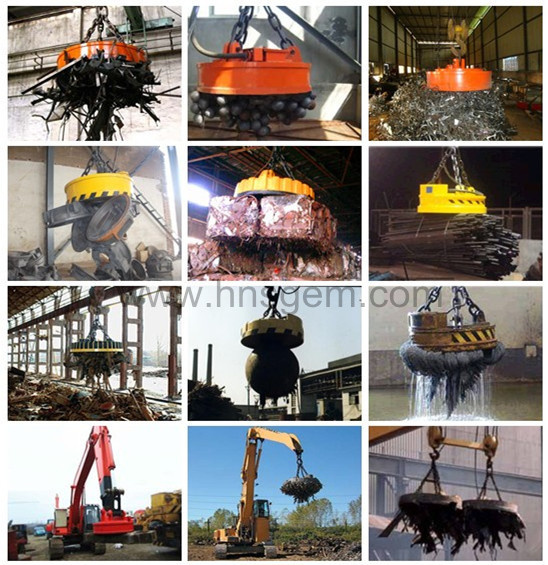

Application Pictures:
