J23 100t Mechanical Power Press Machine Hole Electric Punching Machine for Hot Sale

J23 100t Mechanical Power Press Machine Hole Electric Punching Machine for Hot Sale
Price: US $ 920-19998/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: J23
Color: Customized
Voltage: Customized
Material: Aluminum, Ss, Ms, etc
Safety Protection: Photoelectric Protection
Electrical: Chnt
Body: Cast
Function: Metal Processing
CNC Feeding System: Available
Worktable: Inclinable
Type: High-Speed Punching Machine
Controlling Mode: CNC
Automatic Grade: Automatic
Power Source: Mechanical Drive
Precision: High Precision

Product Description

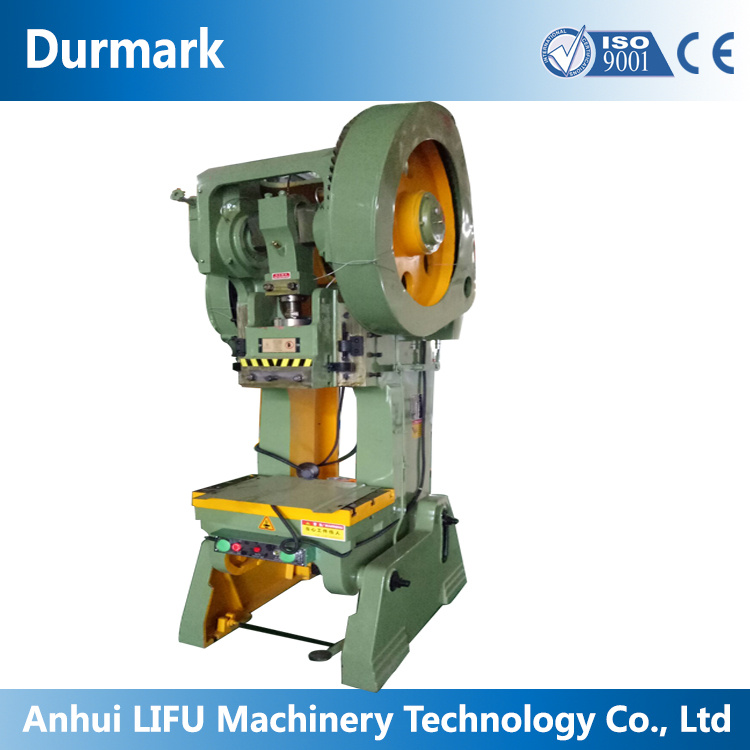

J23 100T Mechanical power press machine hole electric punching machine for hot sale

Product description

J21 series open press is a sheet metal Universal presses for shearing, punching,
blanking, bending and shallow drawing work. Usually used for ( communications,
computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles)
metal parts stamping and forming).


Technical parameter
NONameJ21-100T
1Nominal force (kn)1000
2Nominal force stroke (mm)5
3Slider stroke (mm)120
4Slider stroke times (time/min)45
5Maximum height for die loading290
6Adjustment range for die loading height (mm)80
7Distance between slider center line and the fuselage (mm)300
8Worktable size (mm)550*900
9Work table blanking hole size (mm)D200*290*350
10Slider bottom size (mm)290*350
11Shank hole size (mm)D60*Depth80
12Distance between columns (mm)380
13Bolster thickness (mm)100
14Tilting degree (degree)/
15Motor (kw)11

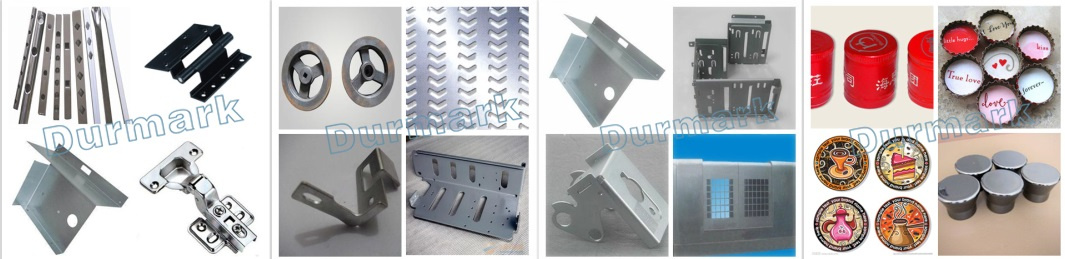

Processed product


Main feature
1.With foundry structure for better vibration resistance.
2.Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3.The good rigidity of Casting box structure slider
4.Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage.
5.Four elongated triangular rail, easy for adjustment.
6.Adopts hands and foot switch operation buttons design, it's easy to activate continuous,single and adjustment practices.
7.Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.


Workshop

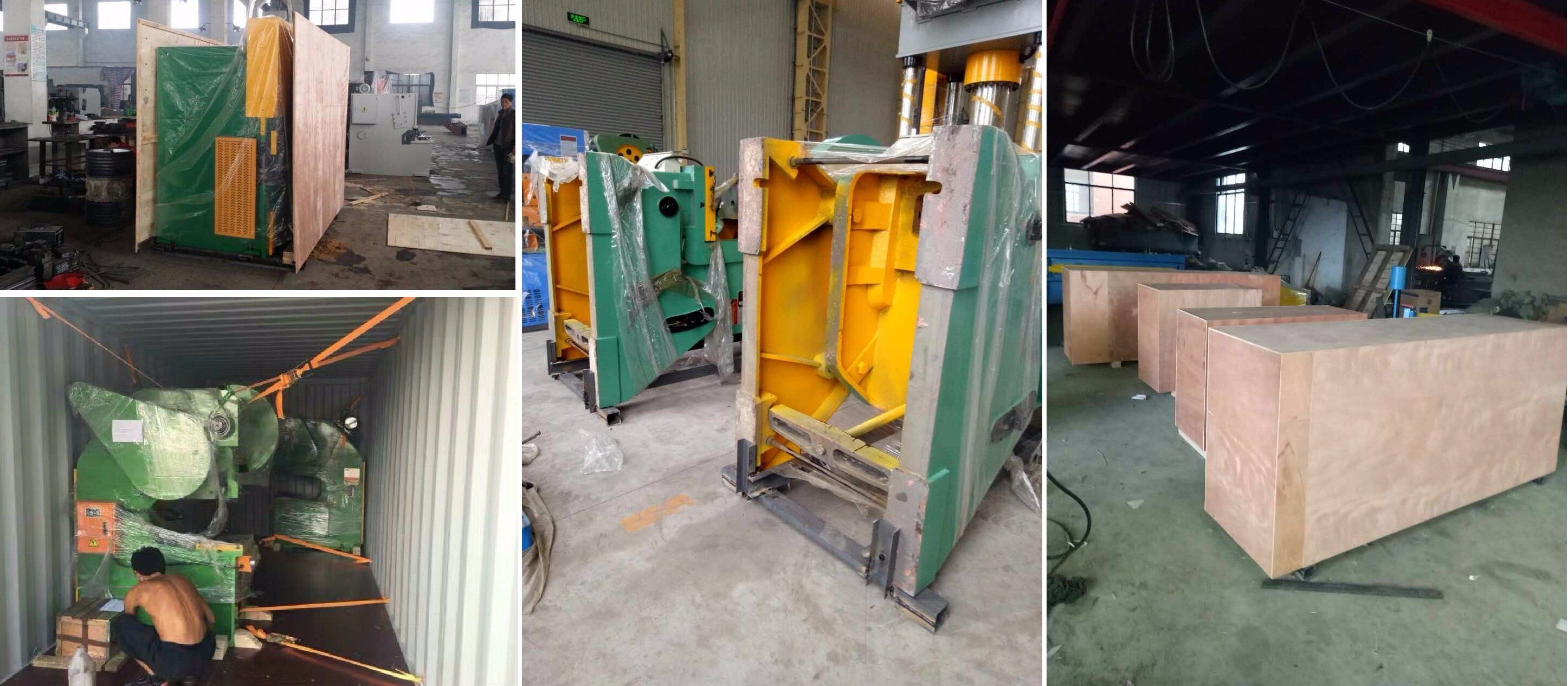

Package


Customer


Certificate


Service

Pre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed

After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea


Contact
Phone number : 86 15156107235
QQ : 442780615
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.

In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.

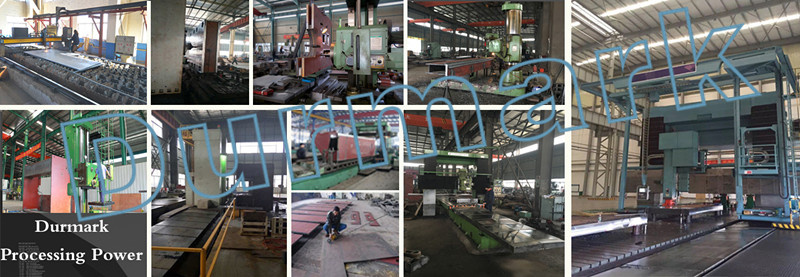

The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,

One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
