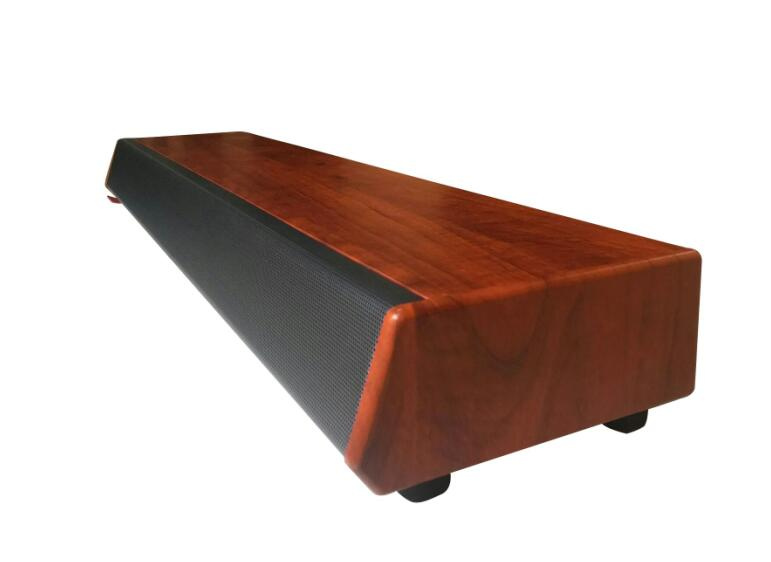

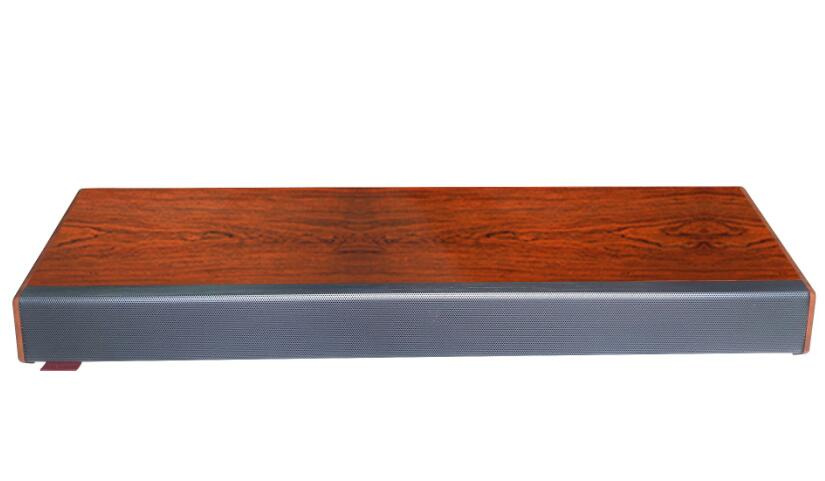

Ipremium SoundBar A2 Android 6.0 IPTV Googleplay Karaoke Subwoofer TV Bar
System Source Main Processor:Amlogic S905 64-bit ARM Cortex A53 2.0GHz,Penta-Core Mali-450 GPU Memory: 1GB DDR3 (2GB/3GB Optional) Flash: EMMC Flash 8GB (16GB/32GB Optional) Speakers:Subwoofer:5.25",40W,4Ω/Mid range:2.75",15W*2,4Ω/2",Tweeter:10W*2,4Ω Audio Processor:TDA7492E+CS8416+CS4344+DSP Material:Wooden+Alluminum Alloy
Main Features 1,Online IPTV Channels Middle East,Europe,South America,North America,Africa,Asia (optional) 2,Android 6.0 OS 3,Preinstall Google play store 4,Stalker Middleware(TV ONLINE app) for access to IPTV/VOD servers 5,Fully compatible with DVB-S2+DVB-T2/ISDB-T/Cable Hybrid DVB standards (optional) 6,Cloud based Mickyhop app market for application installation and updates 7,Live Streaming ,VOD and Game content and apps are supported 8,Virtual 5.1 Surround Sound supported 9,Brand new DSP digital audio technology 10,4K output supported,H.265/H.264/MPEG-2/MPEG-4/AVC SD/HD decoding 11,Subwoofer,Mid Range and tweeter speaker 12,Bluetooth 4.0 integrated 13,High secured OS,Hardware Unique ID Supported. AES Challenge Protection Supported 14,Software upgrade through OTA(Online Update from cloud server) or USB 15,Manage up to 10,000 TV and Radio channels 16,Multi languages,English,Czech,Danish,Dutch,Spanish,French,German,Greek, Italian,Japanese,Korean,Norwegian,Polish,Portuguese,Russian,Swedish,Turkish,Chinese,etc 17,HDMI 2.0/CVBS, Full HD 1080p, 3D movie file format supported 18,Built-in 802.11 b/g/n Wi-Fi wireless connectivity 19,Low power consumption and green power standby mode 20,Support install apps via TF card or U disk 21,Support wireless Microphone (Optional)
Video Decoding
Video Decoding
Aspect Ratio Video ResolutionVideo Bit Rate
ISO/IEC 13818-2 and ISO/IEC 14496-10 H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K @30fps, AVS+ 1080P o VP9 Profile-2 up to 4Kx2K@60fps MPEG-2 MP@ ML for SD, MP@ HL for HD H.265/H.264/AVC MP@ L3.0 for SD, HP@ L4.1 for HD VC-1 AP@L1 for SD, AP@L3 for HD 4:3 and 16:9, HD to SD Conversion 480i/480p/576i/576p/720p/1080i/1080p MPEG-2 MP@ML: 2~15 Mbps; MPEG-2 MP@HL: <19 Mbps; MPEG-4 AVC HP@L3:<10Mbps; MPEG-4 AVC HP@L4: <20Mbps
Audio Decoding
Standard Audio Decoding
Audio Mode Audio Sampling Rate
ISO/IEC13818-3 and TR1011154 MPEG-1 Layer I & Layer II Musicam Dolby Digital (AC3) & Dolby Digital AC-3/E-AC3 MPEG-2 AAC-LC & MPEG4 HE-AAC AAC5.1, AAC+ Level 2 Single channel, Dual Channel, Stereo, Joint Stereo 22.1kHz, 32kHz, 44.1kHz and 48kHz
Connector
Power Input Power Switch Reset Micro SD Slot USB HDMI OUT HDMI IN ETHERNET Digital Audio
AV RF IN (optional)
Micro Phone
1 x DC 19V/3.5A input port 1 x Power Switch for power on/off 1x Restore hole for system receovery 1x Micro SD Slot 2 x USB 2.0 for Hard Disk PVR function and software update 1 x HDMI 2.0 (4K supported) 1 x HDMI IN for extra device input 1X RJ45 Port 1x SPDIF input for digital audio 1x coaxial input for digital audio 3 x RCA female for Video, Audio Left and Audio Right 1 x Sat In for satellit signal input 1 x Ant/Cable In for terrestrial or Cable signal input 2 x Mirco Phone port
Physicals
Power Supply Power Consumption
Temperature Humidity
DC 19V/3.5A 85W in operation <10 W auto Standby Green Power Mode Operation 0~+45ºC; Storage -10~+60ºC 20~90%, non-condensed
Size&Packaging
Unit Dimension Gift Box Dimension Carton Dimension Unit Weight Carton Qty&Weight Shipment Information
900*218*80 mm 924*248*151mm 945*265*320 mm 5.39 Kg 1 pcs/Carton, 12.5 kgs 698 / 1446 / 1696 units per 20'/40'/40' High Container
