PH:3.91mm Reantal led screen Size Option 500x500mm & 500x1000mm Installation :curve option or flat option Service Method :front service or back service Indoor: 800-1200nit
Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows. 2. Nice appearance and simple structures. 3. Jointed correctly, being installed & dismounted by one person without tool. 4. Humanized operating interface with breakdown indicator lights, easy to maintain. 5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Specification:
Pixel Pitch
3.9mm
4.8mm
LED type
RGB 3in1 SMD2121
RGB 3in1 SMD2121
Pixel Density(dot/s.q.m)
65536
43402
Resolution(WxH)
128*128dot
104*104 dot
Cabinet size
500x500x5mm
Weight
7.5kg
7.5kg
Waterproof rate
IP43
Brightness
1200nits
1200nits
View Distance
3m
4m
Viewing Angle (H/V)
140°/120°
Gray Scale
14bit
Color type
68 Billion
Max.Power Consumption
250W/PCS
120W/PCS
Ave .Power Consumption
130W/PCS
60W/PCS
Refresh rate
1960Hz
Gamma
-5.0~+5.0
Applied environment
INDOOR/OUTDOOR
Controller
Synchronous display with control PC by DVI
Support Input
Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Power input
AC 110-220V±10%
Environment
temperature -10°C~+50°C,humidity 10~90% RH
Span Life
100,000hour

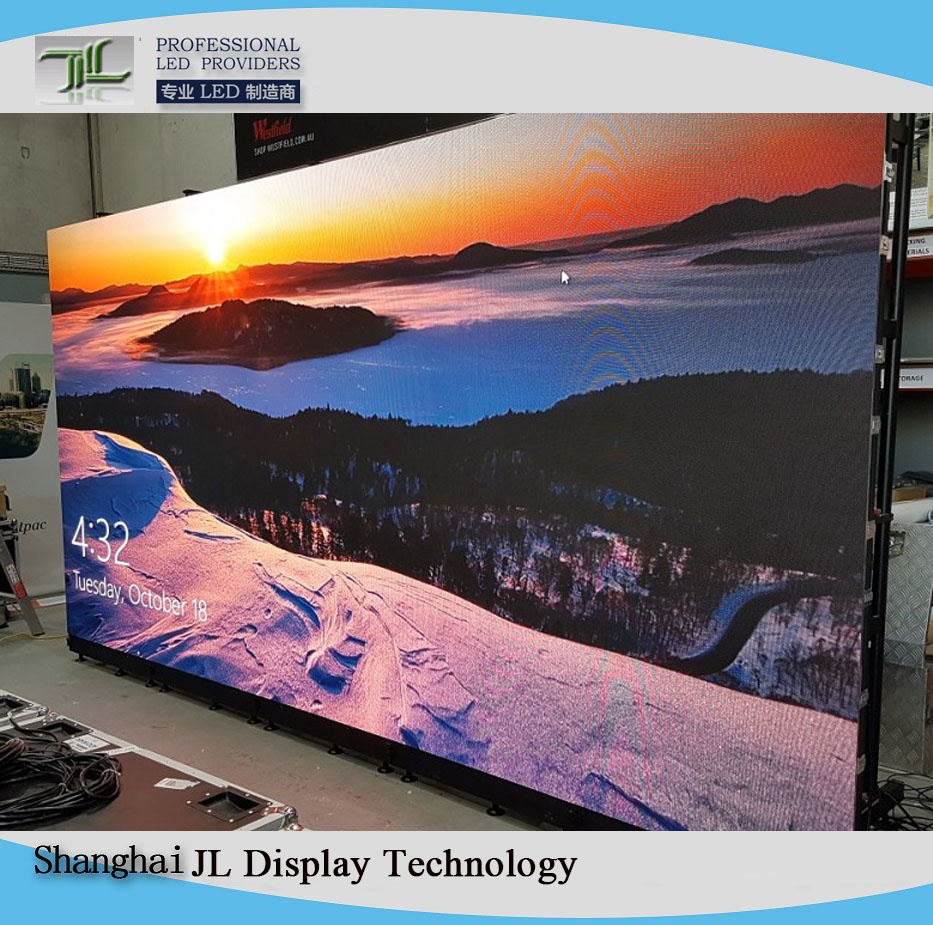

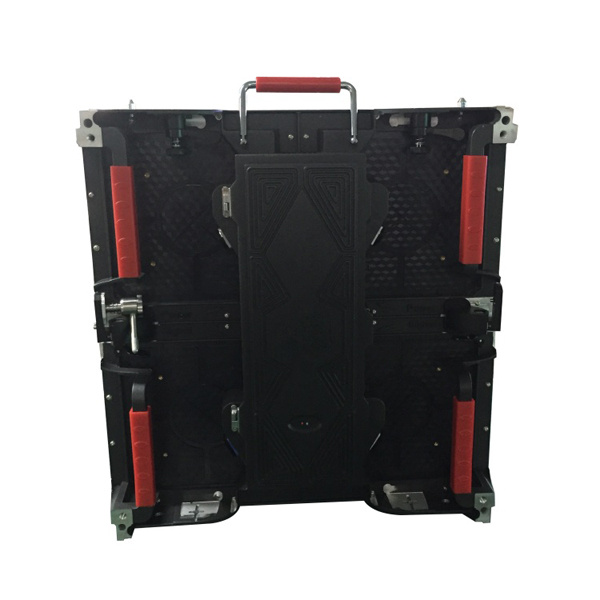

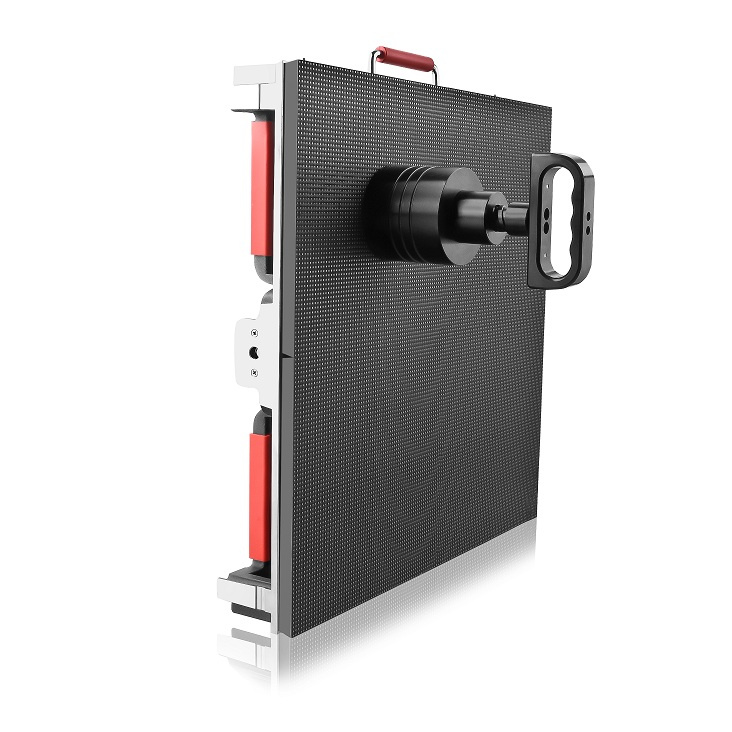

Product pictures:

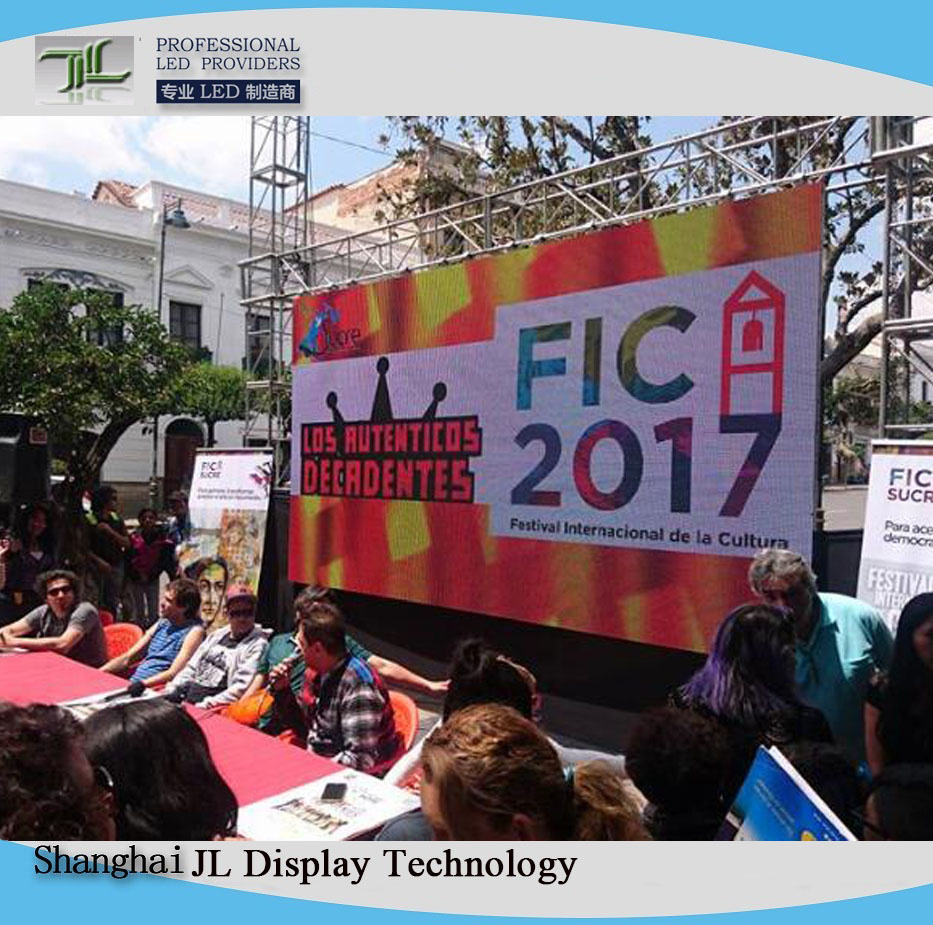

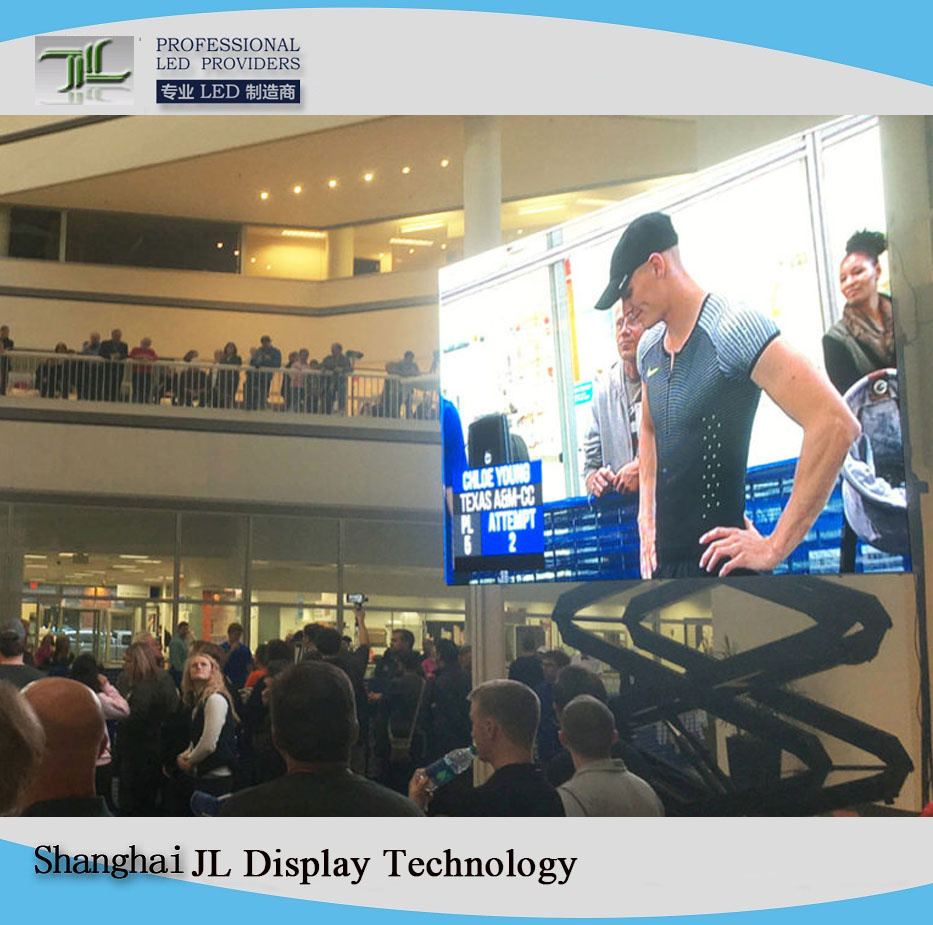

Application Widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc. Our Cases:

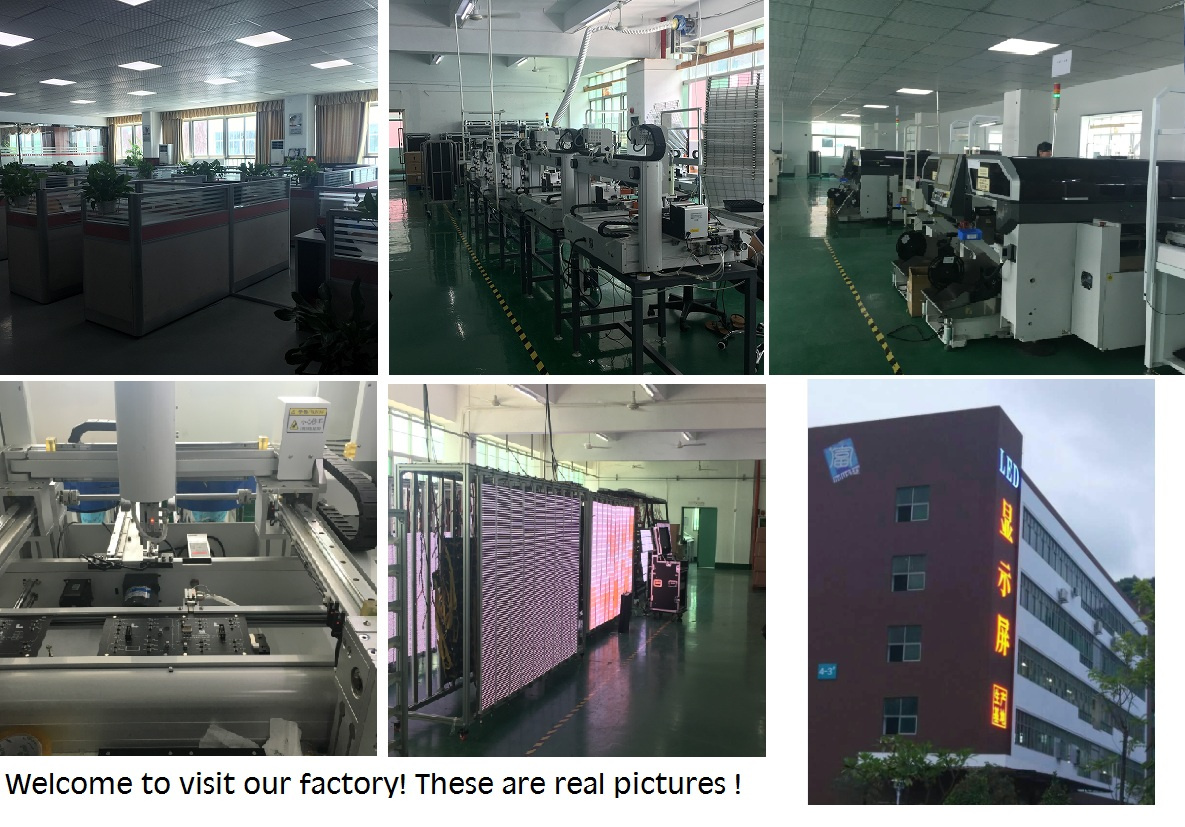

Company information: We are the leading supplier of LED display solutions, which has been specialized in R&D, manufacturing and marketing of LED Display Screens. Located in our own industrial park, JLLED covers a district of more than 8000 m², of three floors in one block. We could ensure production capacity of more than 5, 000 square meters per month for the LED displays, thanks to our well equipped automatic production lines, and skilled workers. Our R&D group is made of more than 8% of total employees and most of them are senior technicians, with more than 10 years' experiences in the LED field. Our led screen export to Italy, USA, Thailand, Romania, Malaysia, Russia, etc for more than 6 years.
Our services JL has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like. Pre-sale service: 1. Reply enquiries in 24 hours. 2. Market research and forecast for customer. 3. Provide unique and professional solutions based on customer's requirement 4. Data sheet and samples offer. 5. Other services, such as special packing design, factory visiting and so on. In-sale service: 1. Tracking report in producing. 2. Quality test report for every order. 3. Photos and videos as per customer's requirement. 4. Free spare parts. After-sale service: 1. Lifetime free maintenance and upgrade. 2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours. 3. Customer satisfaction tracking report. 4. Free technician training. 5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on. 6. Special service for big project, such as stadium, exhibitions, squares and so on.
