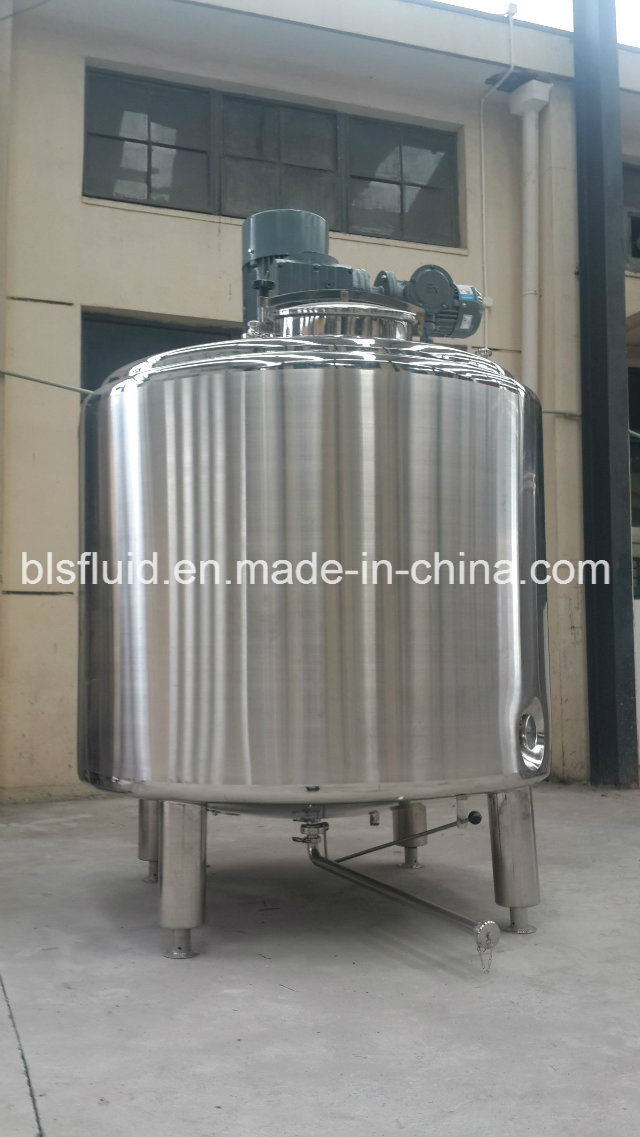

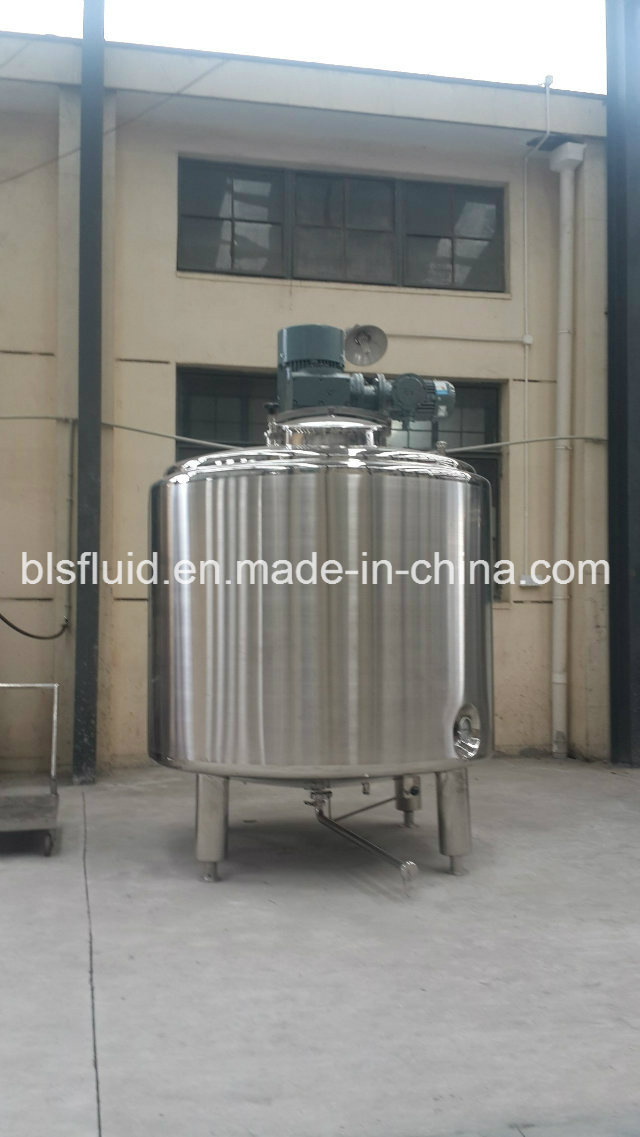

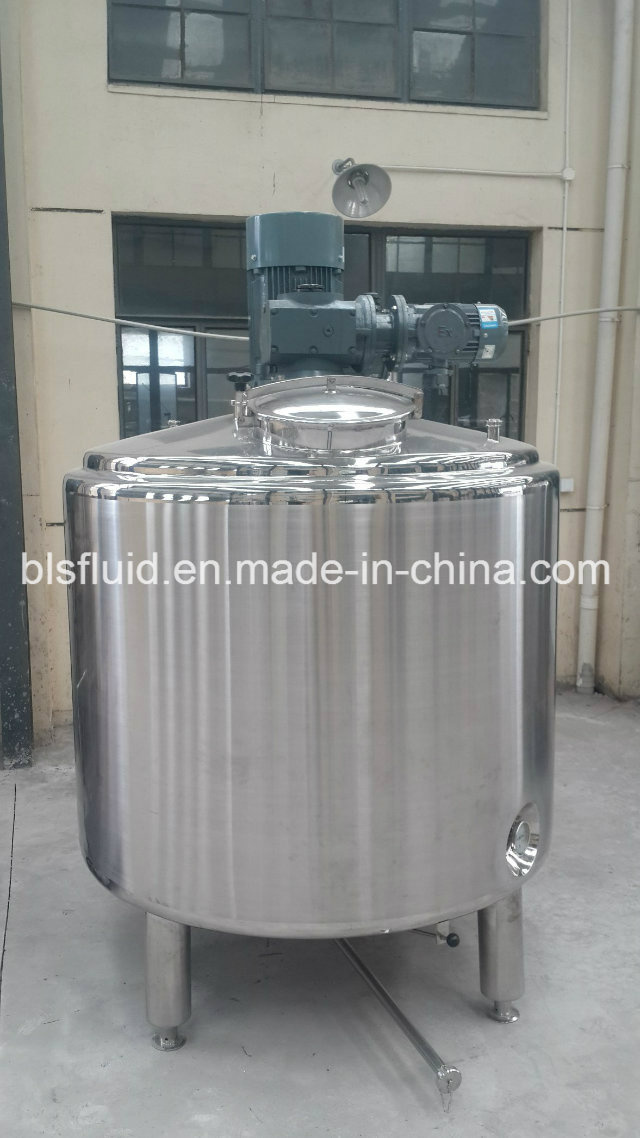

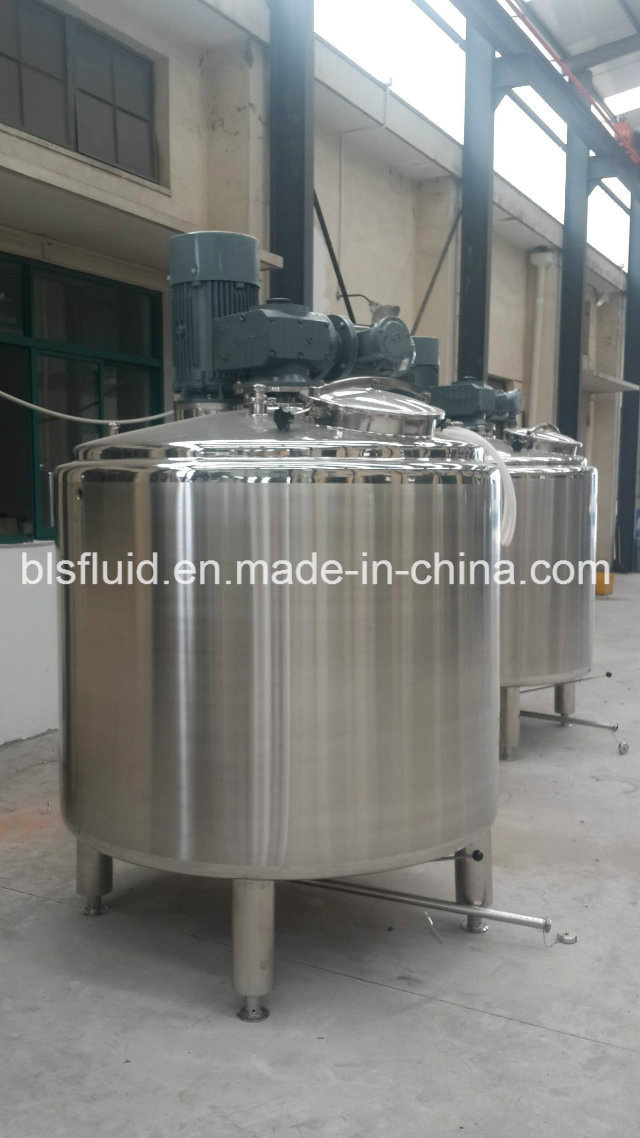

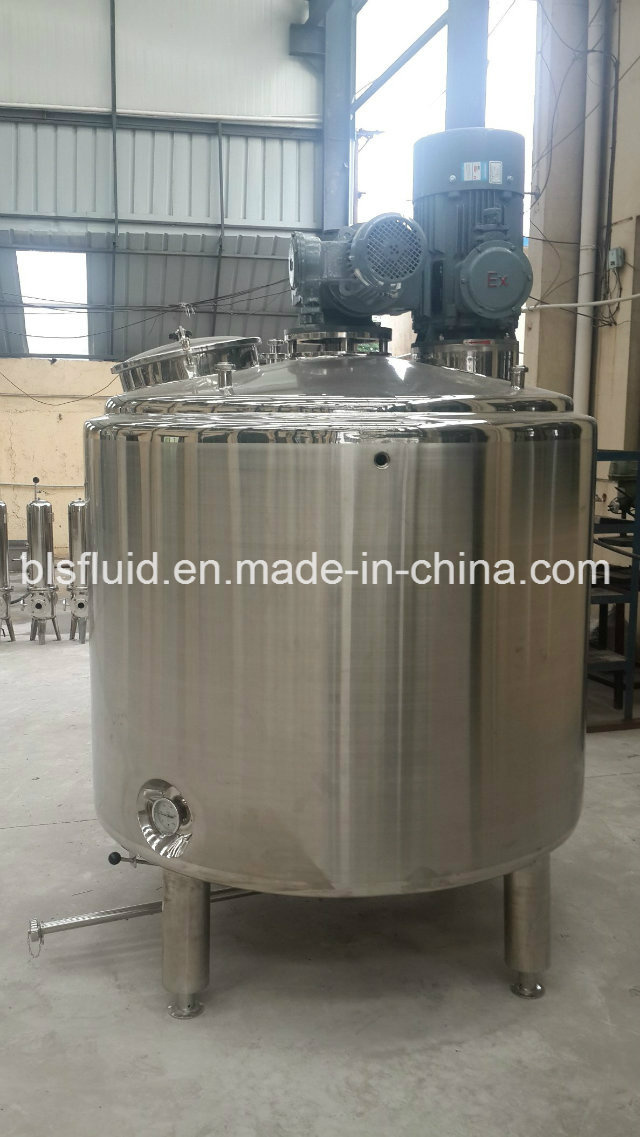

Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and
ageing tank etc.
Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and
biological engineering etc.
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Configuration of tank:
Quick open manhole.
Various types of CIF cleaners.
Fly and insect resistant sanitary breathing cover. (according to customer requirements)
Adjustable triangular bracket. (according to customer requirements)
Dismountable materials input pipe assembly. (according to customer requirements)
Thermometer (according to customer requirements).
Ladder (according to customer requirements).

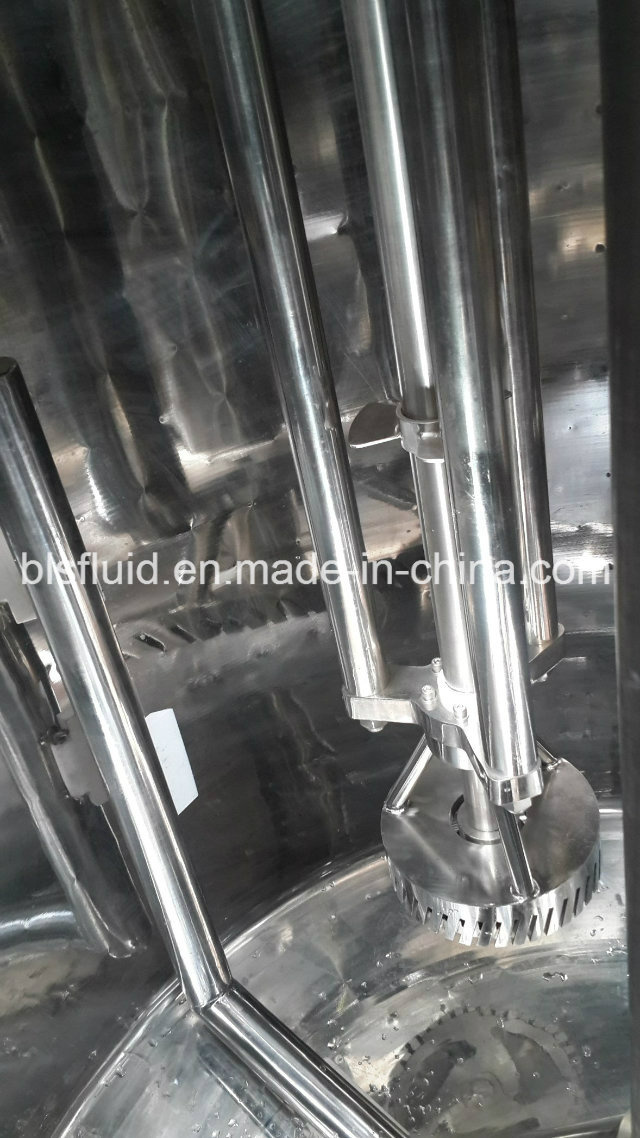

Vertical blender (paddle type or fame type are available if customer require).
Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements).
Liquid level meter and level controller (according to customer requirements).
Eddy-proof board. (according to customer requirements)
Effective
volume (L)
Dimension of
tank (mm*mm)
Total
height (mm)
Heat preservation
layer (mm)
Diameter of
inlet&outlet (mm)
500
840*1000
2750
60
38
600
920*1000
2850
60
38
700
990*1000
2850
60
38
800
950*1220
3000
60
38
900
1010*1220
3000
60
38
1000
1060*1220
3150
60
51
1500
1160*1500
3350
60
51
2000
1340*1500
3410
60
51
3000
1410*2000
4000
60
51
4000
1620*2000
4250
60
51
5000
1810*2000
4300
60
51
6000
1980*2000
4550
60
51
7000
1930*2440
5000
60
51
8000
2060*2440
5000
60
51
9000
2180*2440
5050
60
51
10000
2300*2440
5050
60
51
12000
2270*3000
5600
60
51
15000
2530*3000
5700
60
51
20000
2640*3660
6400
60
51
It can be customized according to special requirements of our customers. Total height is computed according to the height (800mm) of the discharge outlet. If the height of discharge outlet is changed, total height shall be adjusted.
