Motor-driven cable reel drum is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven type and three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cables under 500V and high voltage cables for 6kv and 10kv.
Features:
1. For different power cable, such as 3x25+1x16 etc 2. Its driven by the electric motor 3. The cable reel is usually fixed on the mobile machine and works horizontally. 4. Additional turnover anchor will be provided if the power is feed centrally 5. Additional control cabinet is also equipped.
About Enquiry:
1. Do you have special requirement about the power types? Spring type / motor powered type 2. What is the cable specification? Cable core number × Cross section,Cable outer diameter,coil length of cable? 3. What kind of mobile equipment will the cable reel be applied with? Lifting electromagnet, all kinds of crane or others

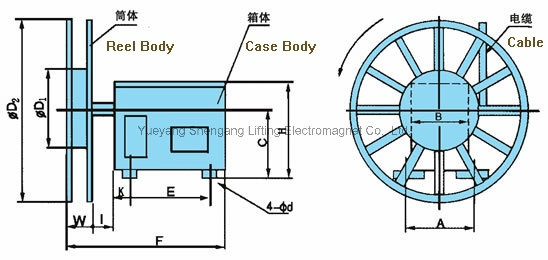

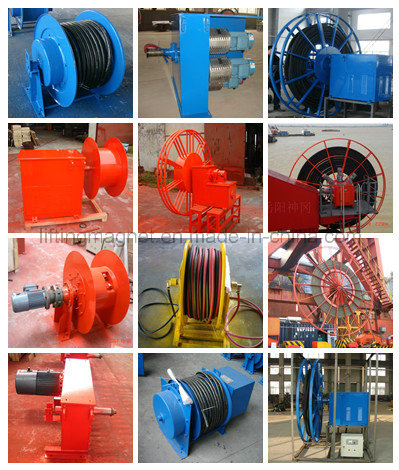

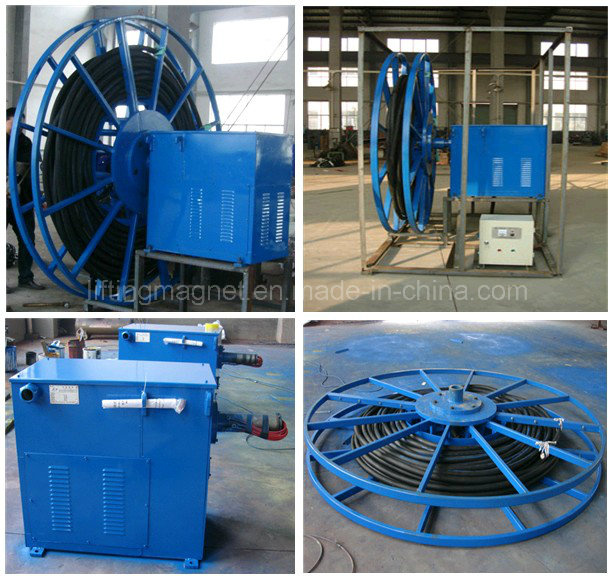

Overall dimension drawing Produtct picture
Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect.. Technical Data:
Cable Model
Enable Current(A) (40 centigrade)
50m series
Item No.
100m series
Item No.
150m series
Item No.
200m series
Item No.
Core numbers ×cross section(mm²)
continuously
1 min. on;1 min. Off
YC3×25+1×10
90
120
JDD90-100-4
3
JDD90-150-4
4
JDD90-200-4
4
YC3×35+1×10
110
150
JDD110-100-4
3
JDD110-150-4
4
JDD110-200-4
4
YC3×50+1×16
140
180
JDD140-50-4
1
JDD140-100-4
3
JDD140-150-4
4
JDD140-200-4
5
YC3×70+1×25
180
220
JDD180-50-4
1
JDD180-100-4
3
JDD180-150-4
4
JDD180-200-4
5
YC3×95+1×35
210
270
JDD210-50-4
2
JDD210-100-4
4
JDD210-150-4
5
JDD210-200-4
6
YC3×120+1×35
250
320
JDD250-50-4
2
JDD250-100-4
4
JDD250-150-4
5
JDD250-200-4
6
Overall dimension table(mm)
Item No.
A
B
C
D1
D2
d
E
F
H
I
K
W
Mass (kg)
1
665
575
720
1000
1800
26
750
1450
900
80
60
180
830
2
665
575
720
1000
2000
26
750
1450
900
80
60
180
840
3
665
575
720
1000
2200
26
750
1450
900
80
60
180
860
4
665
575
720
1200
2500
26
750
1450
900
80
60
220
930
5
665
575
720
1300
2800
26
750
1450
900
80
60
220
980
6
665
575
720
1500
3200
26
750
1450
900
80
60
220
1000
