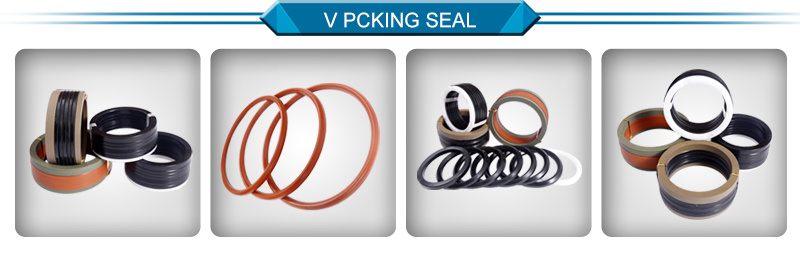

Sealing of piston and piston rod in reciprocating exceeding high pressure hydraulic oil cylinder
Scope
Hydraulic oil cylinders of metallurgical, mines and general equipment
Delivery time
3 days for having stock, it depend on the customer order quantity when no stock.
Operating conditions 1)Pressure: 0-40 MPa; 2)Temperature: -35~+200°C 3)Speed: below 0.5 m/s; 4)Medium: hydraulic oil,emulsion and water Description Product group: Piston seal Design: DS V-packing set Profile no.: 01 Specification: E suitable for one-sided pressure load Model: 1/0 combination of fabric and elastomer ring Seal material: NBR fabric NBR F 90 3005 Support ring: NBR fabric Pressure ring: POM Operational application limits Pressure (MPa): ≤ 40 Temperature (°C): -30 to +100 Running speed (m/s): ≤ 0.5
Media Hydraulic oils acc. to DIN 51524 Part 1 - 3, lubricating oils, mineral oil based lubricating greases, highly non-flammable hydraulic fluids HFA, HFB, HFC acc. to VDMA 24317

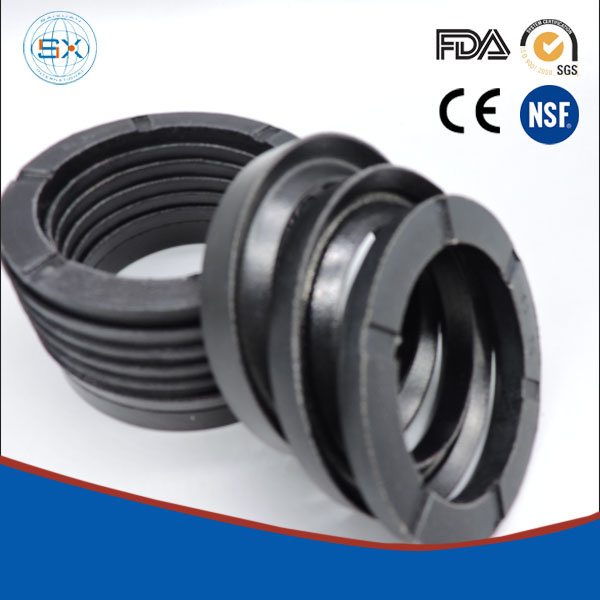

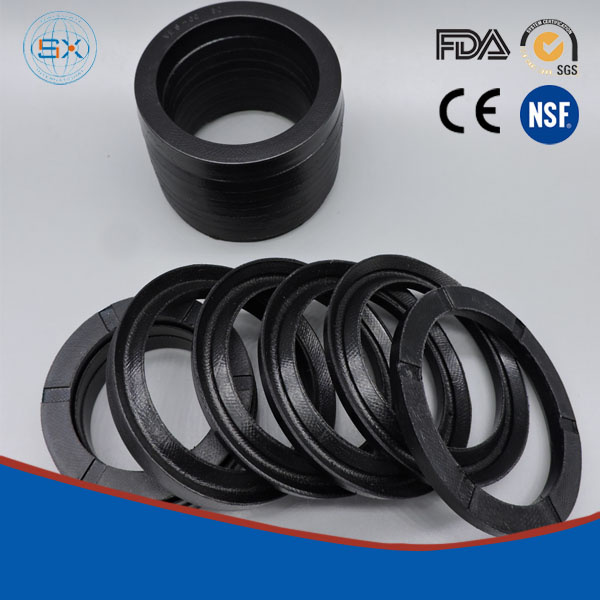

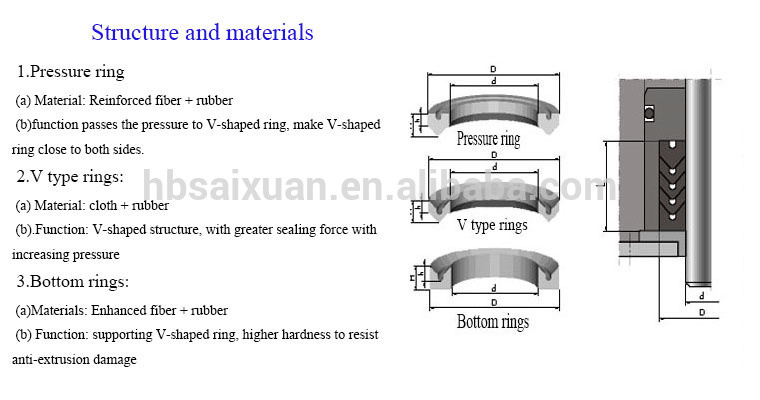

Function The V-packing set KDS 01 1/0 is a sealing system with one V-packing made of NBR fabric. The combination KDS 01 is a sealing system which is pressure supported and attains very low leakage rates.
Installation The installation must be done in open installation housings, i.e. the piston must be split so that the sealing sets can be installed deformation-free. The elements are always installed separately in the seal housing. For applications in double acting cylinders, it is important that the V-packing sets have axial space (L>H).
Remarks For piston sealing, the combination 1/0 is used as a V-packing set, as a rule. If required, all other combinations are possible. For special applications, individual V-packings can be supplied made of different materials e.g. the support rings made of a PTFE-Bronze compound.
Application Chemistry Pharmaceuticals Measuring and control systems General mechanical engineering Foodstuffs industry Iron and steel industry Automotive Filling Machinery Mining machinery Industrial, mechanical, special purpose
