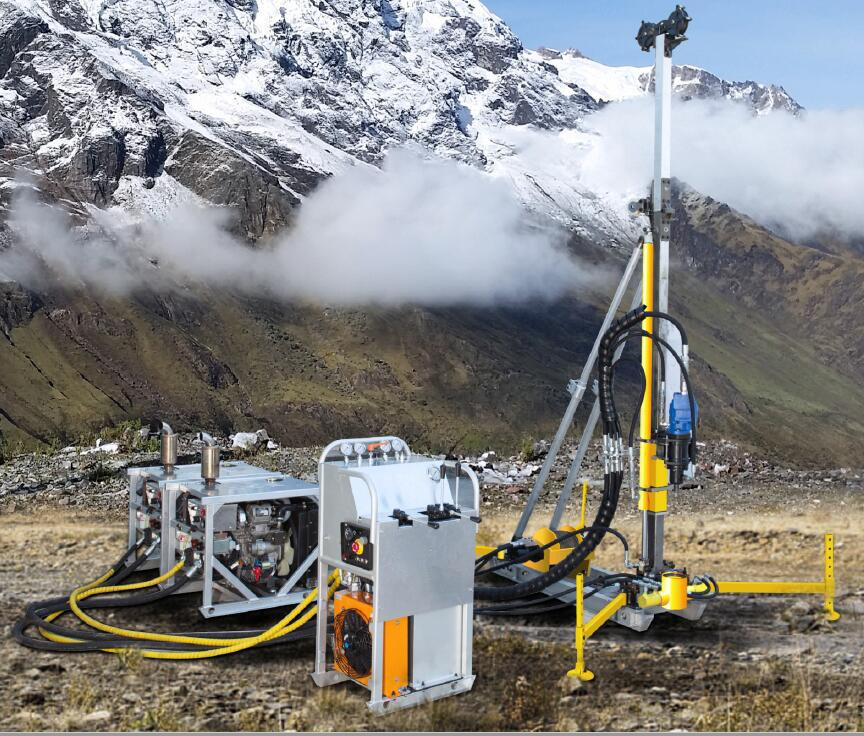

Hydraulic Core Drilling Machine for Mineral Exploration
Field of Application:

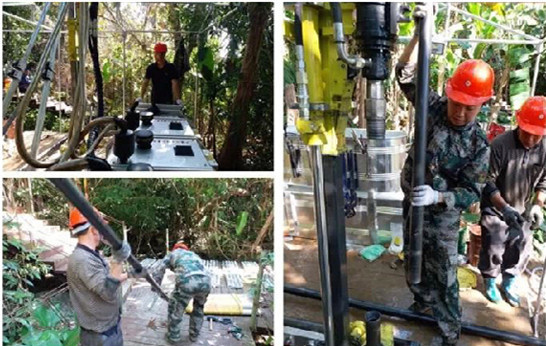

JEP200 is widely used in mineral exploration, infrastructure construction ( i.e railway, rod and bridge .etc), hydraulic and hydropower project, tunnel exploration and geological investigation. It works particularly well in areas with complex geological characteristics such as mountainous region, forest and plateau. It is the ideal drilling rig when operating in hard to access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.
Highlights:

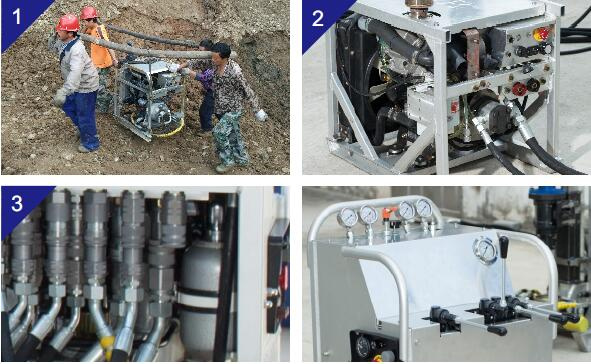

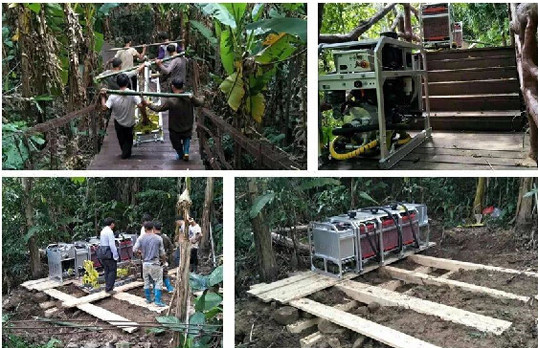

Lightweight design with the heaviest module weighing only 176kg.can be carried be four persons. Kubota engine with Kubota's international warranty service. Self-developed hydraulic valve bloc Drill frame of mast type - Drilling from an angle of 45°to 90°, no tower is needed. Light weight - 90% of the machine framework made of high-strength aluminum ally materials. Fast transportation - No need for road and infrastructure construction Fast relocation - Only 2 hours required to be ready for the next hole. Fast penetration - 3times higher than vertical rig with a max. daily penetration of 150 meters and an average daily penetration of 70 meters.
Reliable All key parts are from the global leading brands, powerful, stable and reliable. Integrated hydraulic system with no worries of leakage and malfunction. Unique mud system and special mud materials to increase drilling efficiency and reduce accidents.
Technical Data
Drilling depth capacity
HQ/NTW/BTW
30/100/200m
Hole Diameter
Rod Length 1.0m
96/75.7/60mm

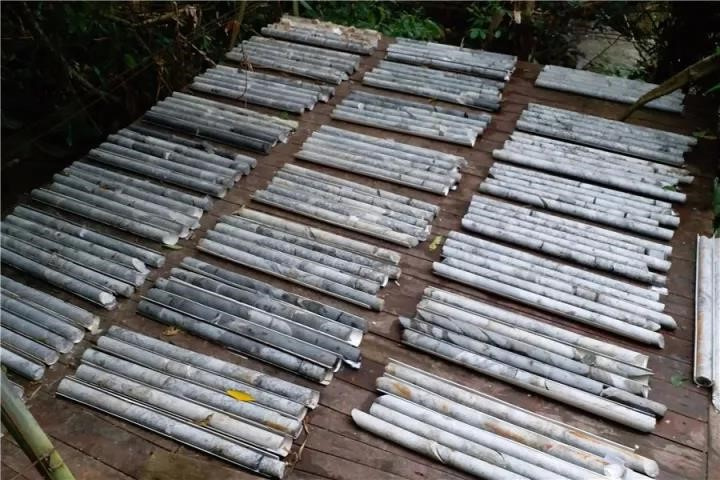

Core Diameter
63.5/56/42mm
Power engine
KUBOTA D1105.T, 23.5KW/3000RPM
Hydraulic system
American Parker valve,water cooler
Maximum pressure 20Mpa/max,Maxium flow 54L/min
Top drive rotation head
Maximum torque
400N.m
Maximum rotation speed
1300rpm
Feed travel
1.27m
Pull/Thrust
33KN/24KN(Single cylinder)
Winch
Average speed
150m/min
Lift
600kg
Were Diameter
5mm
Were accommodation
240m
Mast
Height of the mast on 90 degree
3.8m
Drilling angle
45º-90º(standard )
0º-90º(option )
Size and weight
Platform area/Module quantity
2.5m×2.5m/4 piece
Gross/Maximum module
176kg/513kg
