Prod Model: |
HZ335 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Concrete, Stone |
Technology: |
Silver Welding |
Export: |
Global |
Product Description

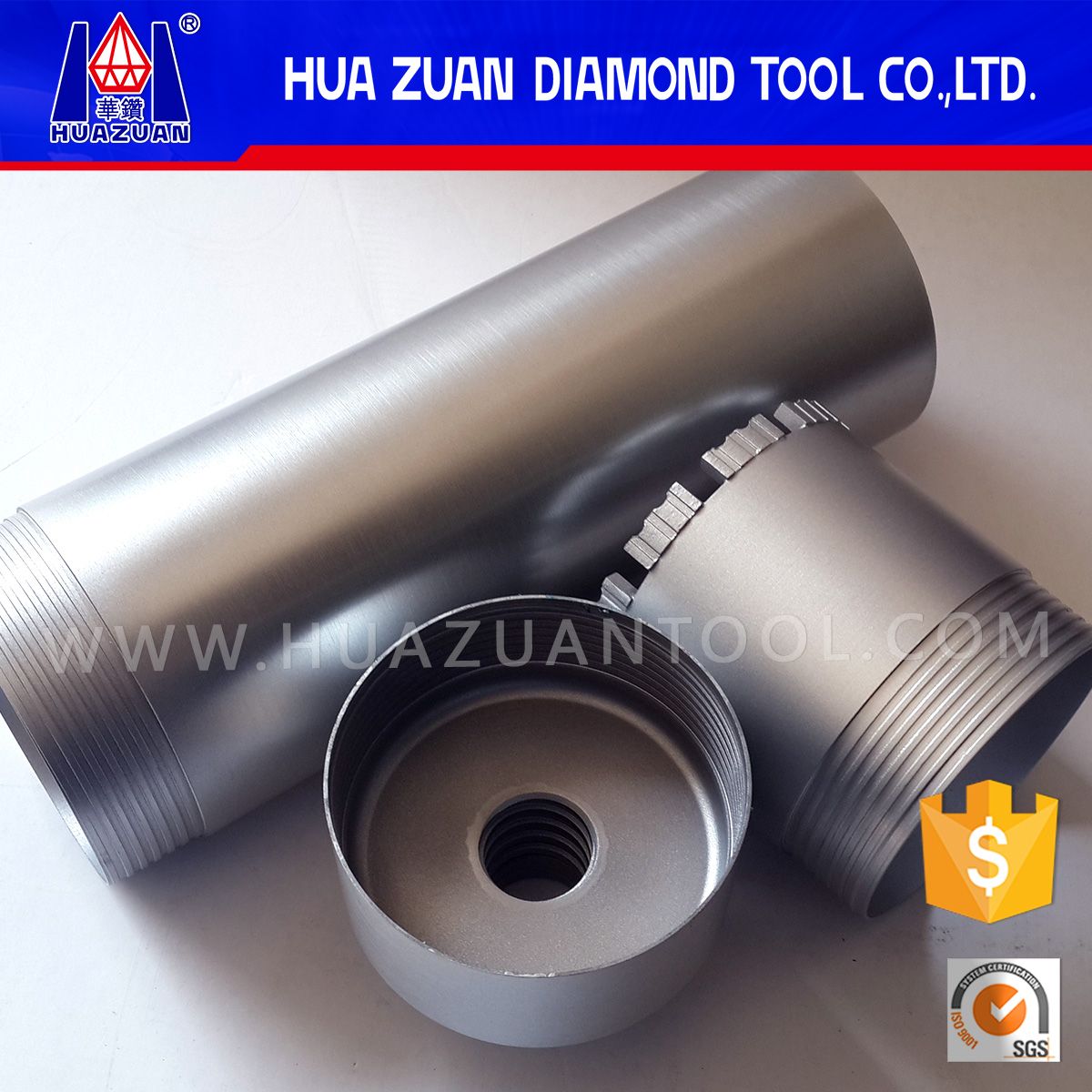

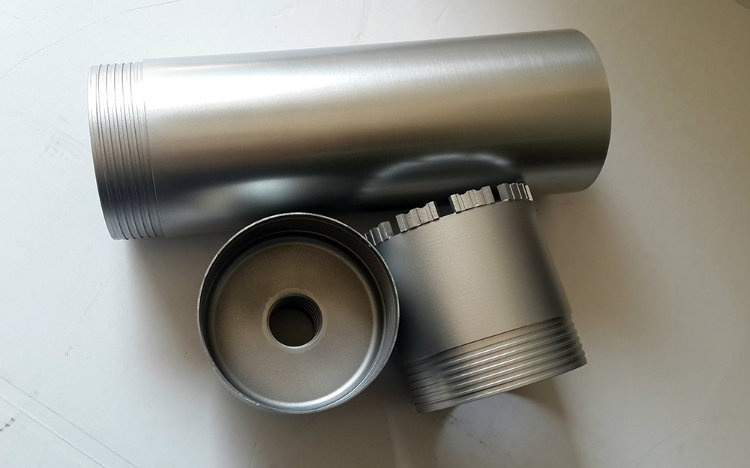

Huazuan 3 parts reinforced concrete diamond core drill bitFeatures of core drill:
Sharp segment,
Fast drilling speed long service life, high safety.
Description of diamond core drill bit:Brand | Huazuan or OEM |
Types | Core drill bit |
Compose | Segment + core bit matrix |
Diameter | 1-20" |
Working length | 120,160,370,450mm,other length is available upon request. |
Thread | 1 1/4-7;5/8-11,M14,m16,m22,other thread is available upon request. |

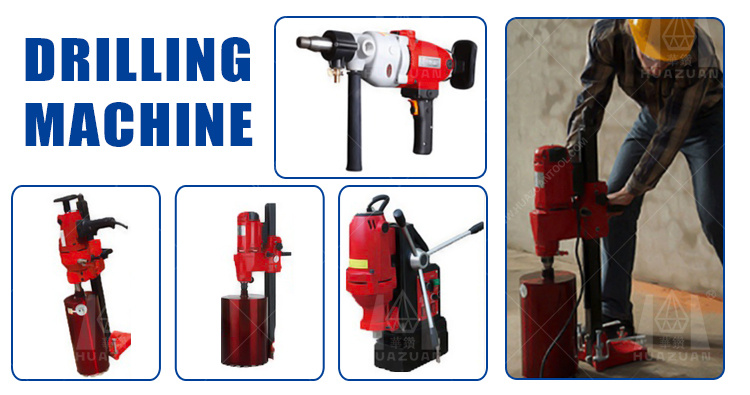

Machine | Drilling machine |
Application | Drilling reinforced concrete, natural stones, bricks, blocks & Rock |
Quality Control | 1. Strict Raw material inspection 2. Professional formula 3. Production process control(PDCA+7S Principle) 4. Do some cutting testing to sure the using function 5. Products pass ISO9001 and SGS inspection |
MOQ | 8PCS for each size |
Payment term | TT,Western union,Paypal etc |
Package | As customers' requirement. |
Delivery | 7-10 days after receiving the payment. |
Certification | ISO9001 and SGS Product quality control. |
Main market | India,Iran,Turkey,Spain,Italy,Germany,England,USA,Canada,Egypt etc. |
The specification of diamond core bitDiameter(mm) | Length(mm) | Seg.Thickness | Seg.Height | Thread cap |
27 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
30 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
32 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
36 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
38 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
40 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
44 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
46 | 120/160/370/450 | 3.8 | 8/10 | 5/8"-11 |
51 | 120/160/370/450 | 3.8 | 8/10 | 11/4"-7 |
56 | 120/160/370/450 | 3.8 | 8/10 | 11/4"-7 |
63 | 120/160/370/450 | 3.8 | 8/10 | 11/4"-7 |
66 | 120/160/370/450 | 3.8 | 8/10 | 11/4"-7 |
71 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
76 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
83 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
89 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
96 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
102 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
108 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
114 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
120 | 120/160/370/450 | 4.0 | 8/10 | 11/4"-7 |
127 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
132 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
152 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
159 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
168 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
180 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
200 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
230 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |
250 | 120/160/370/450 | 4.5 | 8/10 | 11/4"-7 |

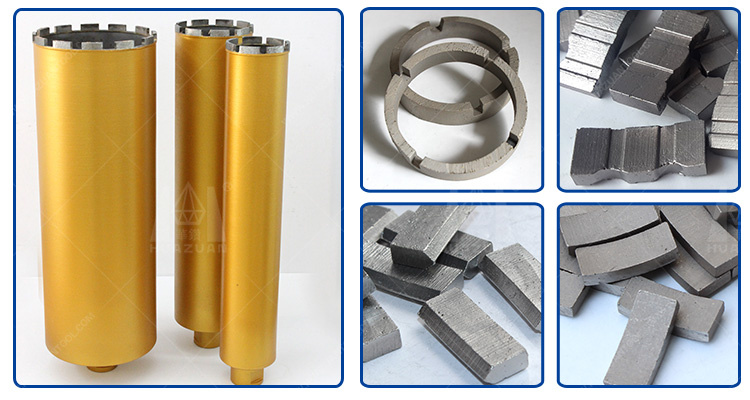

Different type of diamond segments for core bit: Diamond Segments- All our diamond segments have well designed bond systems combined with high concentrations of top quality synthetic diamonds to provide trouble-free drilling through a variety of applications
- Segments type:1)crown type; 2) turbo type; 3)roof type 4)straight type for you choose.
Steel Barrel
- All our barrels are made using top quality steel and are guaranteed to run true
For diameters 10mm to 38mm we use high quality 10mm high quality crown (ring) diamond segments - This helps for an easy start-up when hand held drilling.For diameters 40mm to 500mm we use high quality 10mm high diamond segments with castellated tips to insure an easy start-up and fast opening of the segment.Usually customers will choosing the thread of 1-1/4-7.Application of reinforced concrete diamond core bit Huazuan diamond tools Introduction: Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production."HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.Contact Us:Fujian Quanzhou Huazuan Diamond Tools Co., ltd.Address:Miaoxia, Fengzhou, Nanan, Quanzhou, Fujian province, China 362333Mr. Dane
