Shank Type:
Weldon Shank
Shank Diameter:
19.05mm
Packaging Details:

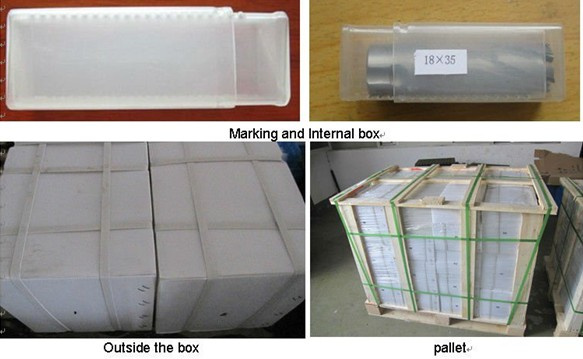

Plastic Box
Surface Treatment:
All-Ground
Product Description

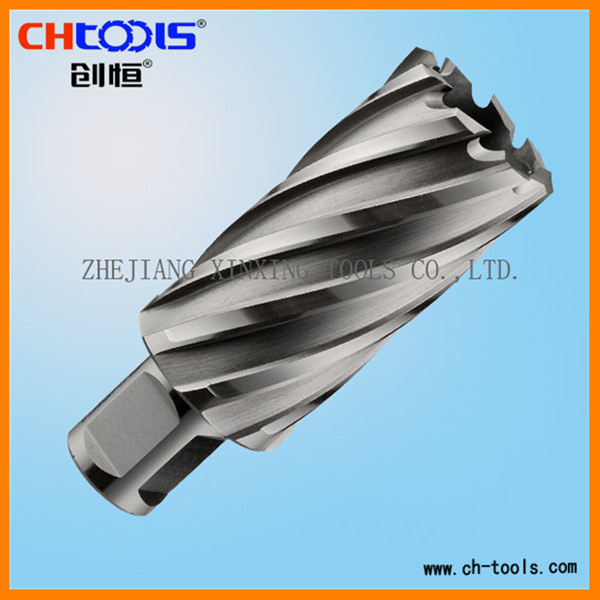

HSS Weldon Shank Magnetic Drill (DNHX)
1. HSS hole cutter, Weldon shank, with more stable clamping for stable cutting and finish of holes.
2. Additional one hole on the shank of cutters ≤ Φ 40mm, fit arbors with 19.05 bore as well as quick-change system.
3. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Hougen, Jancy, Euroboor, BDS, Ruko.
4. Made of high-performance high speed steel., e. G. M2, M2AL, M35, M42 etc. And can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic.
5. The specifications from the Φ 12mm to Φ 65mm, depth of cut from25mm, 35mm, 50mm, 75mm and 100mm.
6. Special multi-cut geometry with ply-cutting and lower friction to reach better performance of endurance and removal of chips. So its life is lengthened. It is stable made and can cut with high speed, and make the surface of materials smooth. It has exact diameter and can use after regrinding.
7. TiN or TiAIN coating are available upon request.
8. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.
Type
Size(mm)
DNHX-40120
12*50
DNHX-40130
13*50
DNHX-40140
14*50
DNHX-40150
15*50
DNHX-40160
16*50
DNHX-40170
17*50
DNHX-40180
18*50
DNHX-40190
19*50
DNHX-40200
20*50
DNHX-40210
21*50
DNHX-40220
22*50
DNHX-40230
23*50
DNHX-40240
24*50
DNHX-40250
25*50
DNHX-40260
26*50
DNHX-40270
27*50
DNHX-40280
28*50
DNHX-40290
29*50
DNHX-40300
30*50
DNHX-40310
31*50
DNHX-40320
32*50
DNHX-40330
33*50
DNHX-40340
34*50
DNHX-40350
35*50
DNHX-40360
36*50
DNHX-40370
37*50
DNHX-40380
38*50
DNHX-40390
39*50
DNHX-40400
40*50
DNHX-40410
41*50
DNHX-40420
42*50
DNHX-40430
43*50
DNHX-40440
44*50
DNHX-40450
45*50
DNHX-40460
46*50
DNHX-40470
47*50
DNHX-40480
48*50
DNHX-40490
49*50
DNHX-40500
50*50
DNHX-40510
51*50
DNHX-40520
52*50
DNHX-40530
53*50
DNHX-40540
54*50
DNHX-40550
55*50
DNHX-40560
56*50
DNHX-40570
57*50
DNHX-40580
58*50
DNHX-40590
59*50
DNHX-40600
60*50
Zhejiang Xinxing Tools Co., Ltd. Established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. It is the worldwide leader in annular cutter industry.

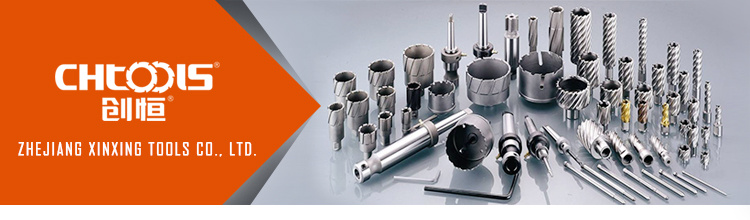

Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drill machine, diamond drilling bit, deep hole drill, etc.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001: 2008 quality control system under operation strictly, and ensure unified high standard quality requirements. Staying with hardwork and perseverance, CHTOOLS Brand has been created and widely acknowledged resulting from the valuable trust of all esteemed customers.

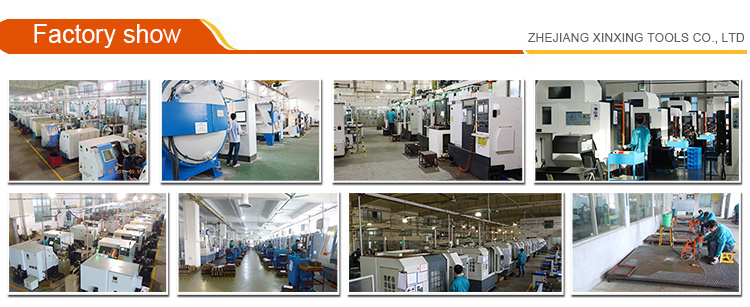

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory. We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.
For 25 years, the company has won over one hundred honors successively.
In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
