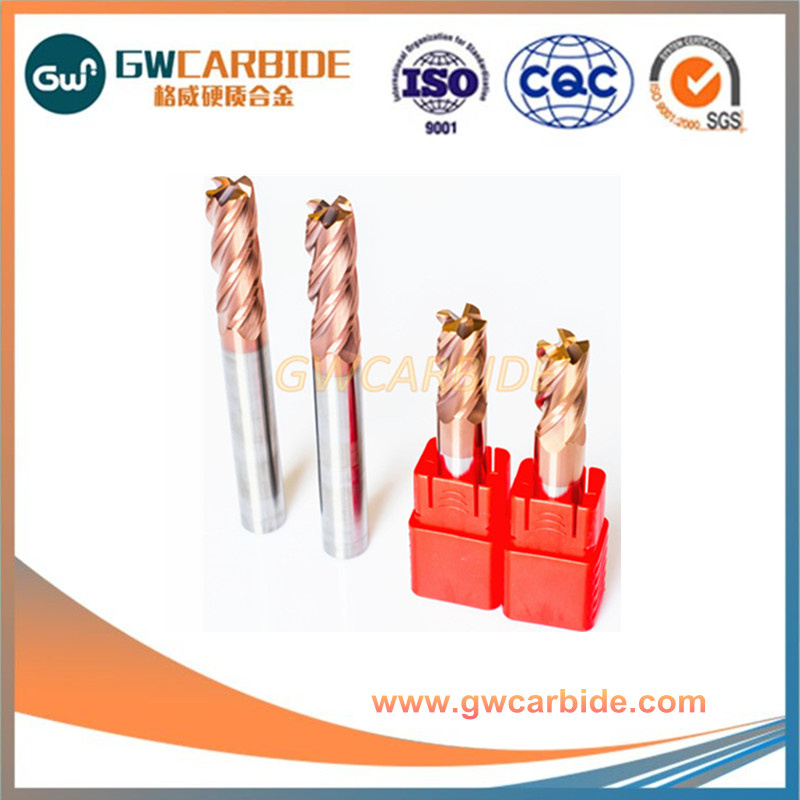

HRC60 Solid Carbide 4 Flutes Flat Ball Nose End Mill

Name: HRC60 Solid Carbide 4 Flutes Flat Ball Nose End Mill
Brand: tool-buy.com
SKU: 810062815
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 1.2-8.5pcs
Min Order:	1pcs
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	1.0x3x50, 1.5x4x50, 2.0x6x50, 2.5x8x50, 3.0x8x50
Cutting Form:	Flat, Ball Nose, Corner Radius, Roughing
Flutes Number:	2, 3, 4, 5, 6
Package:	1 PCS in a Plastic Tube, 10 PCS Per Group
Work Piece:	HRC 45, 50, 60, 65
Delivery Time:	7-10 Days
Coating:	Tisin, Tialn, Altin, Ticn, Blue Nano
Length:	50mm-150mm,Customized
Shipment:	FedEx,DHL,TNT,UPS,EMS,etc.
HRC:	45-55 55-65,etc
Coating Opitional:	Altin,Tialn,Tisin,Naco,Diamond

Product Description

2 flutes Flat End Mill

HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

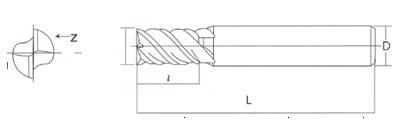

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
2GW1-01002050	1	3	50	4	2
2GW1-01504050	1.5	4	50	4	2
2GW1-02050500	2	5	50	4	2
2GW1-02507050	2.5	7	50	4	2
2GW1-03008050	3	8	50	4	2
2GW1-04010050	4	10	50	4	2
2GW1-04015075	4	15	75	4	2
2GW1-04020100	4	20	100	4	2
2GW1-05012050	5	13	50	6	2
2GW1-06015050	6	15	50	6	2
2GW1-06020075	6	20	75	6	2
2GW1-06020100	6	30	100	6	2
2GW1-06020060	8	20	60	8	2
2GW1-08025075	8	25	75	8	2
2GW1-08025100	8	35	100	8	2
2GW1-010025075	10	25	75	10	2
2GW1-010040100	10	40	100	10	2
2GW1-012020075	12	30	75	12	2
2GW1-012040100	12	40	100	12	2
2GW1-014020080	14	30	80	14	2
2GW1-014100100	14	40	100	14	2
2GW1-016040100	16	40	100	16	2
2GW1-018040100	18	40	100	18	2
2GW1-020040100	20	40	100	20	2
2GW1-06040150	6	40	150	6	2
2GW1-08050150	8	50	150	8	2
2GW1-010050150	10	50	150	10	2
2GW1-012050150	12	50	150	12	2
2GW1-014060150	14	60	150	14	2
2GW1-016060150	16	60	150	16	2
2GW1-018060150	18	60	150	18	2
2GW1-020060150	20	60	150	20	2

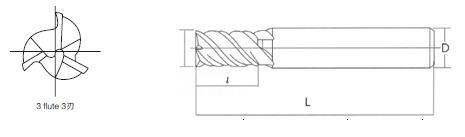

3 flutes Flat End Mill

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
3GW1-01003050	1	3	50	4	3
3GW1-01504050	1.5	4	50	4	3
3GW1-02050500	2	5	50	4	3
3GW1-02507050	2.5	7	50	4	3
3GW1-03008050	3	8	50	4	3
3GW1-04010050	4	10	50	4	3
3GW1-04015075	4	15	75	4	3
3GW1-04020100	4	20	100	4	3
3GW1-05013050	5	13	50	6	3
3GW1-06015050	6	15	50	6	3
3GW1-06020075	6	20	75	6	3
3GW1-06030100	6	30	100	6	3
3GW1-06020060	8	20	60	8	3
3GW1-08025075	8	25	75	8	3
3GW1-08035100	8	35	100	8	3
3GW1-010025075	10	25	75	10	3
3GW1-010040100	10	40	100	10	3
3GW1-012030075	12	30	75	12	3
3GW1-012040100	12	40	100	12	3
3GW1-014030080	14	30	80	14	3
3GW1-014100100	14	40	100	14	3
3GW1-016040100	16	40	100	16	3
3GW1-018040100	18	40	100	18	3
3GW1-020040100	20	40	100	20	3
3GW1-06040150	6	40	150	6	3
3GW1-08050150	8	50	150	8	3
3GW1-010050150	10	50	150	10	3
3GW1-012050150	12	50	150	12	3
3GW1-014060150	14	60	150	14	3
3GW1-016060150	16	60	150	16	3
3GW1-018060150	18	60	150	18	3
3GW1-020060150	20	60	150	20	3

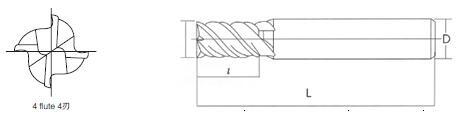

4 flutes Flat End Mill

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
4GW1-01003050	1	3	50	4	4
4GW1-01504050	1.5	4	50	4	4
4GW1-02050500	2	5	50	4	4
4GW1-02507050	2.5	7	50	4	4
4GW1-03008050	3	8	50	4	4
4GW1-04010050	4	10	50	4	4
4GW1-04015075	4	15	75	4	4
4GW1-04020100	4	20	100	4	4
4GW1-05013050	5	13	50	6	4
4GW1-06015050	6	15	50	6	4
4GW1-06020075	6	20	75	6	4
4GW1-06030100	6	30	100	6	4
4GW1-06020060	8	20	60	8	4
4GW1-08025075	8	25	75	8	4
4GW1-08035100	8	35	100	8	4
4GW1-010025075	10	25	75	10	4
4GW1-010040100	10	40	100	10	4
4GW1-012030075	12	30	75	12	4
4GW1-012040100	12	40	100	12	4
4GW1-014030080	14	30	80	14	4
4GW1-014100100	14	40	100	14	4
4GW1-016040100	16	40	100	16	4
4GW1-018040100	18	40	100	18	4
4GW1-020040100	20	40	100	20	4
4GW1-06040150	6	40	150	6	4
4GW1-08050150	8	50	150	8	4
4GW1-010050150	10	50	150	10	4
4GW1-012050150	12	50	150	12	4
4GW1-014060150	14	60	150	14	4
4GW1-016060150	16	60	150	16	4
4GW1-018060150	18	60	150	18	4
4GW1-020060150	20	60	150	20	4

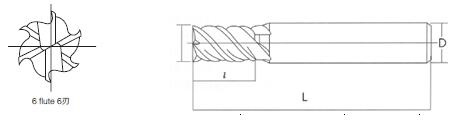

6 flutes Flat End Mill

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
6GW1-06016050	6	16	50	6	6
6GW1-06025075	6	25	75	6	6
6GW1-06036100	6	36	100	6	6
6GW1-0802060	8	20	60	8	6
6GW1-08032075	8	32	75	8	6
6GW1-08042100	8	42	100	8	6
6GW1-10025075	10	25	75	10	6
6GW1-10042100	10	42	100	10	6
6GW1-012030075	12	30	75	12	6
6GW1-012042100	12	42	100	12	6
6GW1-012055155	12	55	155	12	6
6GW1-014040100	14	40	100	14	6
6GW1-014065150	14	65	150	14	6
6GW1-016040100	16	40	100	16	6
6GW1-016065150	16	65	150	16	6
6GW1-020045100	20	45	100	20	6
6GW1-020070150	20	70	150	20	6
